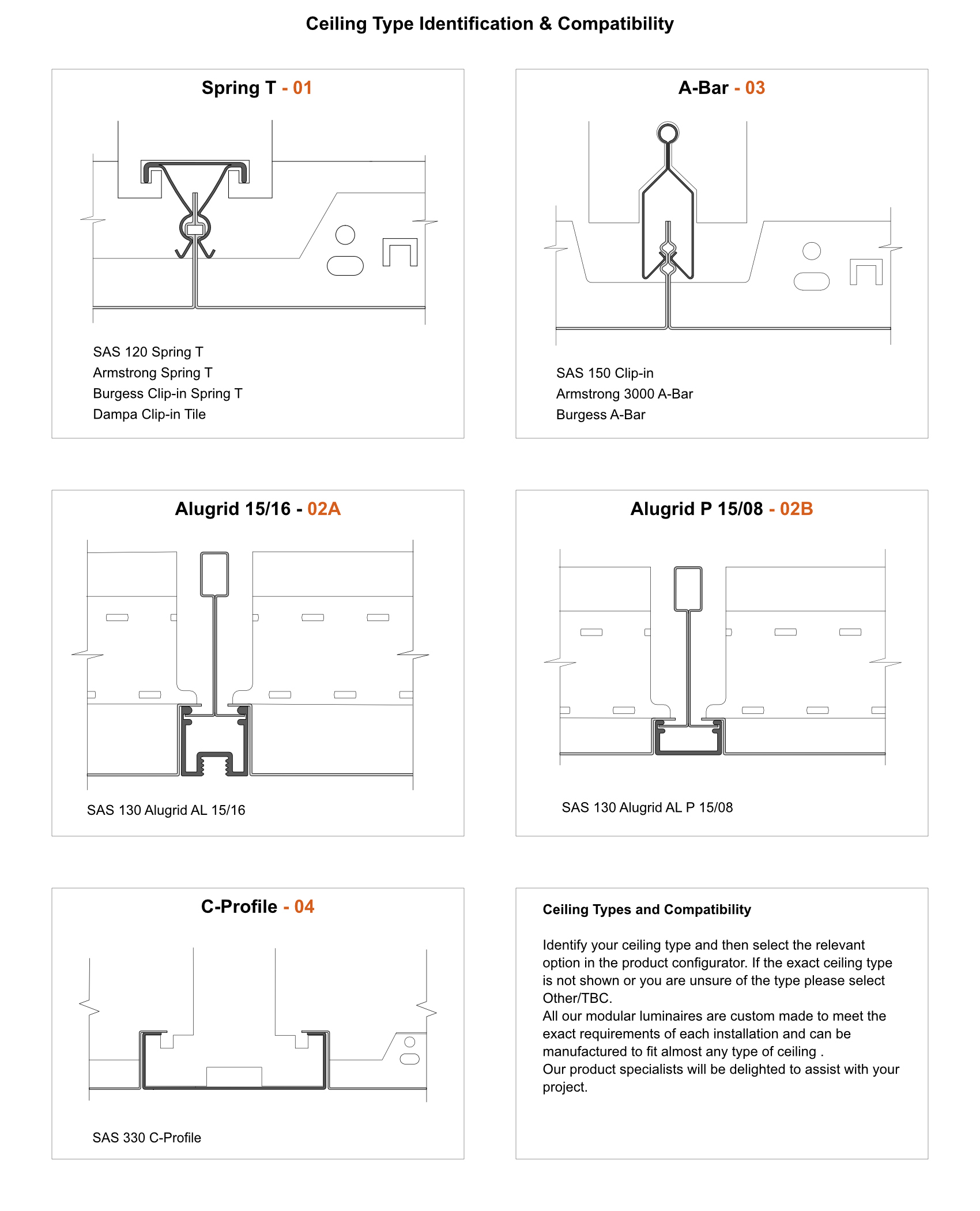

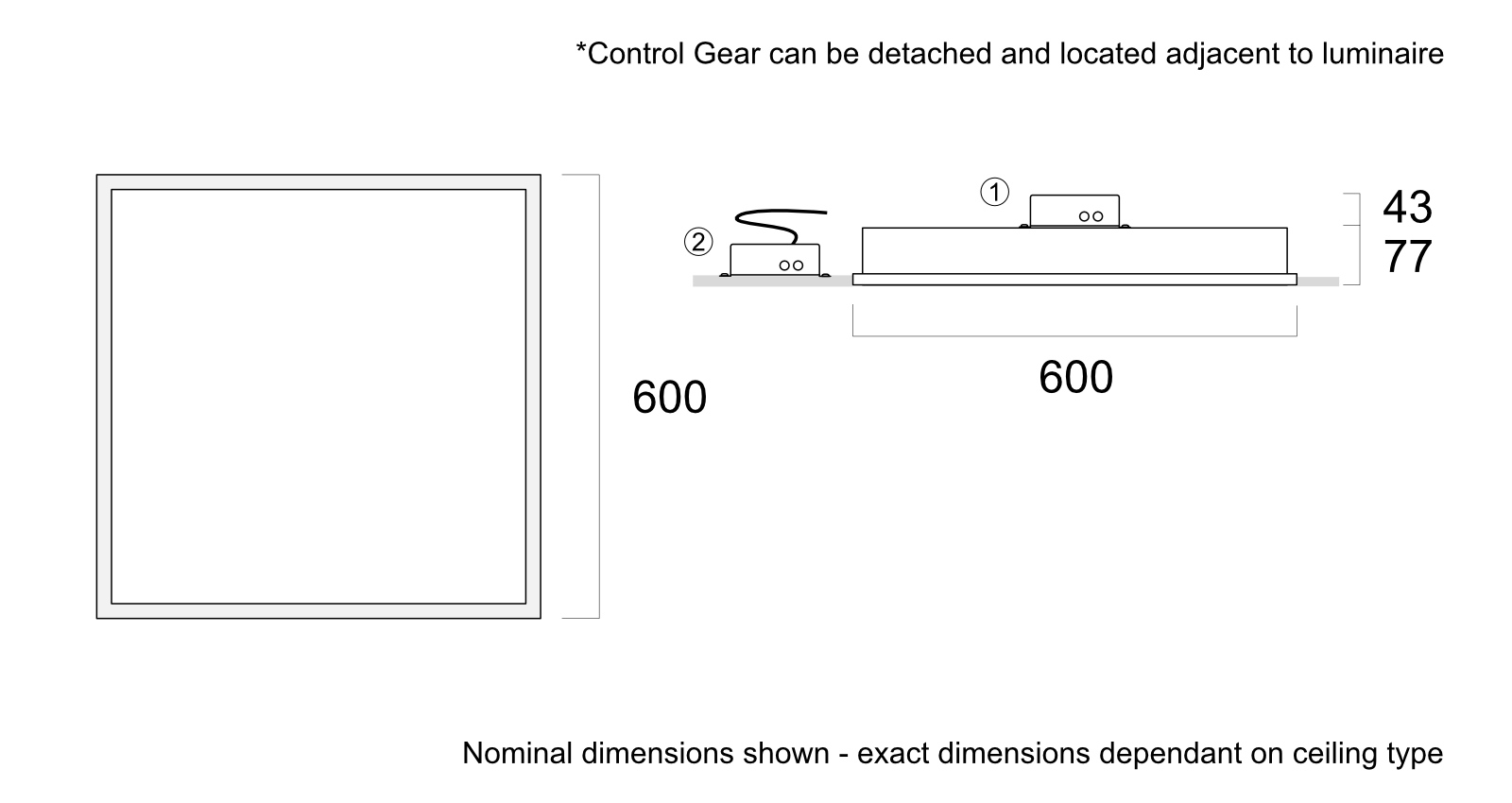

Note Microprism recessed modular luminaire with advanced multilayer microprism diffuser offering high lumen output combined with UGR<19 glare control. The latest Tridonic LED technology ensures optimum energy efficiency. The luminaire can be manufactured to fit almost all metal pan and exposed grid ceiling types. Supplied with a prewired detachable gearbox which can be placed adjacent to the fitting in restricted height ceiling voids. Available with a 3 hour emergency back up option. Air handling facility is also available upon request.
| Version | NTM1-23- NTM1-29- NTM1-35- |
| Nominal power (W) | 23 29 35 |
| LED type | Tridonic QLE ADV5 |
| Colour temperature | 3000K, 4000K |
| Colour rendering index | Ra>80 |
| Colour consistency | 3-step Macadam |
| Rated service life | >72,000h L80/F10 at 60° Max. |
| Glare rating | UGR<19 |
| Optic | Multi-layer Microprism |
| Control gear | Integral |
| IP Rating | IP40 |
| Weight (Kg) | 6.5 |
Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us
