E22
E22

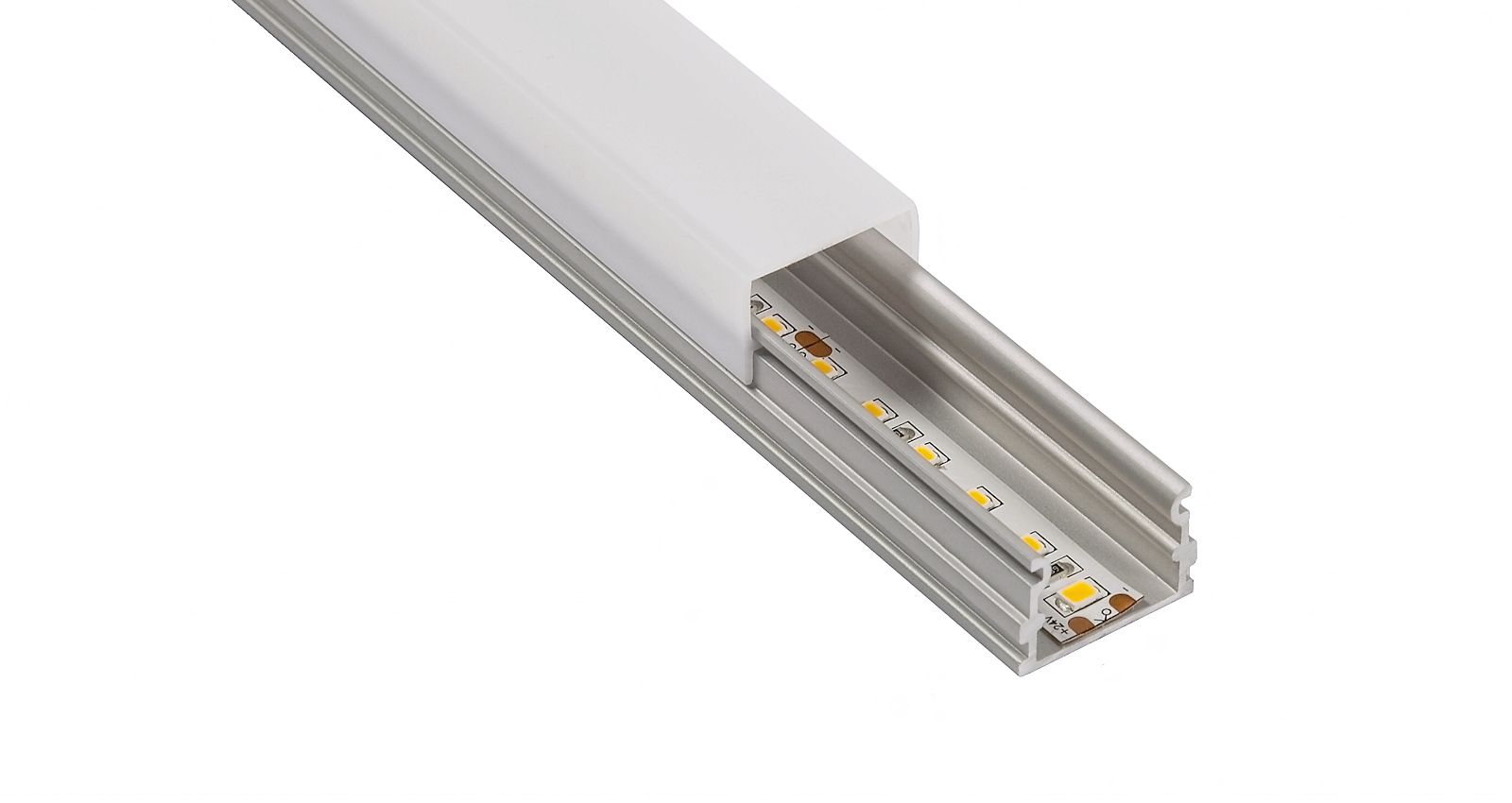

Linear aluminium LED extrusion suitable for surface mounting, offered in 3 light output levels. The aluminium extrusion acts as a heat sink maximising performance and life of the LED strip. An opal wrap around diffuser produces a wide distribution and ensures constant illumination without spotting or shadow lines. Supplied with remote control gear.
- up to 1243 lumen/m output
- continuous wide light distribution
- Samsung single bin chip
- 4 oz PCB for optimum heat distribution
- phase, 1-10V or Dali Dimmable
![[icon]](filestore/icontemplates/000039.png?1735216440)
![[icon]](filestore/icontemplates/000004.png?1735216440)
![[icon]](filestore/icontemplates/000048.png?1735216440)
![[icon]](filestore/icontemplates/000009.png?1735216440)
![[icon]](filestore/icontemplates/000006.png?1735216440)
![[icon]](filestore/icontemplates/000018.png?1735216440)
![[icon]](filestore/icontemplates/000015.png?1735216440)
![[icon]](filestore/icontemplates/000021.png?1735216440)
![[icon]](filestore/icontemplates/000052.png?1735216440)
![[image]](./views/frontend/resources/images/pdf-1.png)
![[product thumbnail]](filestore/product_captionimg/000051.jpg?1735216440)
![[product thumbnail]](filestore/product_captionimg/000052.jpg?1735216440)
![[product thumbnail]](filestore/product_captionimg/000049.jpg?1735216440)
![[product thumbnail]](filestore/product_captionimg/000050.jpg?1735216440)
E22

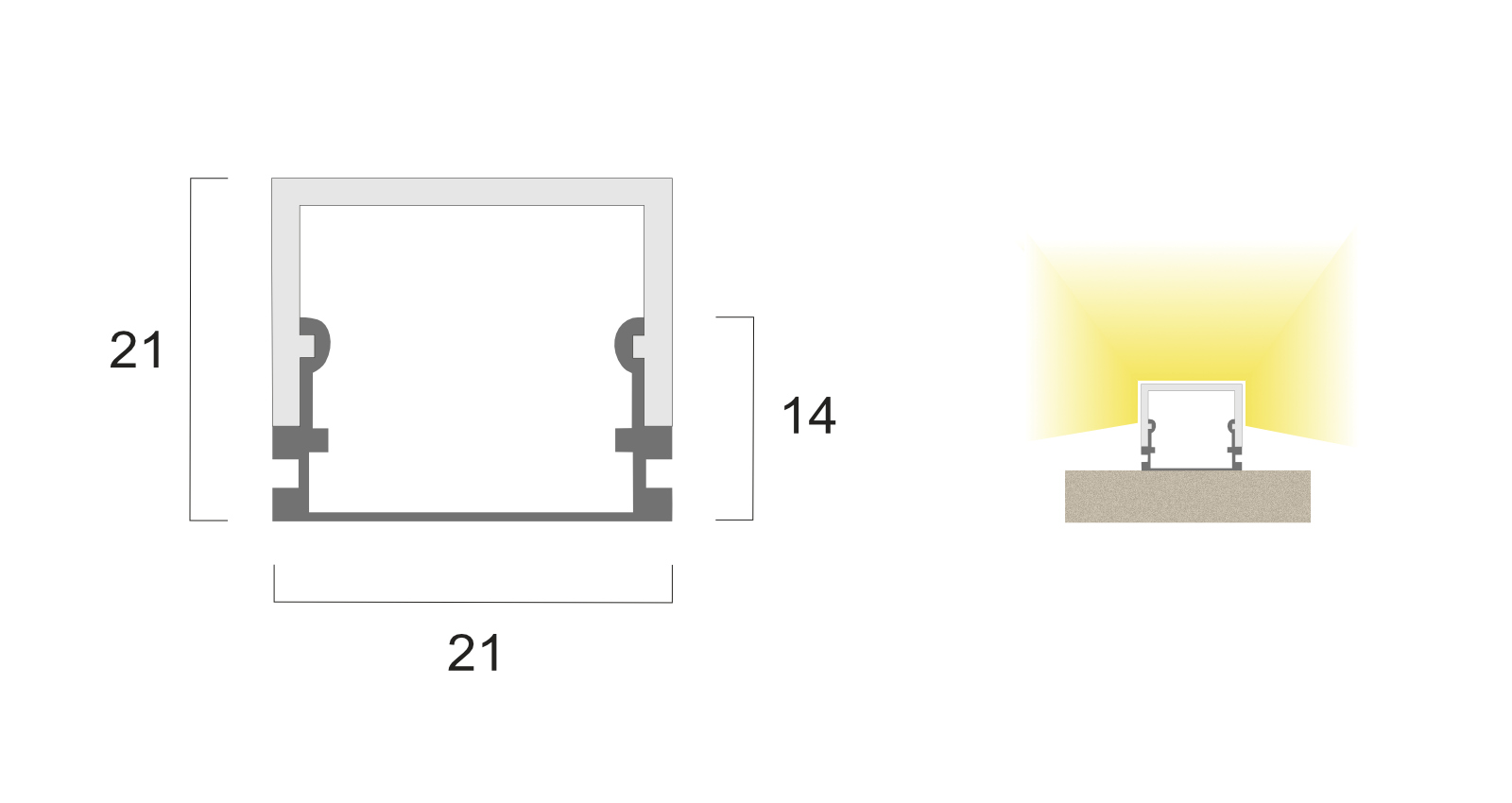

![[dimension drawing option]](filestore/product_dimensionsimg/000065/E22-DIM-01.jpg?1735216440)
E22
Specification
| LED type | Samsung LM281B tape |
| CRI | 80+ |
| Bin code | Single bin |
| LED lifetime | 50,000hrs L70 |
| Control gear | Remote (included) |
| IP rating | IP40 |
E22
![[colour option]](filestore/colour_options/000065/E22-A.jpg?1735216440)
![[colour option]](filestore/colour_options/000065/E22-RAL.jpg?1735216440)
E22
Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us
