E37 Trimless

E37 Trimless

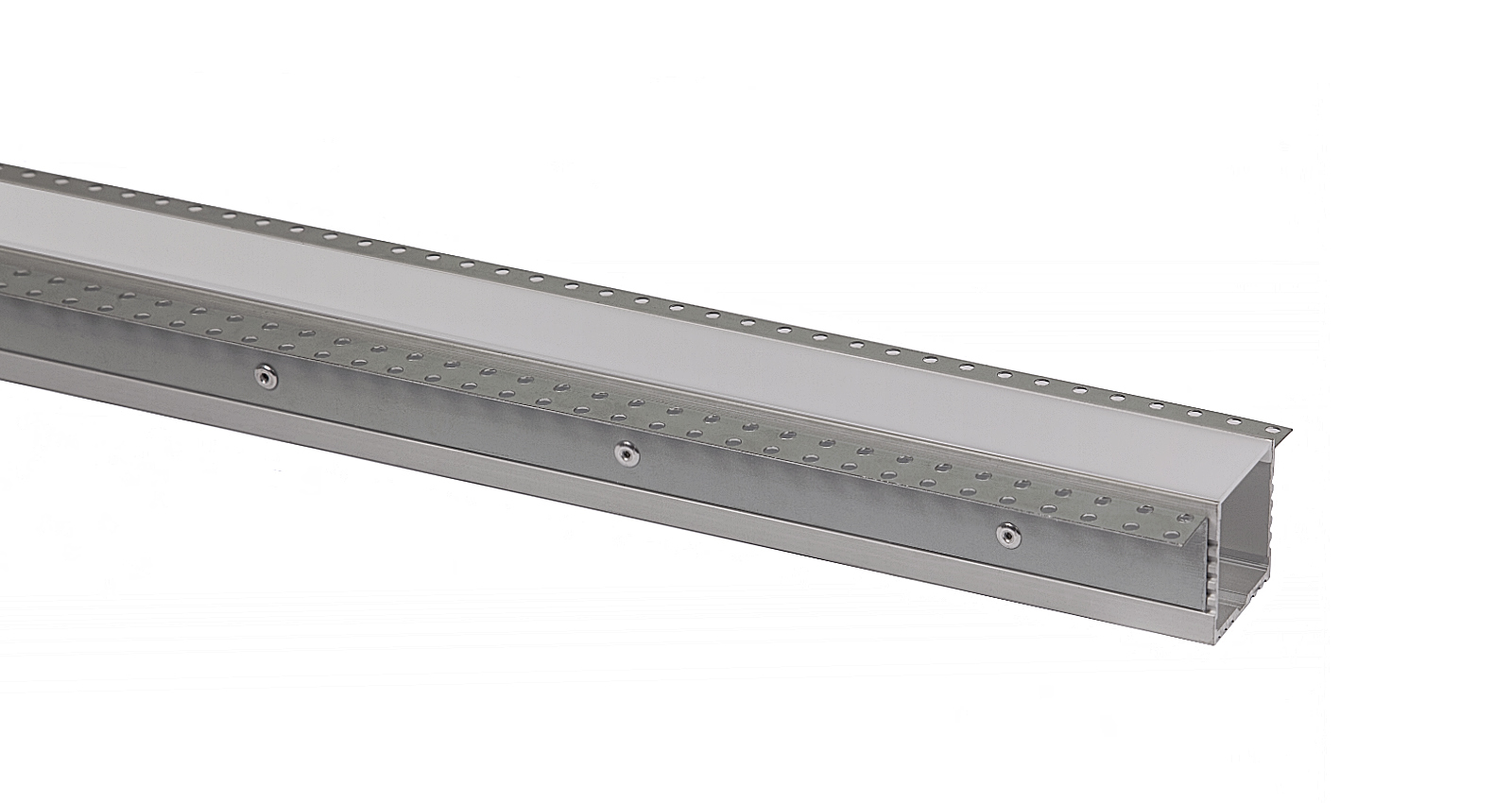

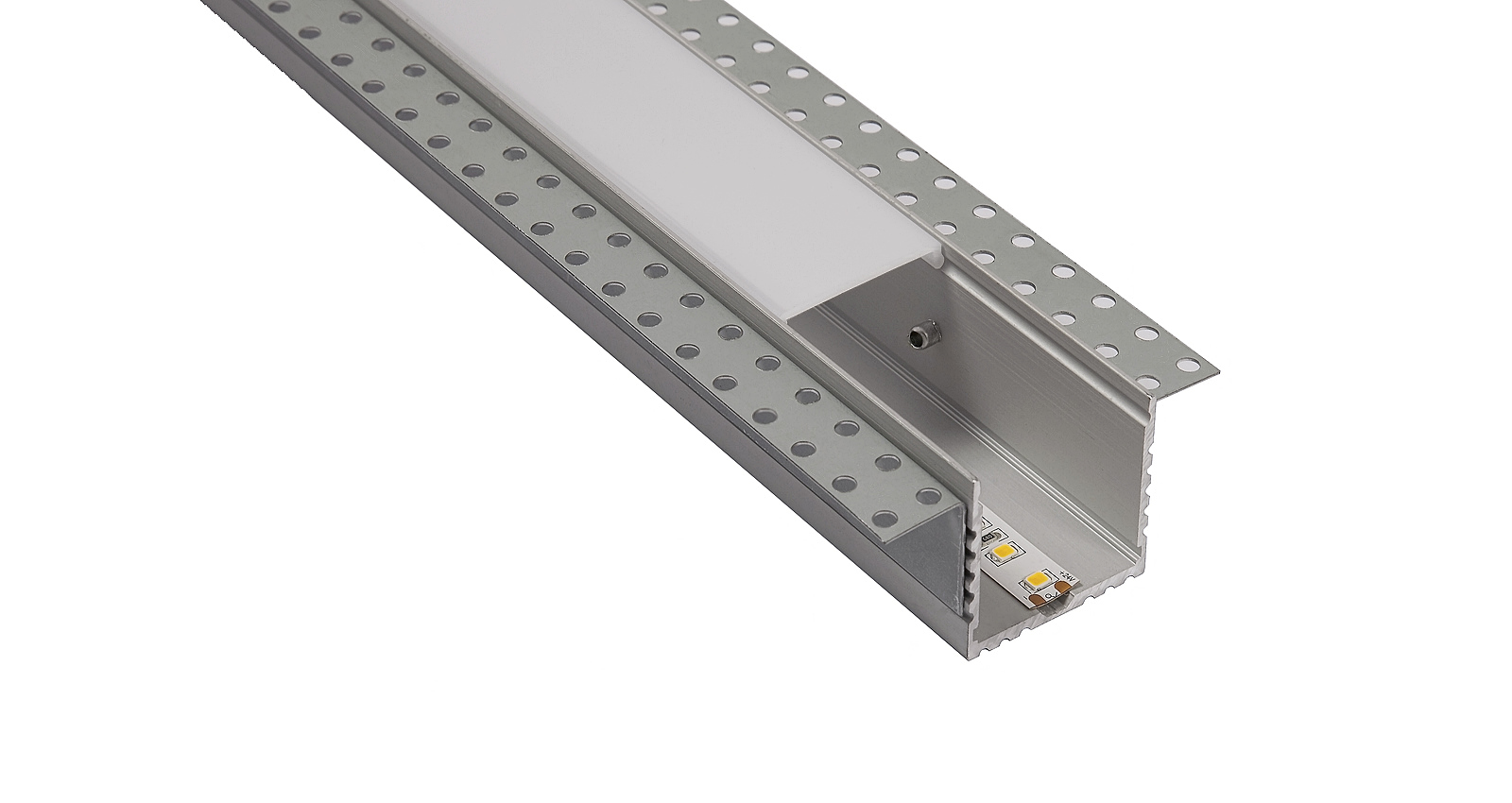

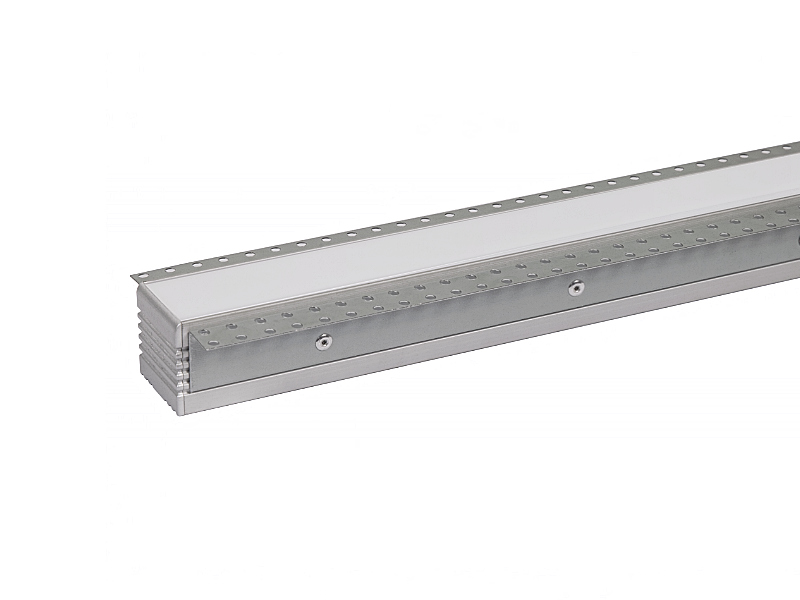

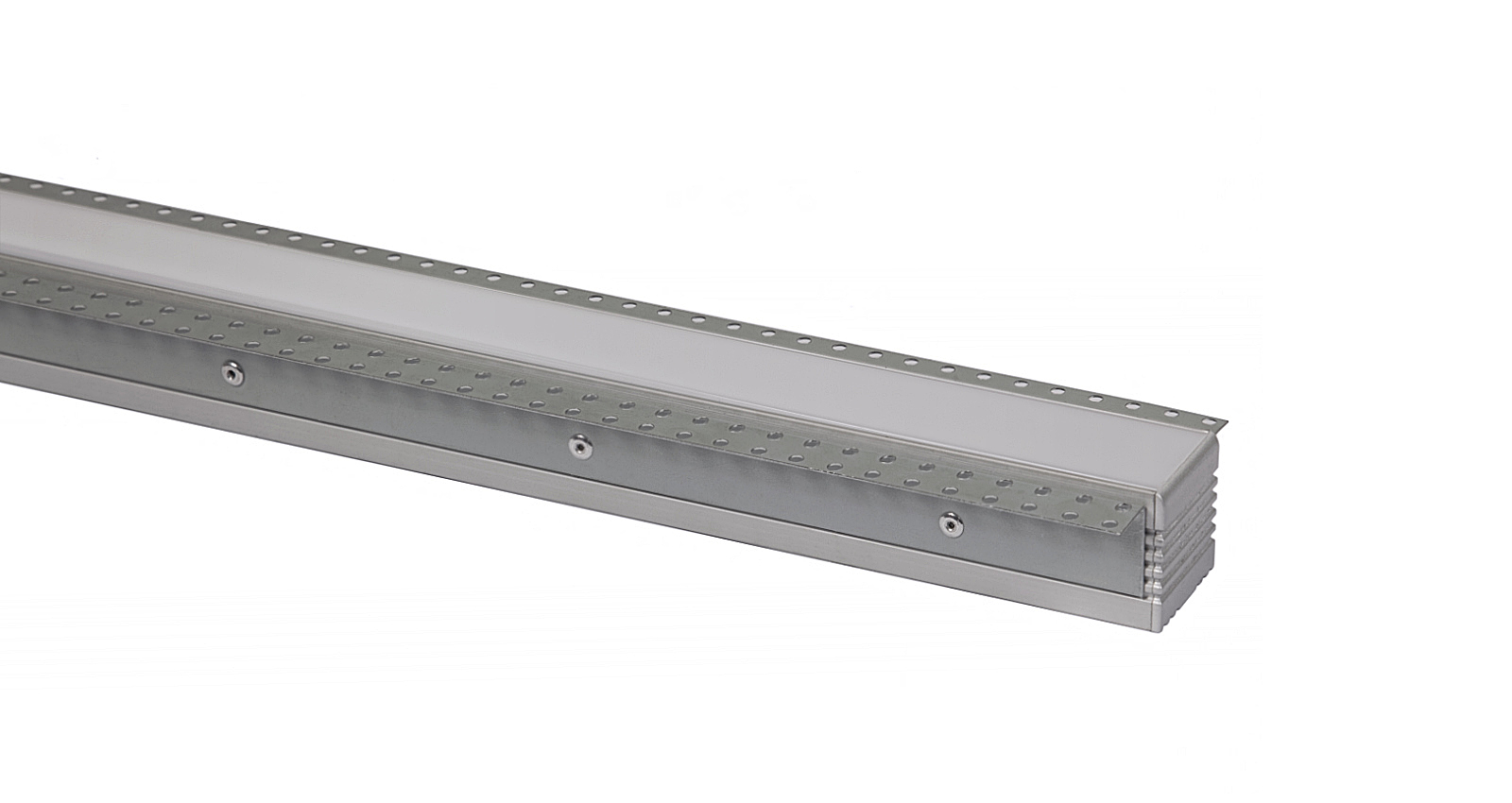

Linear trimless aluminium LED extrusion suitable for recessing and offered in 3 light output levels.The extrusion can also be supplied in made to measure lengths. Trimless installation allows for the profile to be plastered into the ceiling for that all important architectural look. An opal diffuser ensures constant illumination without spotting or shadow lines. Supplied with remote control gear.

up to 1086 lumen/m output

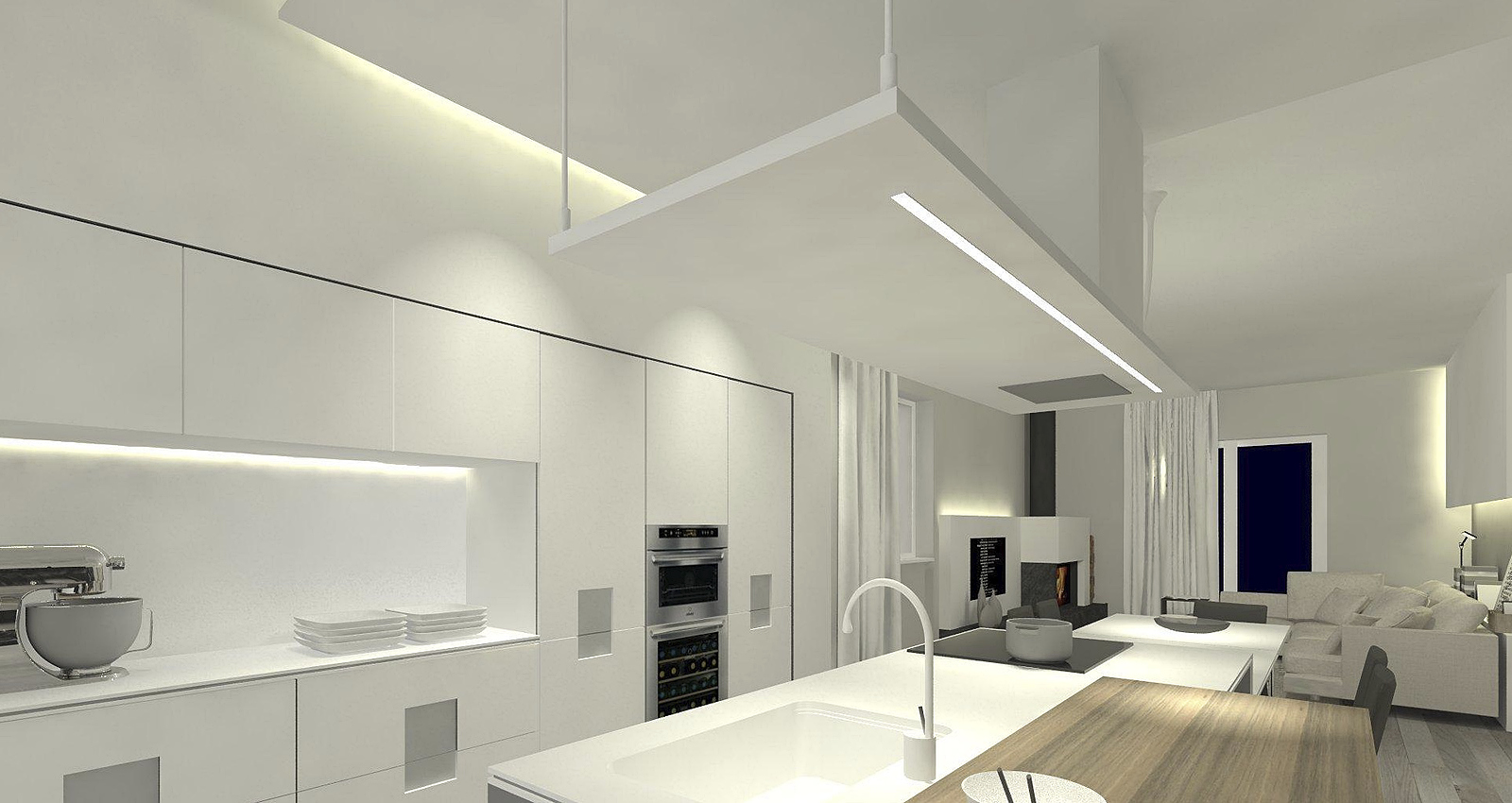

trimless architectural look
continuous wide symmetrical light output
Samsung 4 oz PCB for optimum heat distribution
phase, 1-10V or Dali Dimmable

[image]

data sheet

E37 Trimless

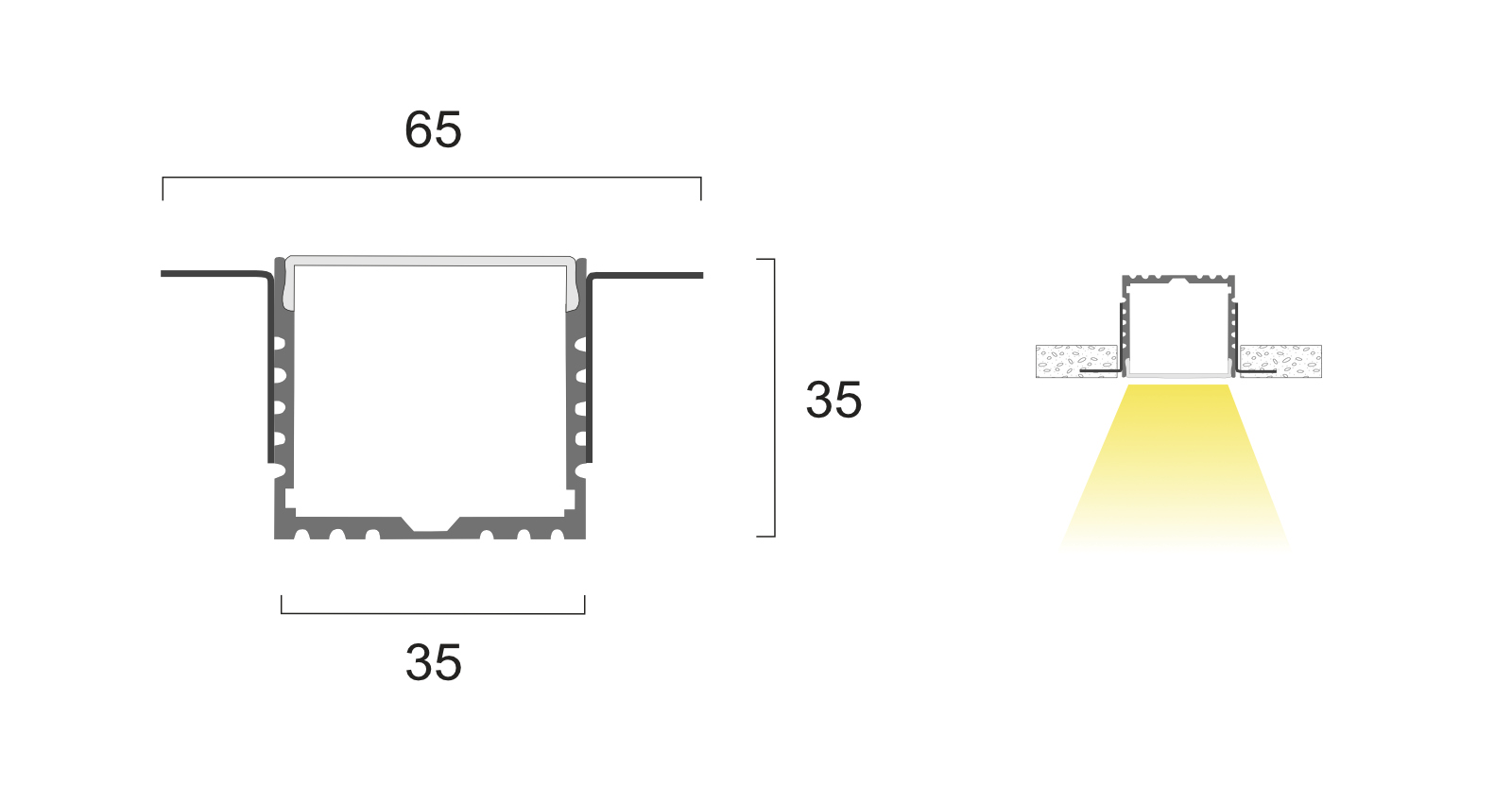

[dimension drawing option]

E37 Trimless

Specification

LED type	Samsung LM281B tape
CRI	80+
Bin code	Single bin
LED lifetime	50,000hrs L70
Control gear	Remote (included)
IP rating	IP40

E37 Trimless

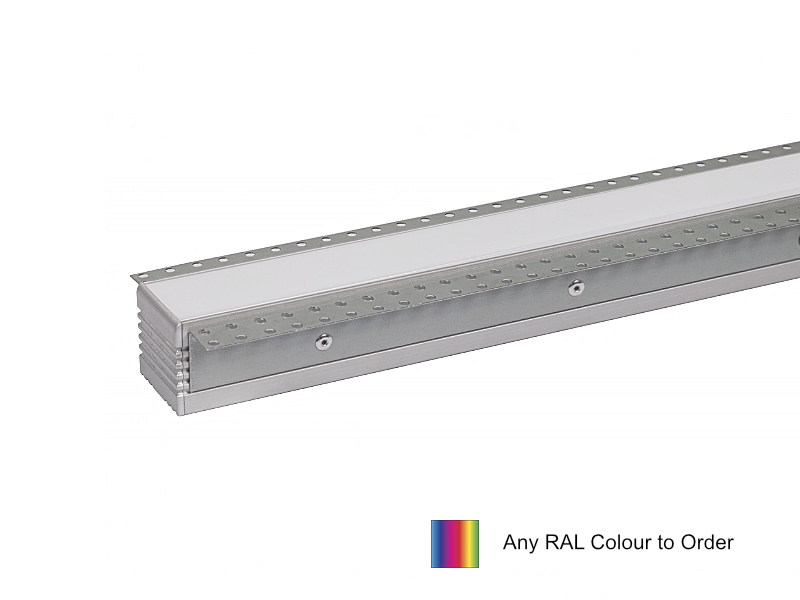

Please select a finish combination option

Finish

[colour option]

[colour option]

E37 Trimless

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power

Diffuser

CCT (°K)

Finish

Length

Driver

Product Code:

E37-_-_-_-_-_-_ View Datasheet
