E36 Trimmed

E36 Trimmed

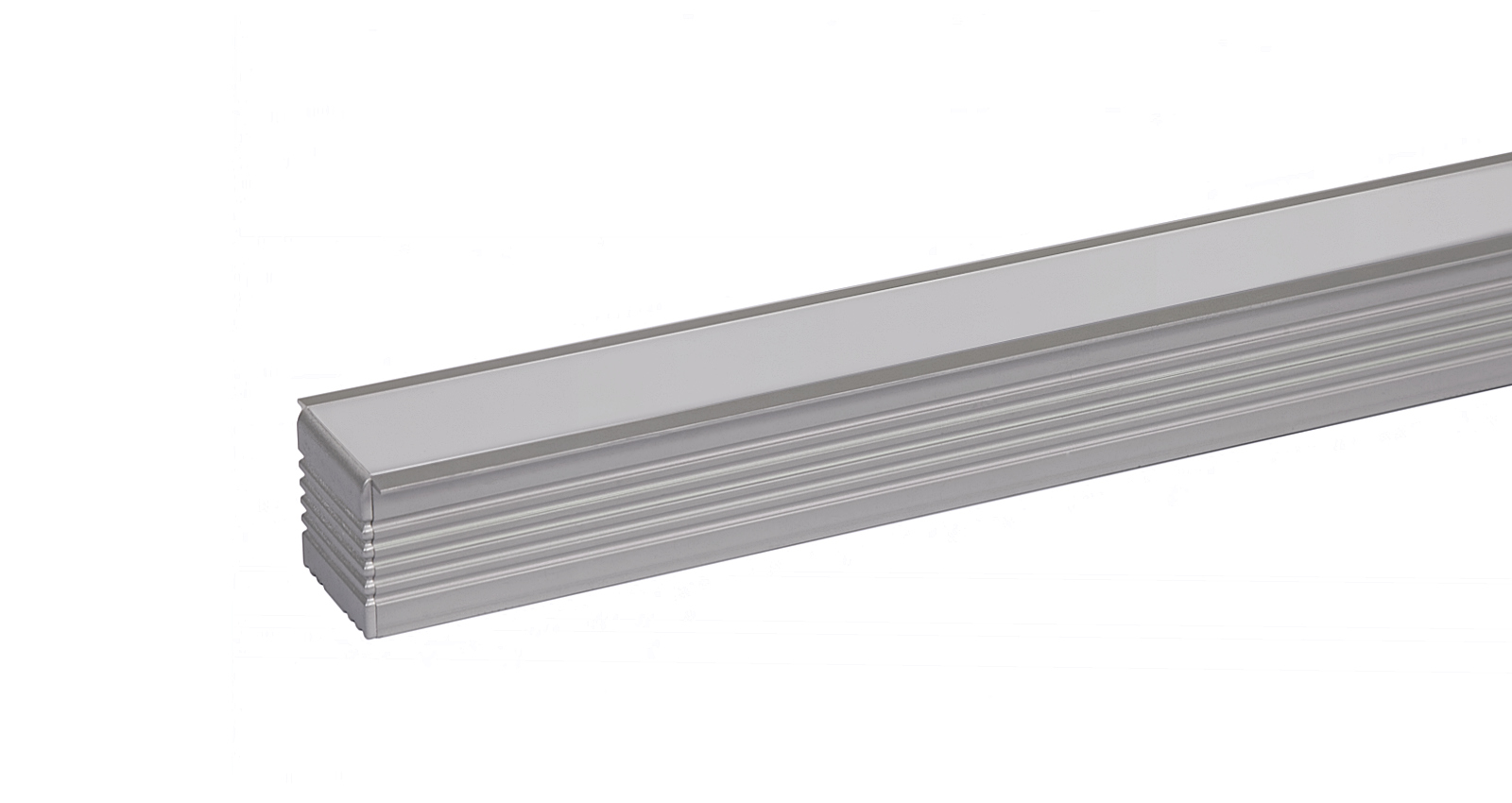

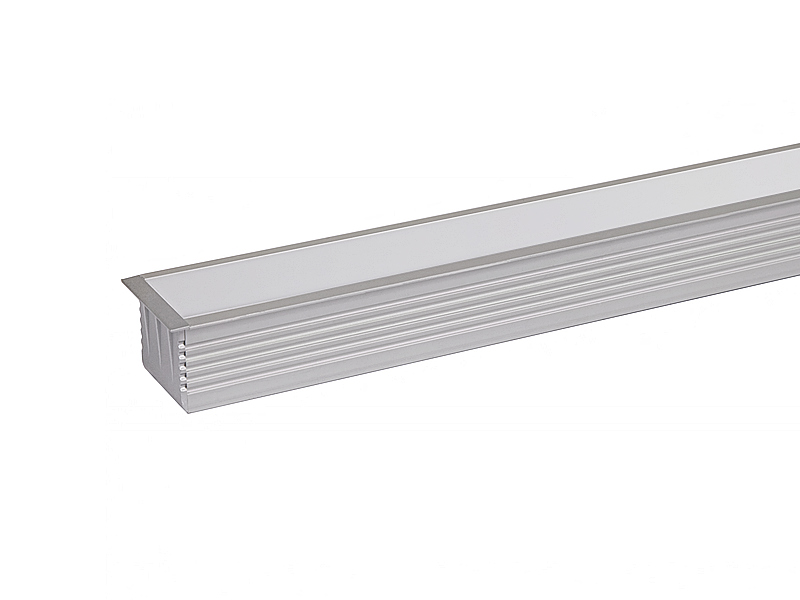

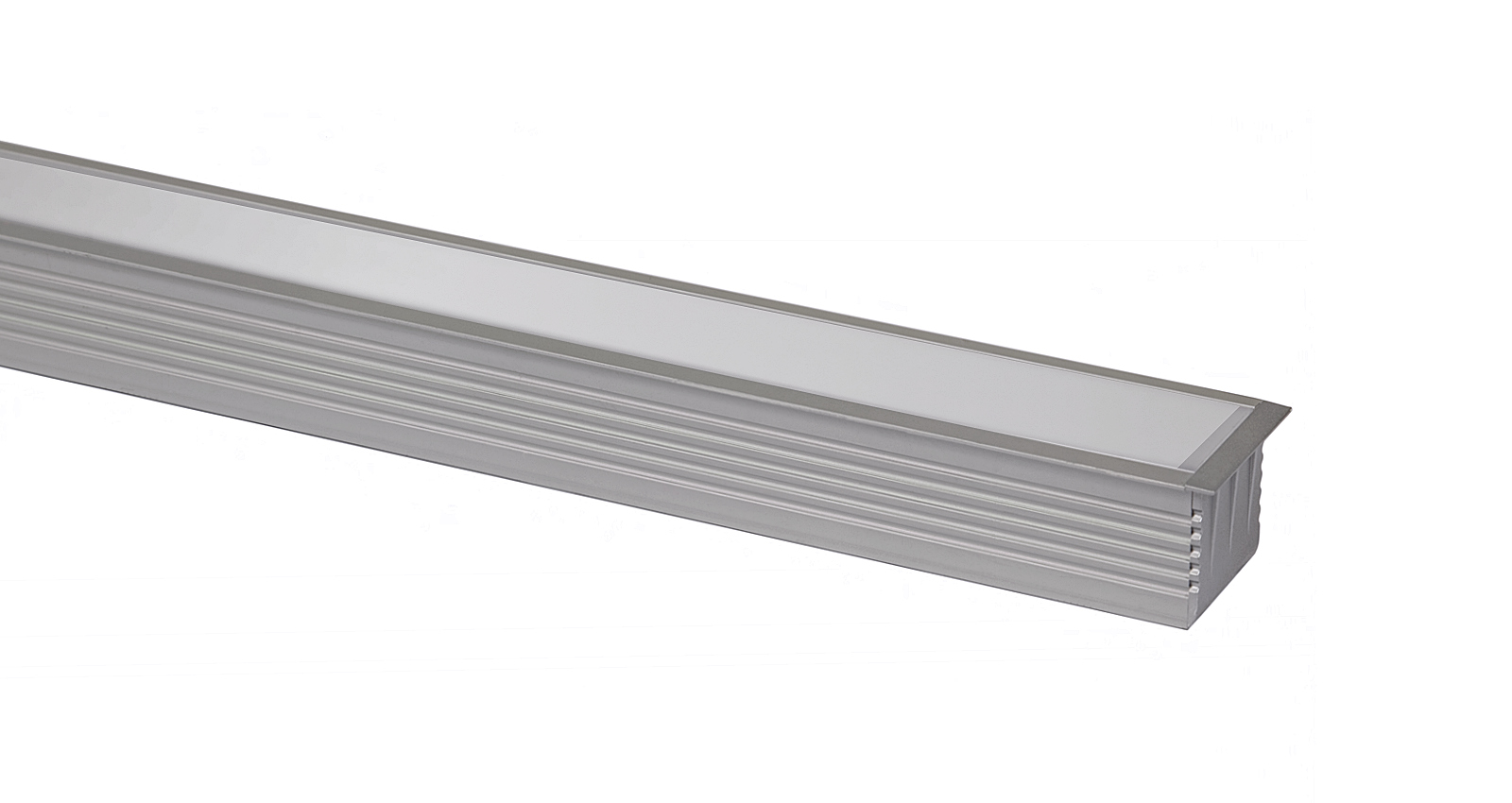

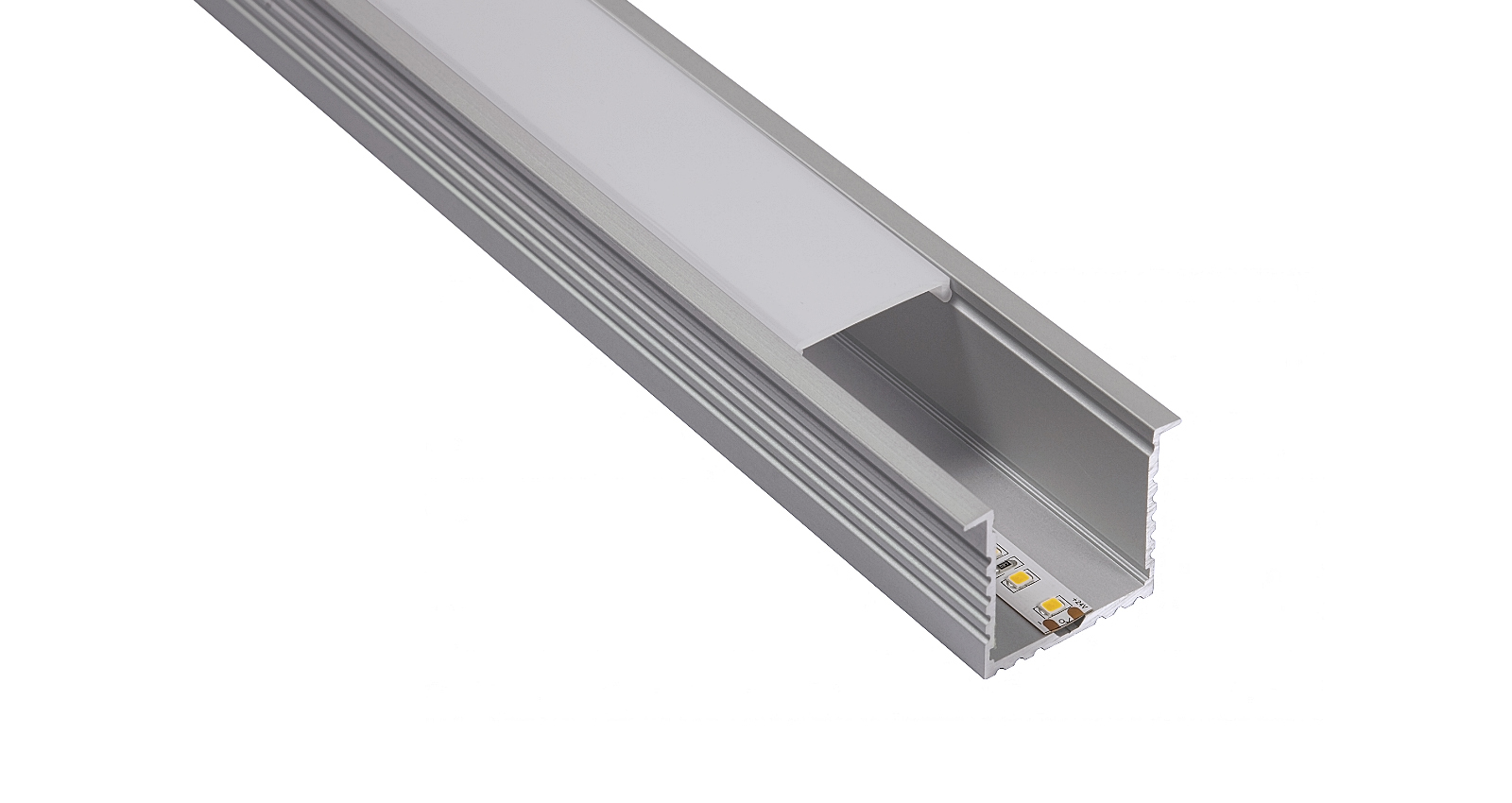

Linear trimmed aluminium LED extrusion suitable for recessing and offered in 3 light output levels. The aluminium extrusion acts as a heat sink maximising performance and life of the Samsung single bin LED strip. An opal diffuser ensures constant illumination without spotting or shadow lines. The extrusion is supplied in made to measure lengths. Supplied complete with remote control gear.

  • up to 1086 lumen/m output
  • continuous wide symmetrical light output
  • Samsung single bin chip
  • 4 oz PCB for optimum heat distribution
  • phase, 1-10V or Dali Dimmable
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]
[image]

data sheet

Related products

[product thumbnail]

E35 Surface

35x35mm

[product thumbnail]

E37 Trimless

65x35mm

[product thumbnail]

E24

64x15mm

[product thumbnail]

E60 Surface

60x80mm

E36 Trimmed

Specification

LED type Samsung LM281B tape
CRI 80+
Bin code Single bin
LED lifetime 50,000hrs L70
Control gear Remote (included)
IP rating IP40

E36 Trimmed

Please select a finish combination option

Finish

Ano Alu

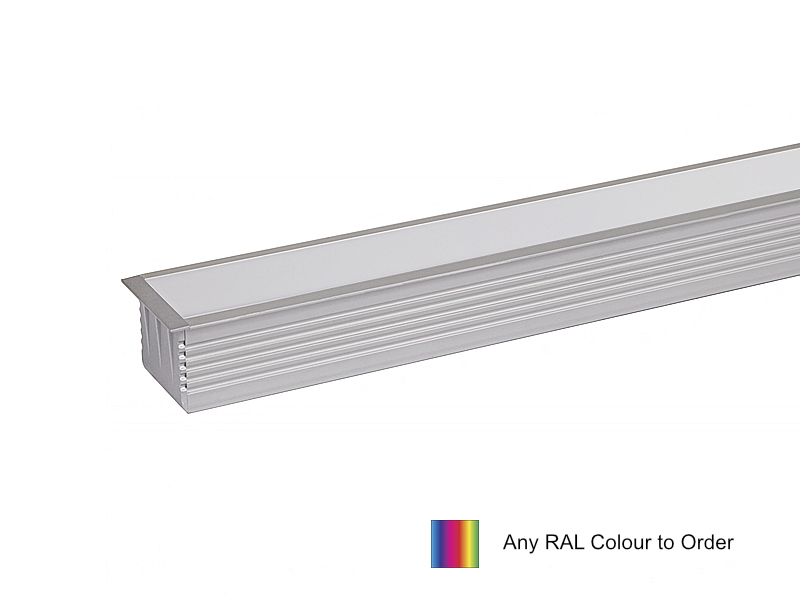

RAL
[colour option] [colour option]

E36 Trimmed

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power
5W/m
10W/m
15W/m
Diffuser
Opal
CCT (°K)
2700
3000
3500
4000
Finish
Ano Alu
RAL
Length
Length (mm)

Product Code:

E36-_-_-_-_-_-_ View Datasheet
