E14

E14

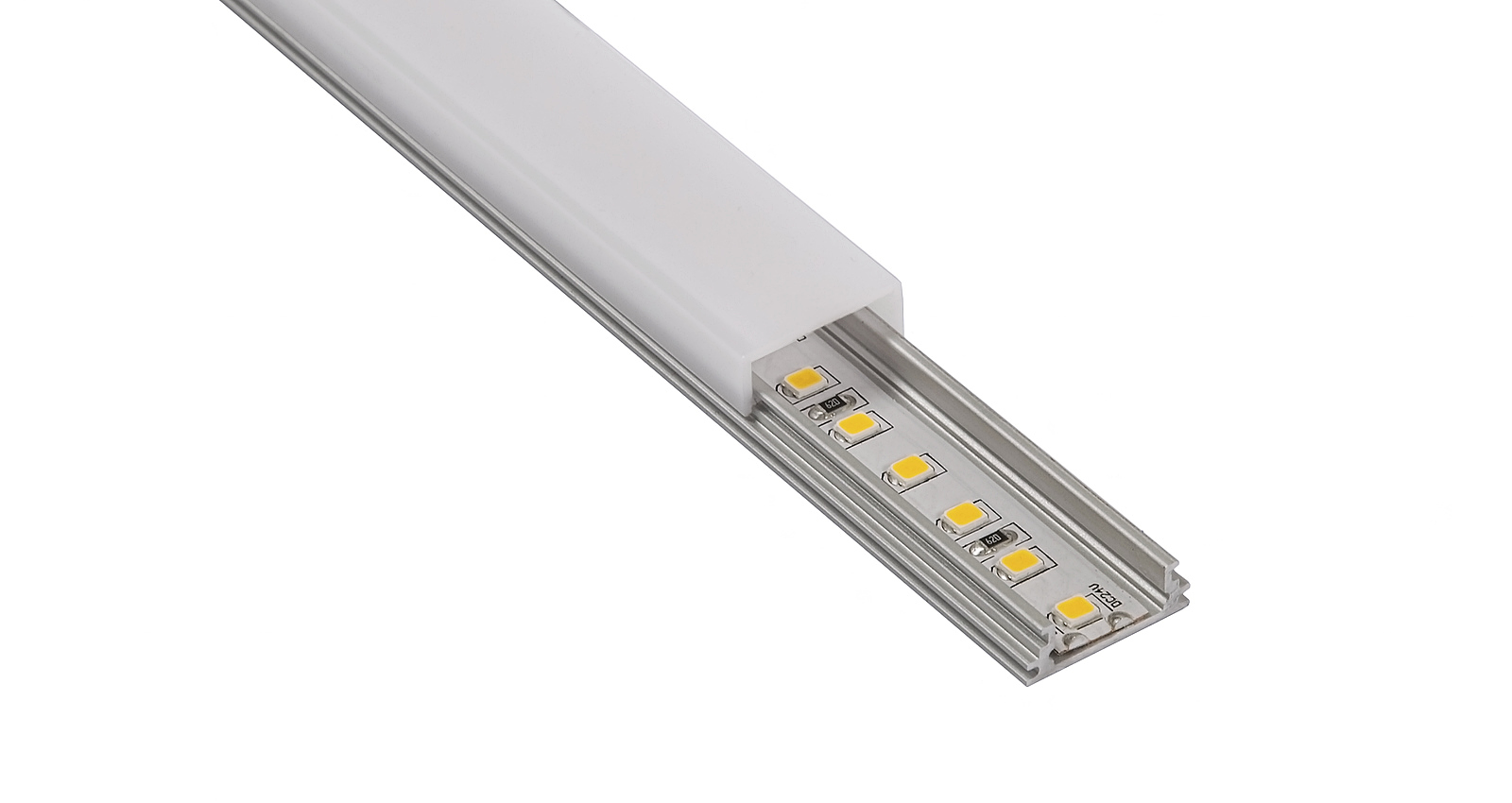

Slimline aluminium LED extrusion suitable for surface mounting, offered in 3 light output levels. An opal wrap around diffuser gives a wide light distribution and ensures constant illumination without spotting or shadow lines. The aluminium extrusion acts as a heat sink maximising the performance and life of the LED strip. Supplied complete with remote control gear.

up to 1642 lumen/m output
10mm depth
continuous uniform wide light output
Samsung 4 oz PCB for optimum heat dissipation
phase, 1-10V or Dali dimmable

[image]

data sheet

E14

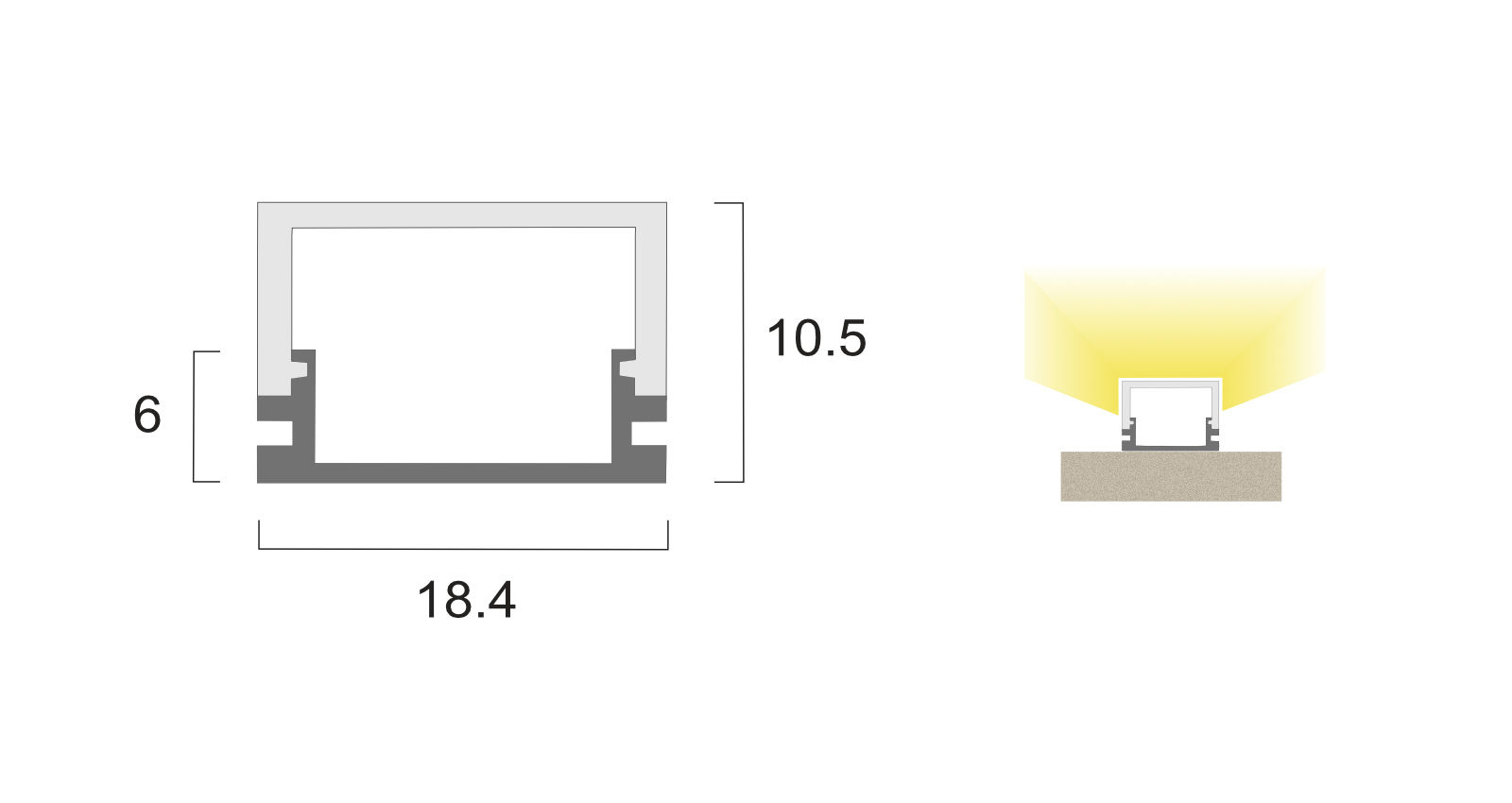

[dimension drawing option]

E14

Specification

LED type	Samsung LM281B tape
CRI	80+
Bin code	Single bin
LED lifetime	50,000hrs L70
Control gear	Remote (included)
IP rating	IP20

E14

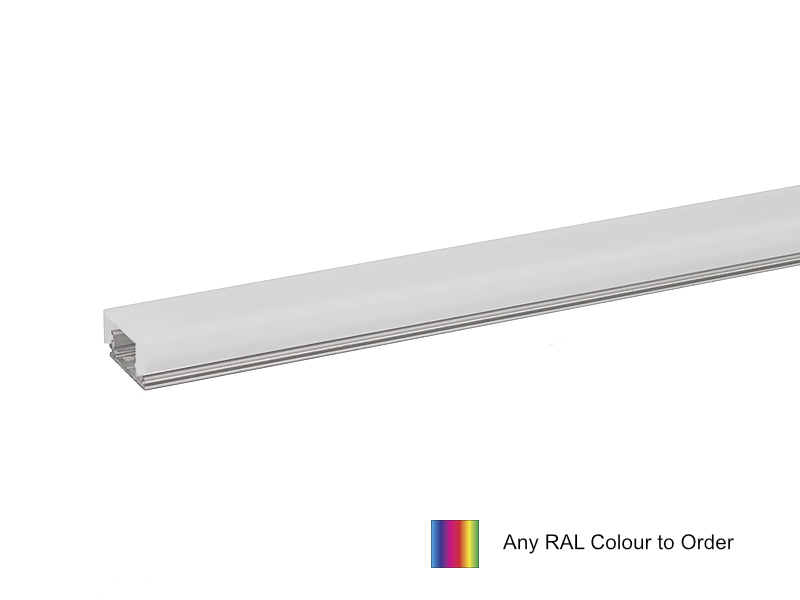

Please select a finish combination option

Finish

[colour option]

[colour option]

E14

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power

Diffuser

CCT (°K)

Finish

Length

Driver

Product Code:

E14-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet
