E13
E13

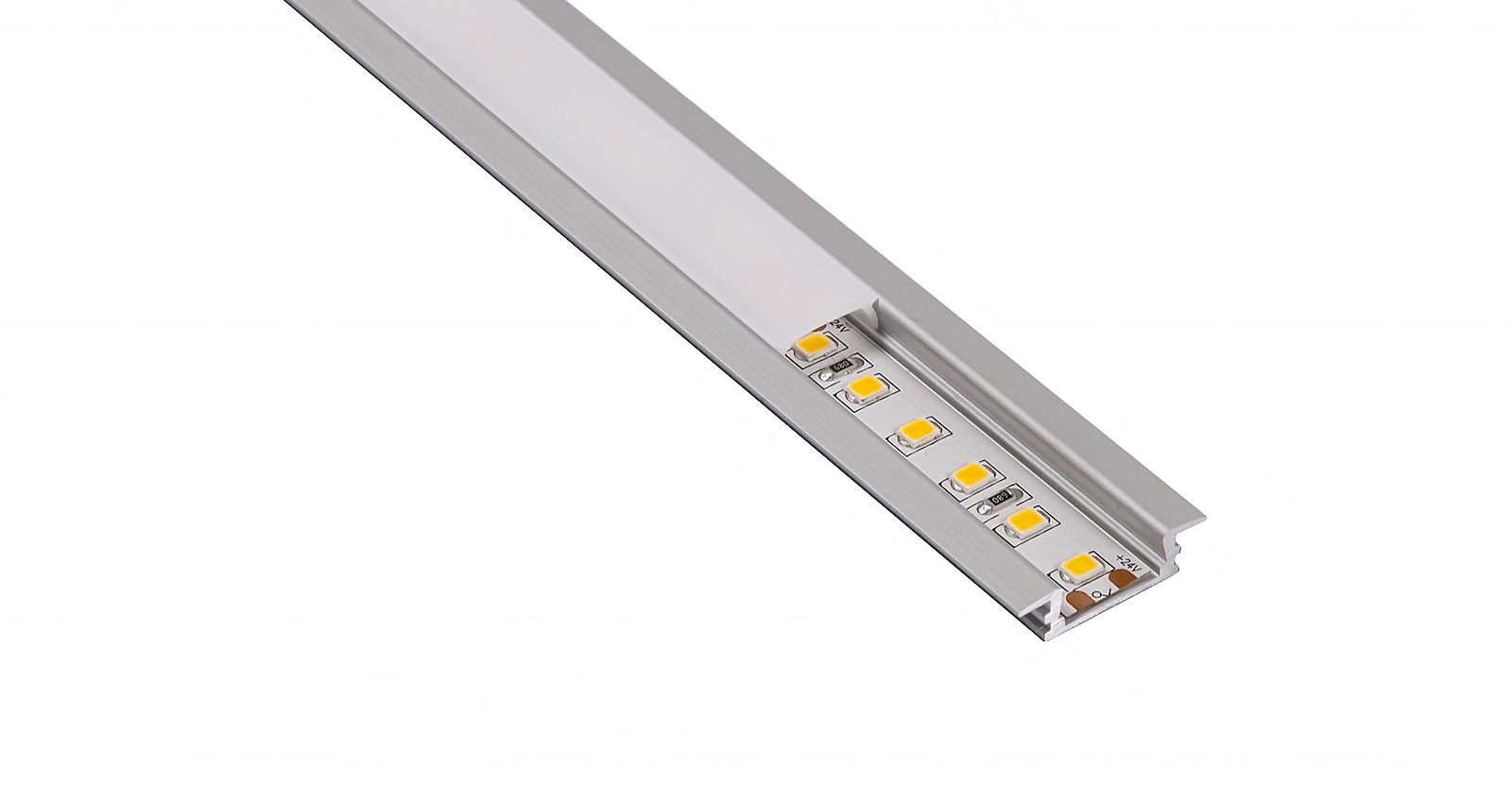

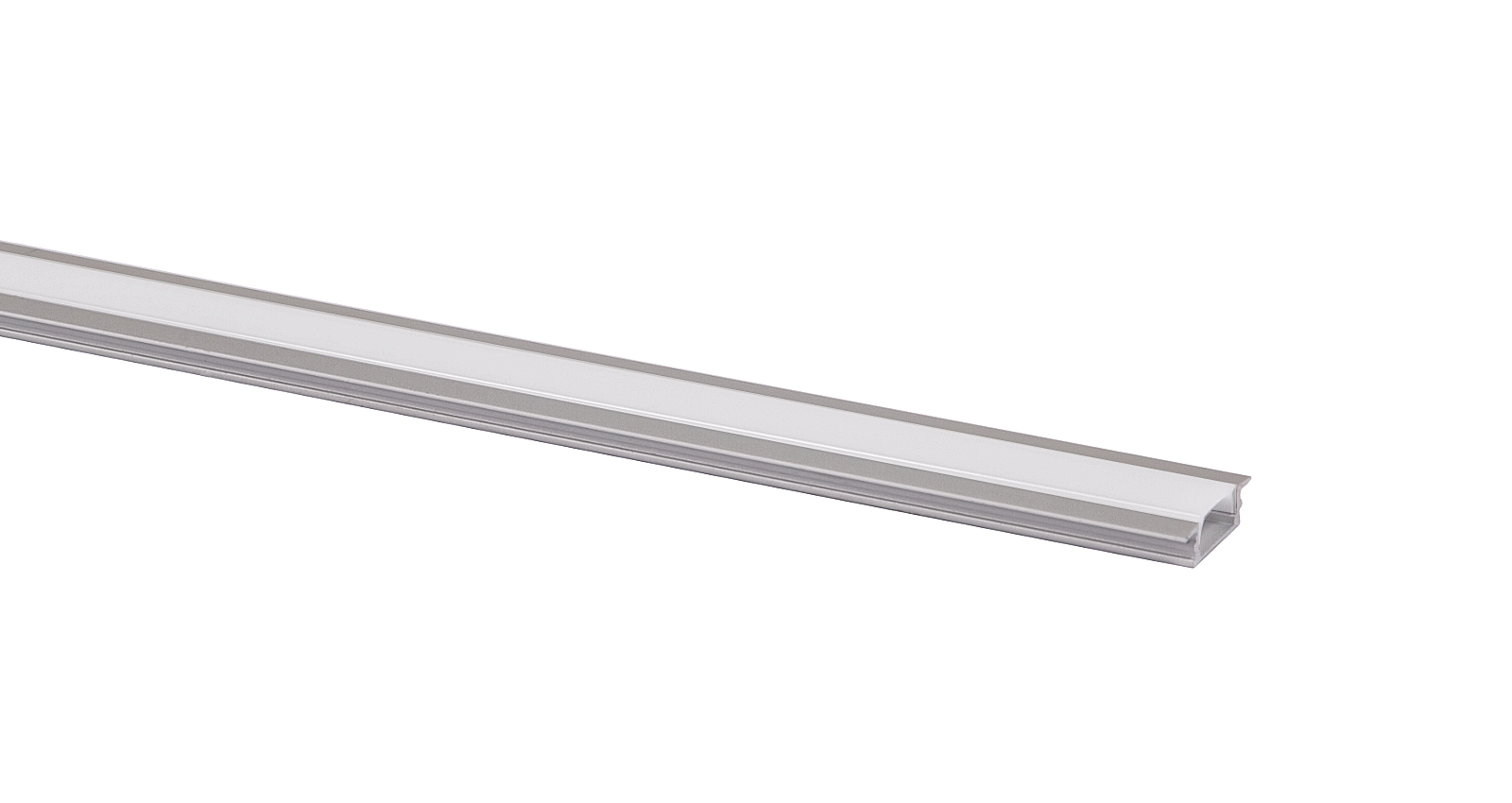

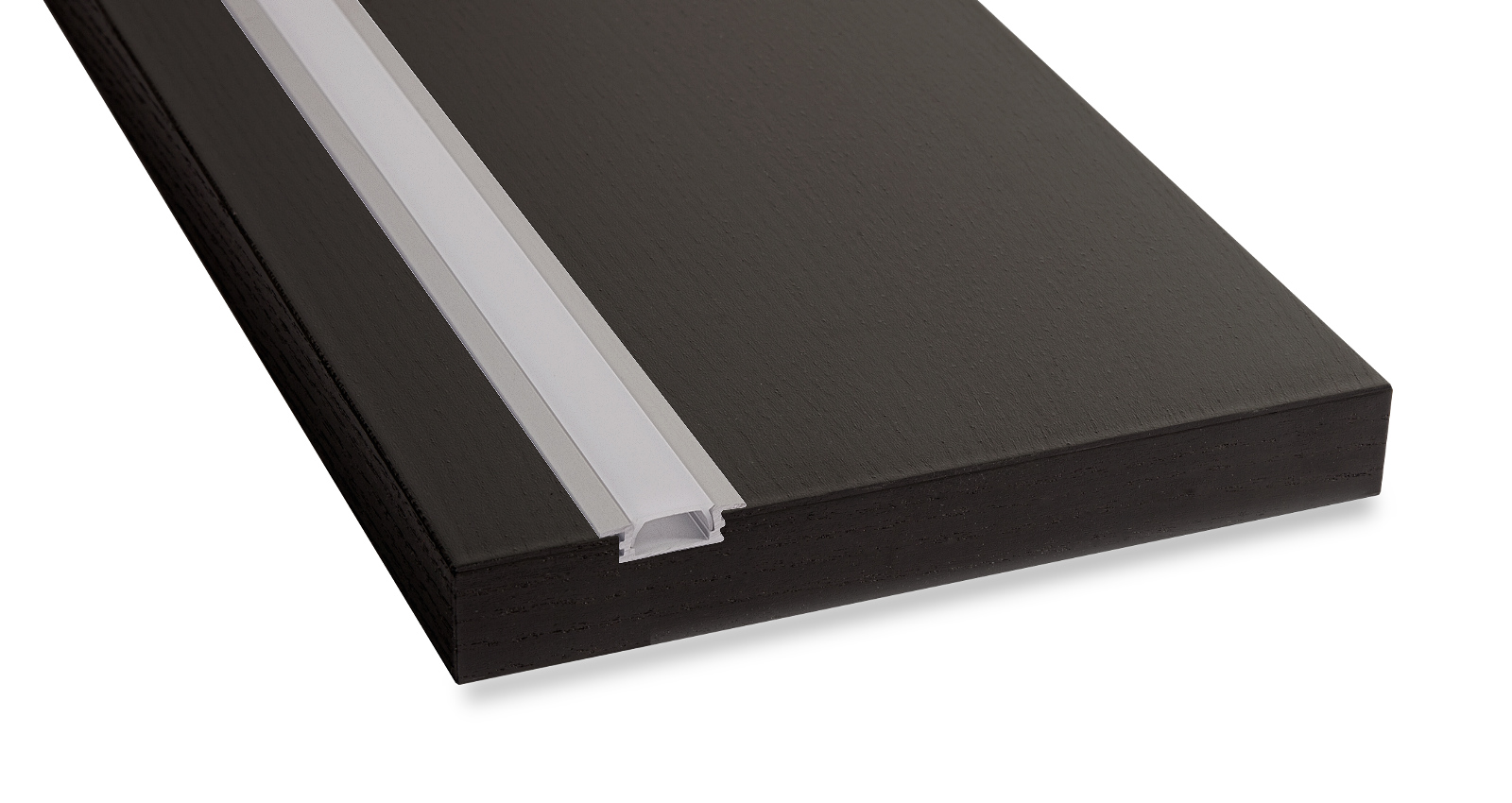

Slimline made to measure trimmed aluminium recessed LED linear system offered in 3 light output levels. 6mm recess depth is ideal for furniture and other applictions with restricted depth. Opal diffuser ensures a constant wide line of light. The aluminium extrusion acts as a heat sink maximising performance and life of the LED strip. Supplied with remote control gear.
- up to 1309 lumen/m output
- 6mm installation height
- continuous uniform wide angle light
- Samsung 4 oz PCB for optimum heat dissipation
- phase, 1-10V or Dali dimmable
![[icon]](filestore/icontemplates/000039.png?1714005366)
![[icon]](filestore/icontemplates/000004.png?1714005366)
![[icon]](filestore/icontemplates/000048.png?1714005366)
![[icon]](filestore/icontemplates/000009.png?1714005366)
![[icon]](filestore/icontemplates/000006.png?1714005366)
![[icon]](filestore/icontemplates/000018.png?1714005366)
![[icon]](filestore/icontemplates/000015.png?1714005366)
![[icon]](filestore/icontemplates/000021.png?1714005366)
![[icon]](filestore/icontemplates/000052.png?1714005366)
![[image]](./views/frontend/resources/images/pdf-1.png)
![[product thumbnail]](filestore/product_captionimg/000029.jpg?1714005366)
![[product thumbnail]](filestore/product_captionimg/000028.jpg?1714005366)
![[product thumbnail]](filestore/product_captionimg/000053.jpg?1714005366)
![[product thumbnail]](filestore/product_captionimg/000051.jpg?1714005366)
E13

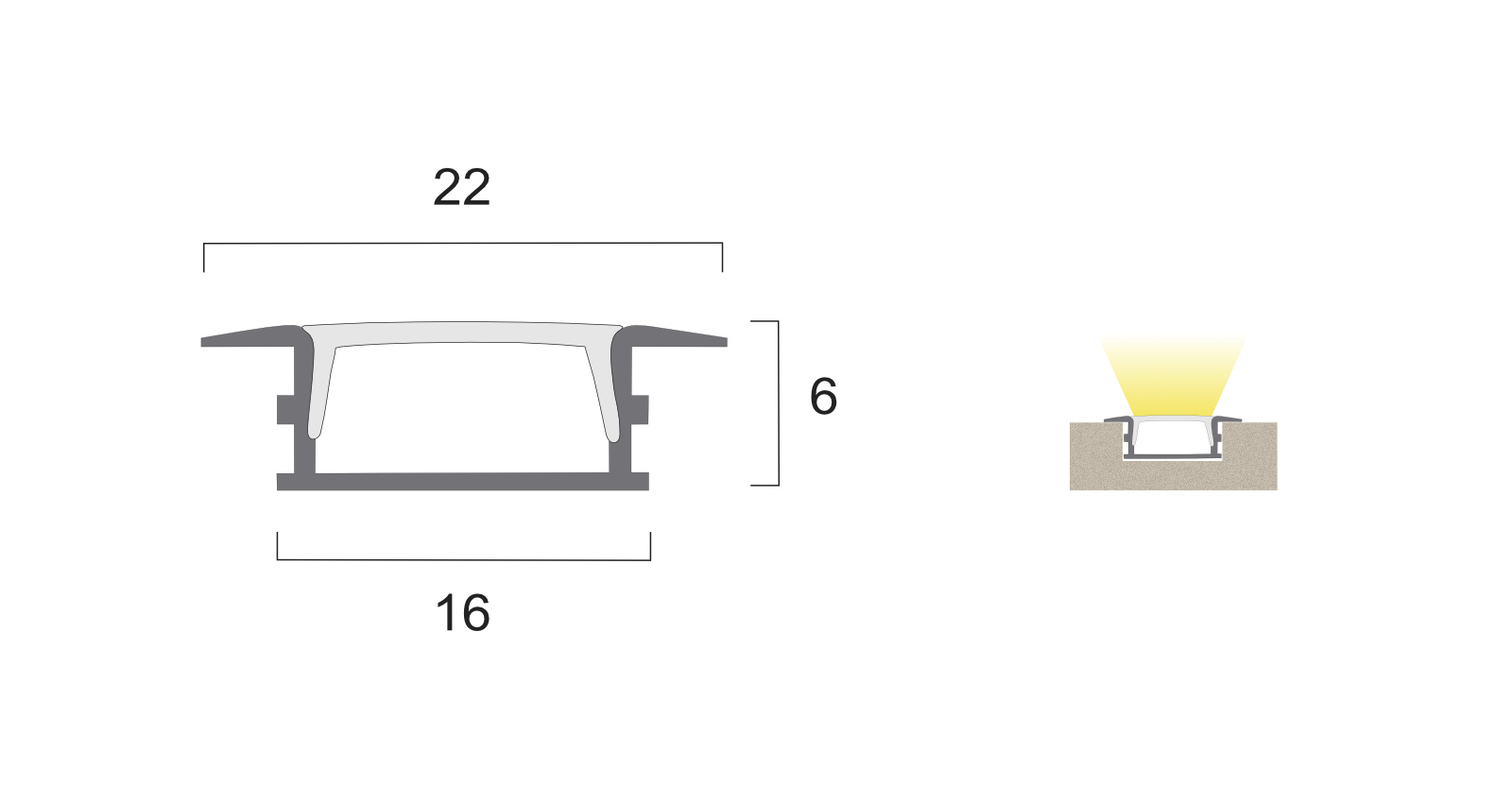

![[dimension drawing option]](filestore/product_dimensionsimg/000047/E13-DIM-01.jpg?1714005366)
E13
Specification
| LED type | Samsung LM281B tape |
| CRI | 80+ |
| Bin code | Single bin |
| LED lifetime | 50,000hrs L70 |
| Control gear | Remote (included) |
| IP rating | IP40 |
E13

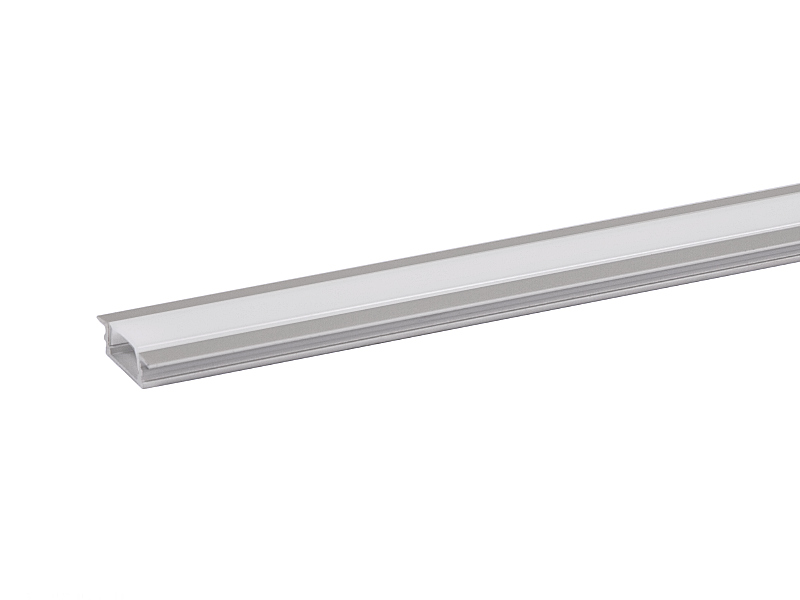

![[colour option]](filestore/colour_options/000047/E13-A.jpg?1714005366)

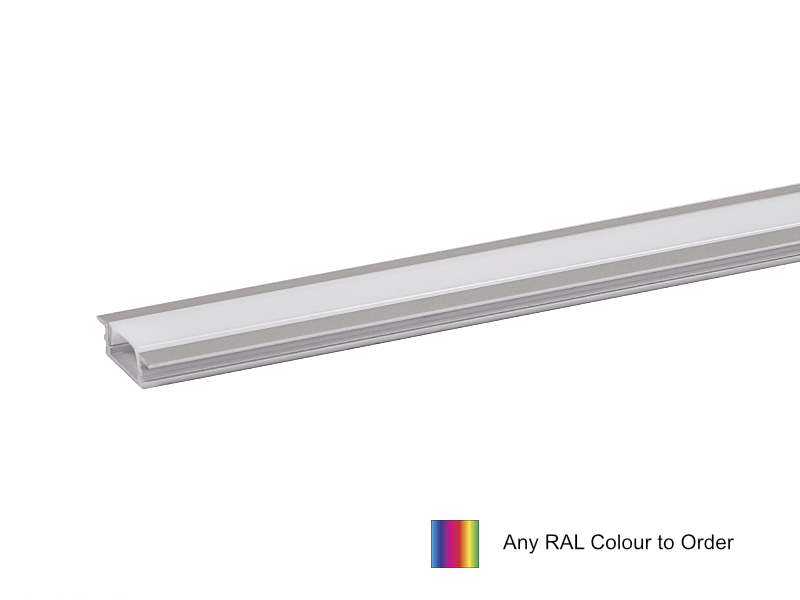

![[colour option]](filestore/colour_options/000047/E13-RAL.jpg?1714005366)
E13
Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us
