Melody

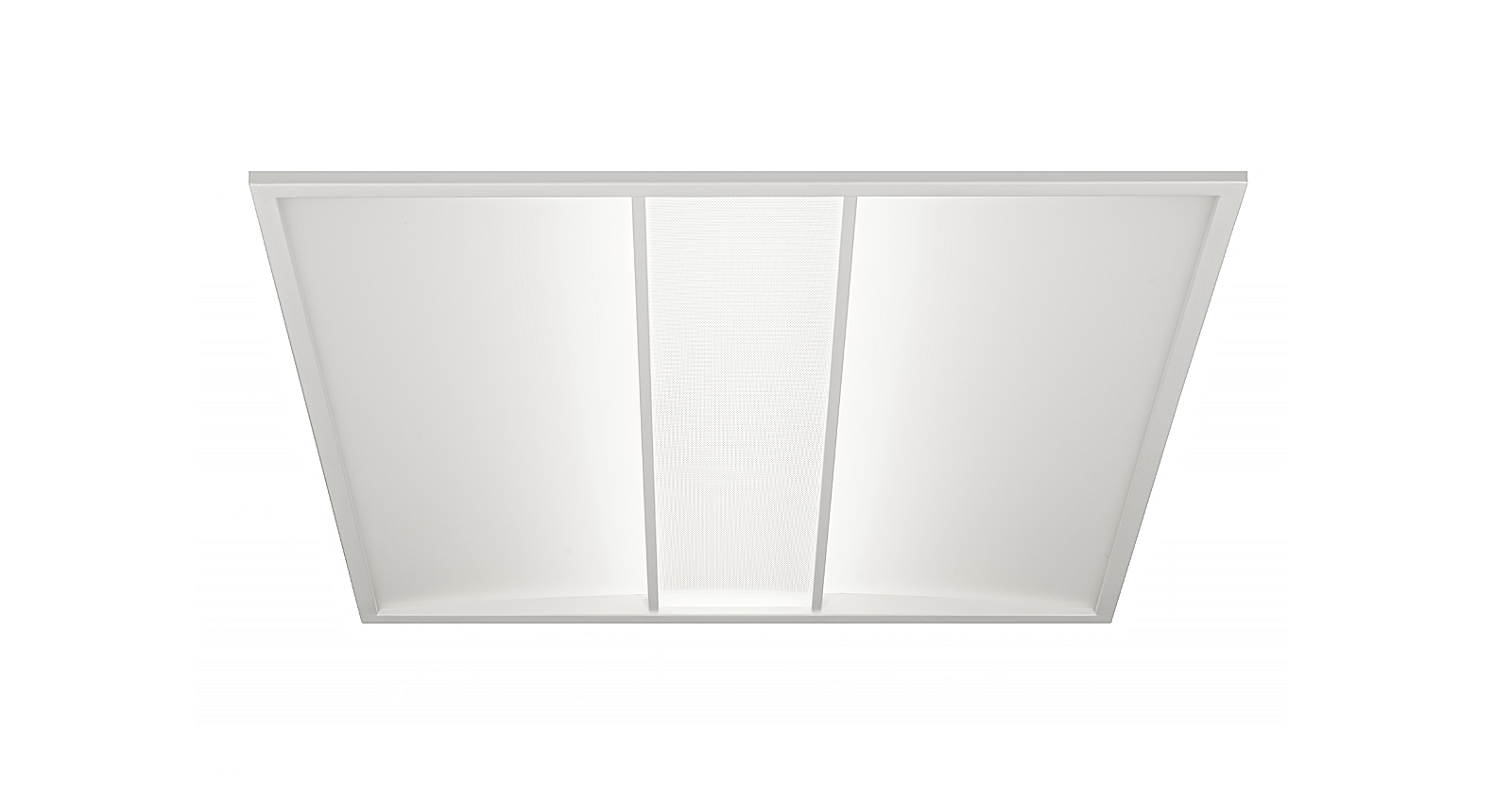

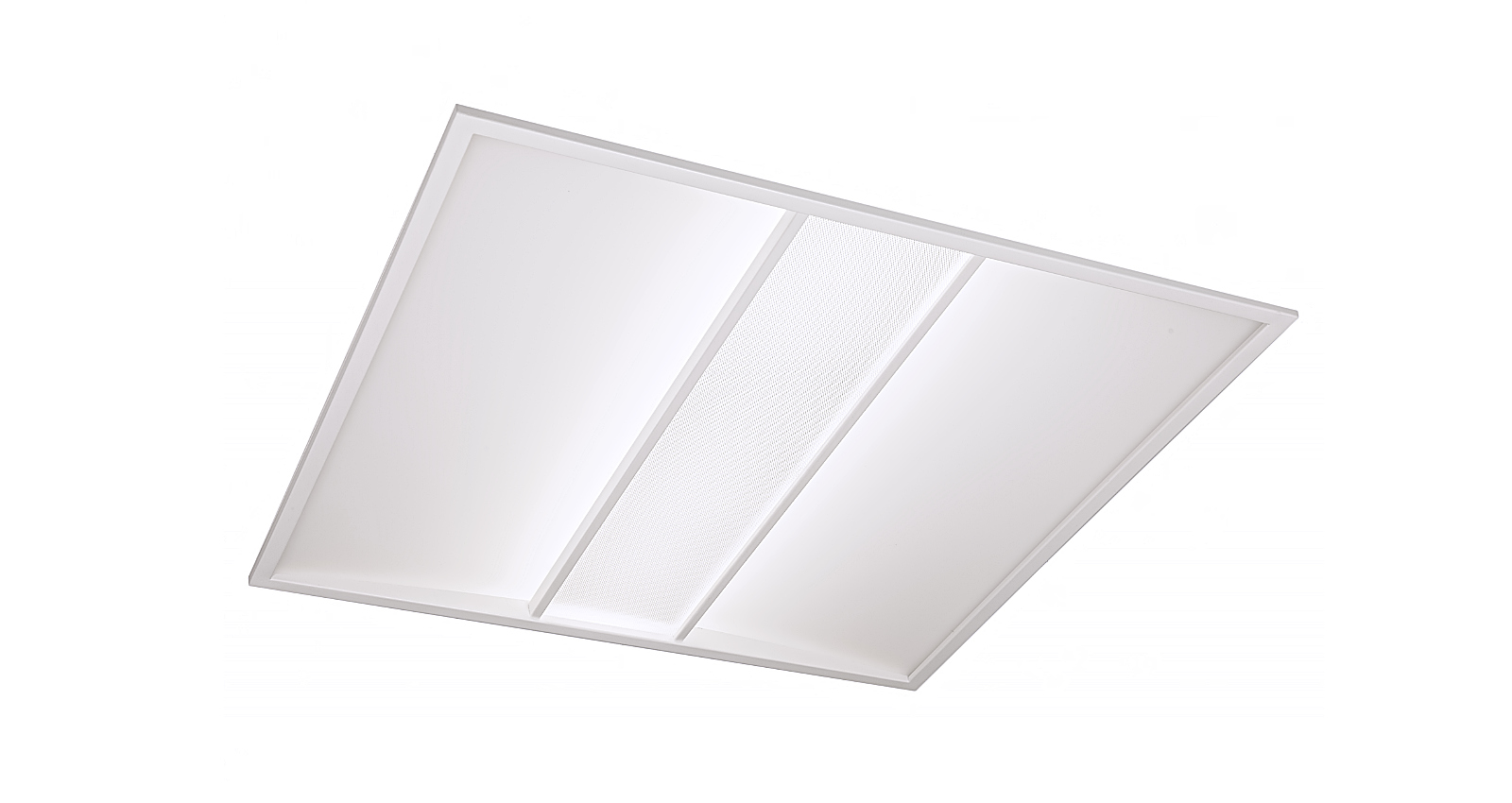

Melody recessed modular LED luminaire with micro prismatic central diffuser and opal outer panels giving UGR<19 performance. Custom made to fit a wide range of SAS/ Armstrong ceiling types Optional air handling facility and integration into metal ceiling panels. Integral control gear with 3 hour emergency back up option.

up to 3872 lumen output
UGR<19 & EN12464-1 compliant
Tridonic Dali dimmable control gear
optional Integral Air handling

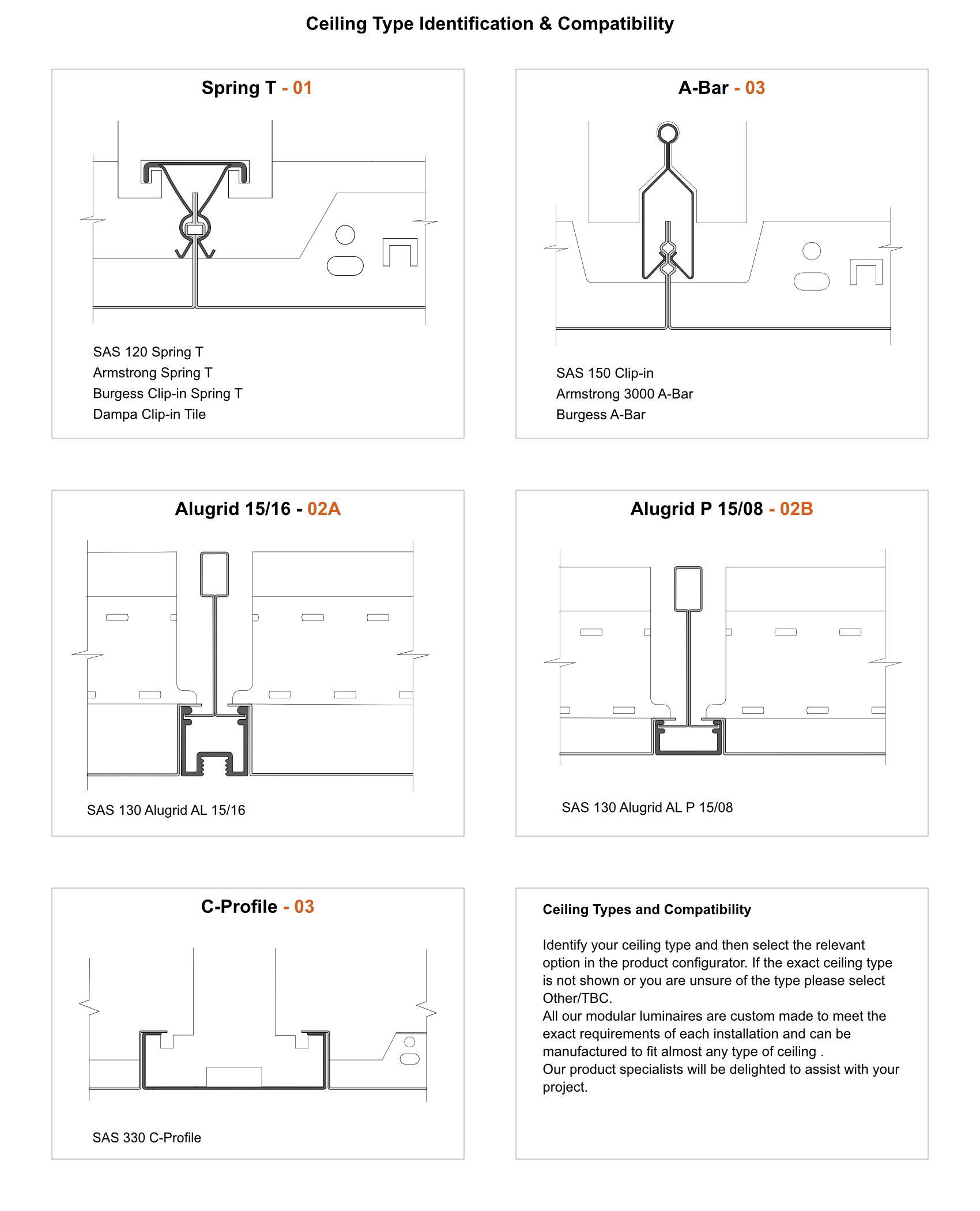

Custom made to fit multiple ceiling types

Melody

Melody

Specification

Version	MY1-22- MY1-29-
Nominal power (W)	22 29
LED type	Tridonic LLE HV ADV5
Colour temperature	3000K, 4000K
Colour rendering index	Ra>80
Colour consistency	3-step Macadam
Rated service life	>70,000h L80/F10 at 85° Max.
Glare rating	UGR<19
Optic	Microprismatic centre and opal sides
Control gear	Integral
IP Rating	IP40
Weight (Kg)	5.8
