E12
E12

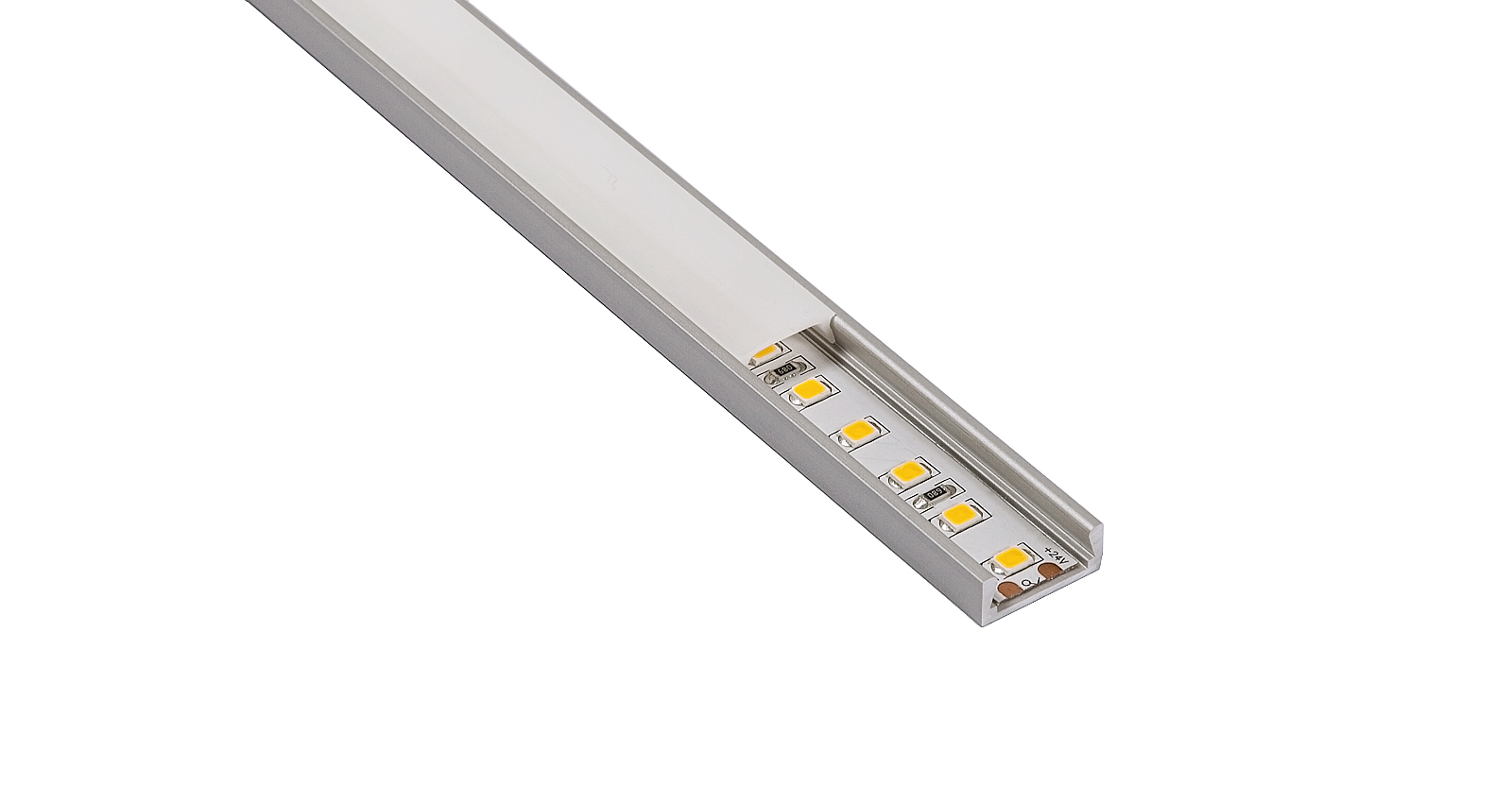

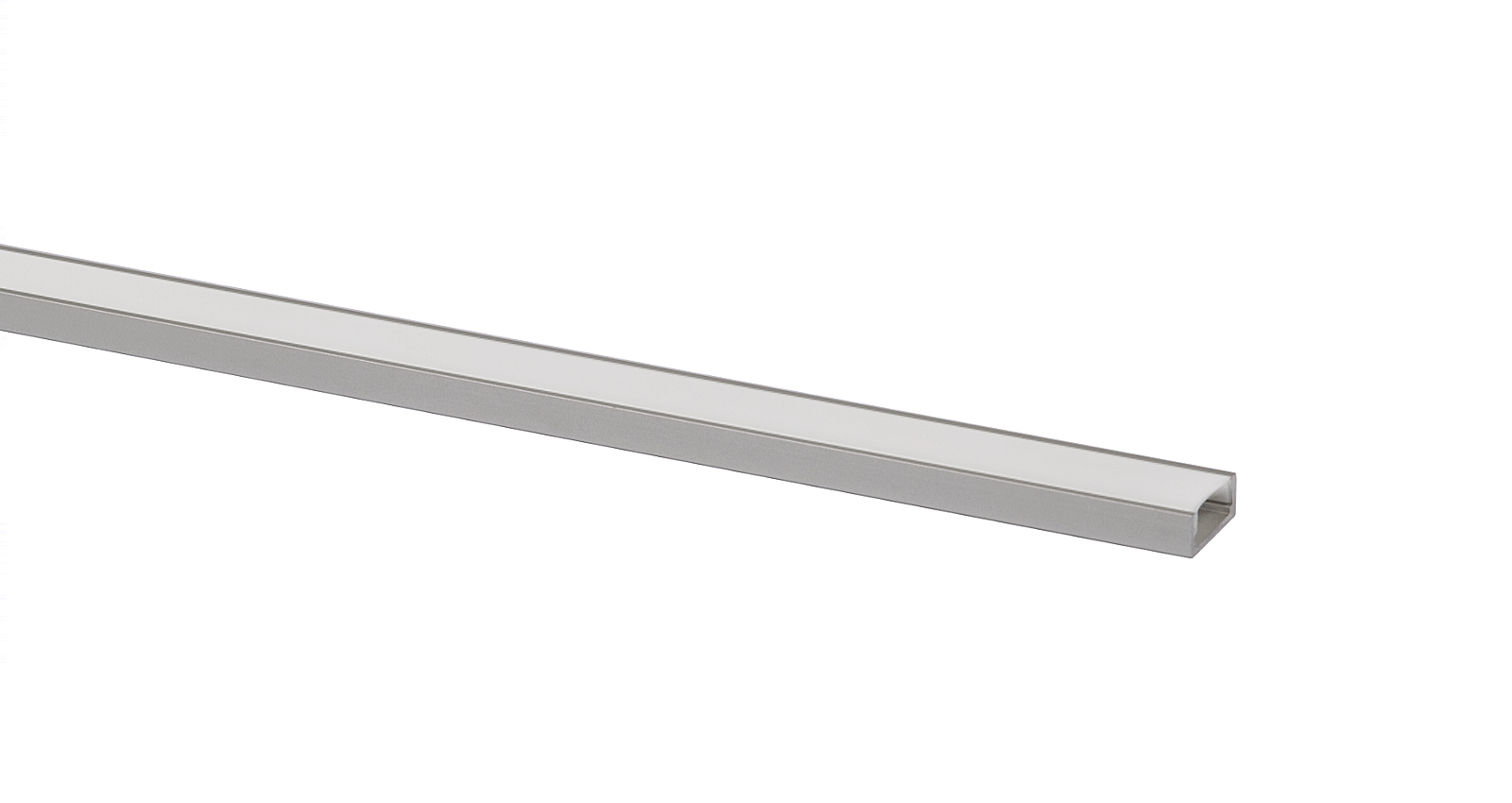

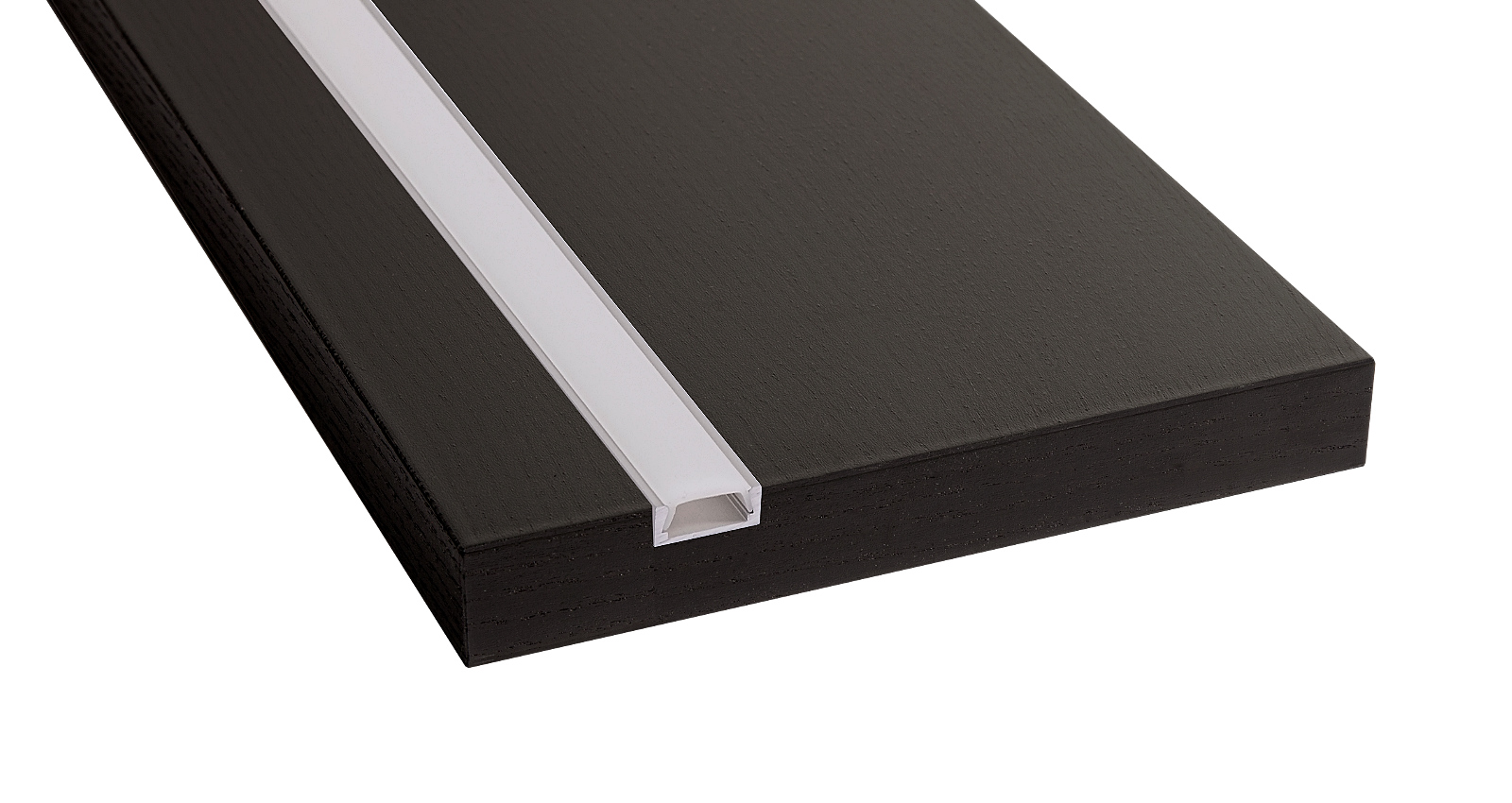

Slimline made to measure surface or recessed mounted LED linear system offered in 3 colour temperatures. 6mm Installation height is ideal for furniture and other applications with restricted depth and gives a wide light distribution. Opal diffuser ensures a constant line of light. Supplied complete with remote gear.
- up to 1309 lumen/m output

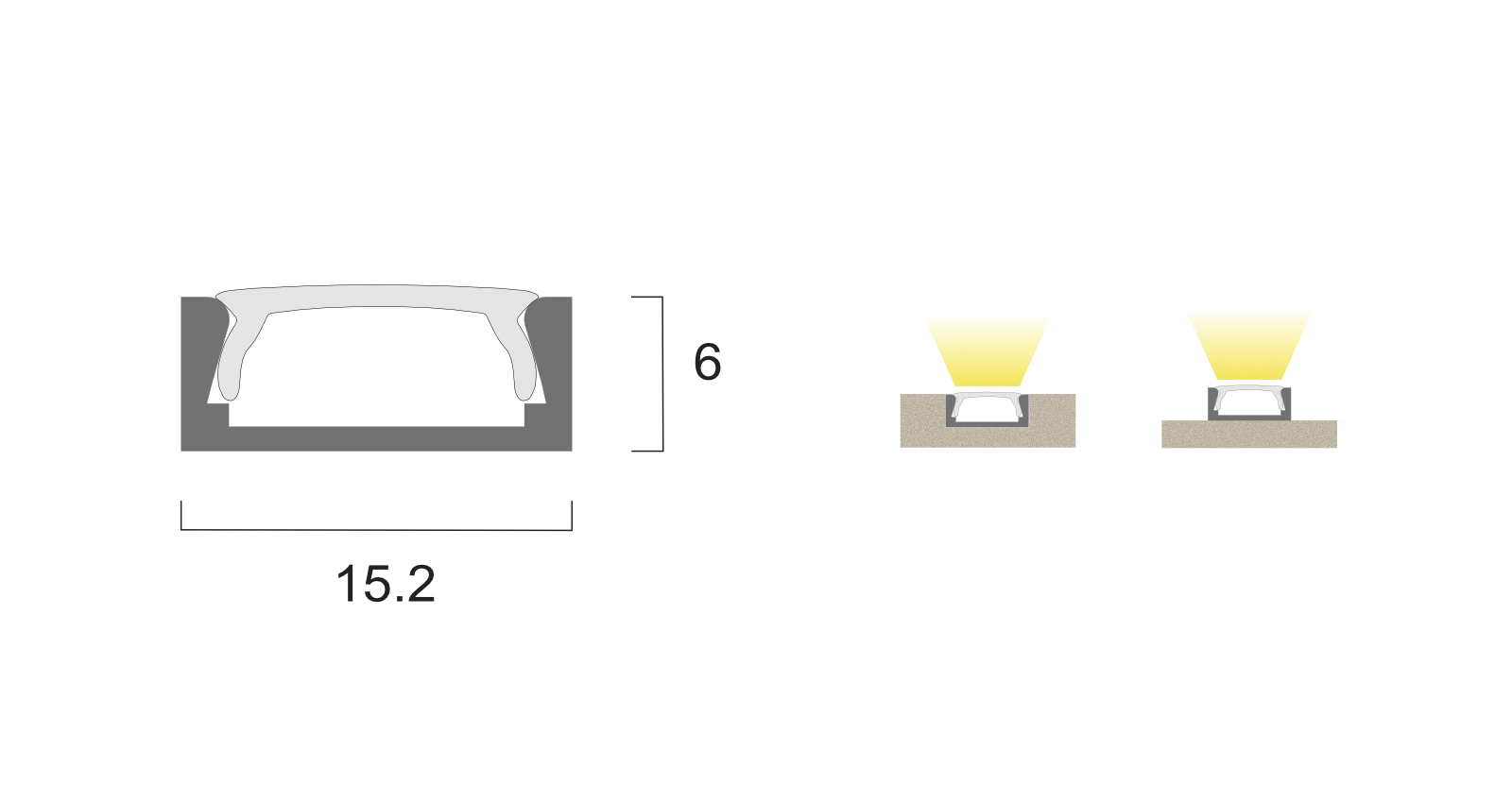

- 6mm installation height
- continuous uniform wide angle light
- Samsung 4 oz PCB for optimum heat dissipation
- phase, 1-10V or Dali dimmable
![[icon]](filestore/icontemplates/000039.png?1735213939)
![[icon]](filestore/icontemplates/000004.png?1735213939)
![[icon]](filestore/icontemplates/000048.png?1735213939)
![[icon]](filestore/icontemplates/000009.png?1735213939)
![[icon]](filestore/icontemplates/000006.png?1735213939)
![[icon]](filestore/icontemplates/000018.png?1735213939)
![[icon]](filestore/icontemplates/000015.png?1735213939)
![[icon]](filestore/icontemplates/000021.png?1735213939)
![[icon]](filestore/icontemplates/000052.png?1735213939)
![[image]](./views/frontend/resources/images/pdf-1.png)
![[product thumbnail]](filestore/product_captionimg/000027.jpg?1735213939)
![[product thumbnail]](filestore/product_captionimg/000028.jpg?1735213939)
![[product thumbnail]](filestore/product_captionimg/000034.jpg?1735213939)
![[product thumbnail]](filestore/product_captionimg/000053.jpg?1735213939)
E12
![[dimension drawing option]](filestore/product_dimensionsimg/000029/E12-DIM-01.jpg?1735213939)
E12
Specification
| LED type | Samsung LM281B tape |
| CRI | 80+ |
| Bin code | Single bin |
| LED lifetime | 50,000hrs L70 |
| Control gear | Remote (included) |
| IP rating | IP20 |
E12

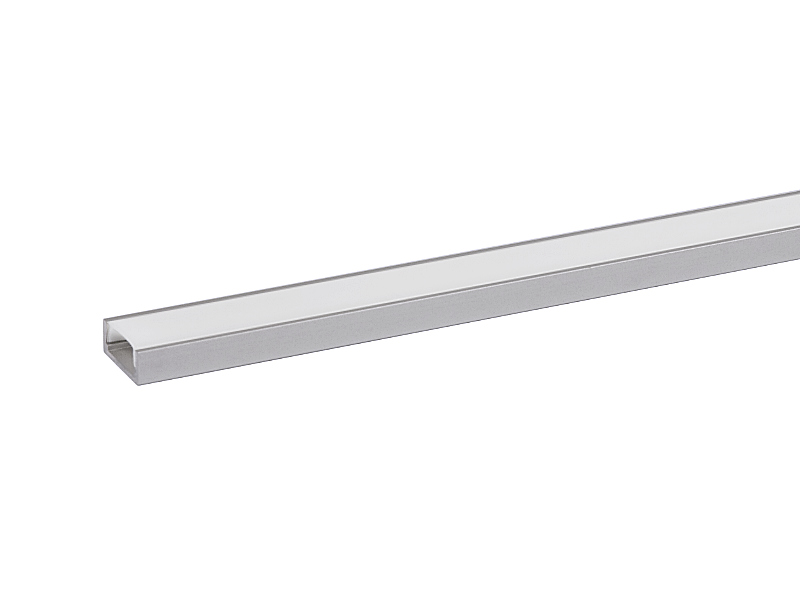

![[colour option]](filestore/colour_options/000029/E12-A.jpg?1735213939)

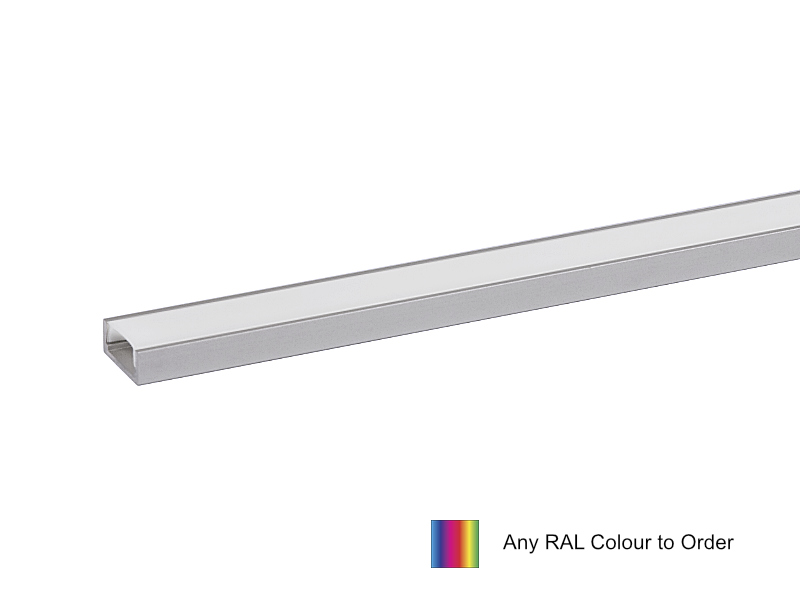

![[colour option]](filestore/colour_options/000029/E12-RAL.jpg?1735213939)
E12
Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us
