E10
E10

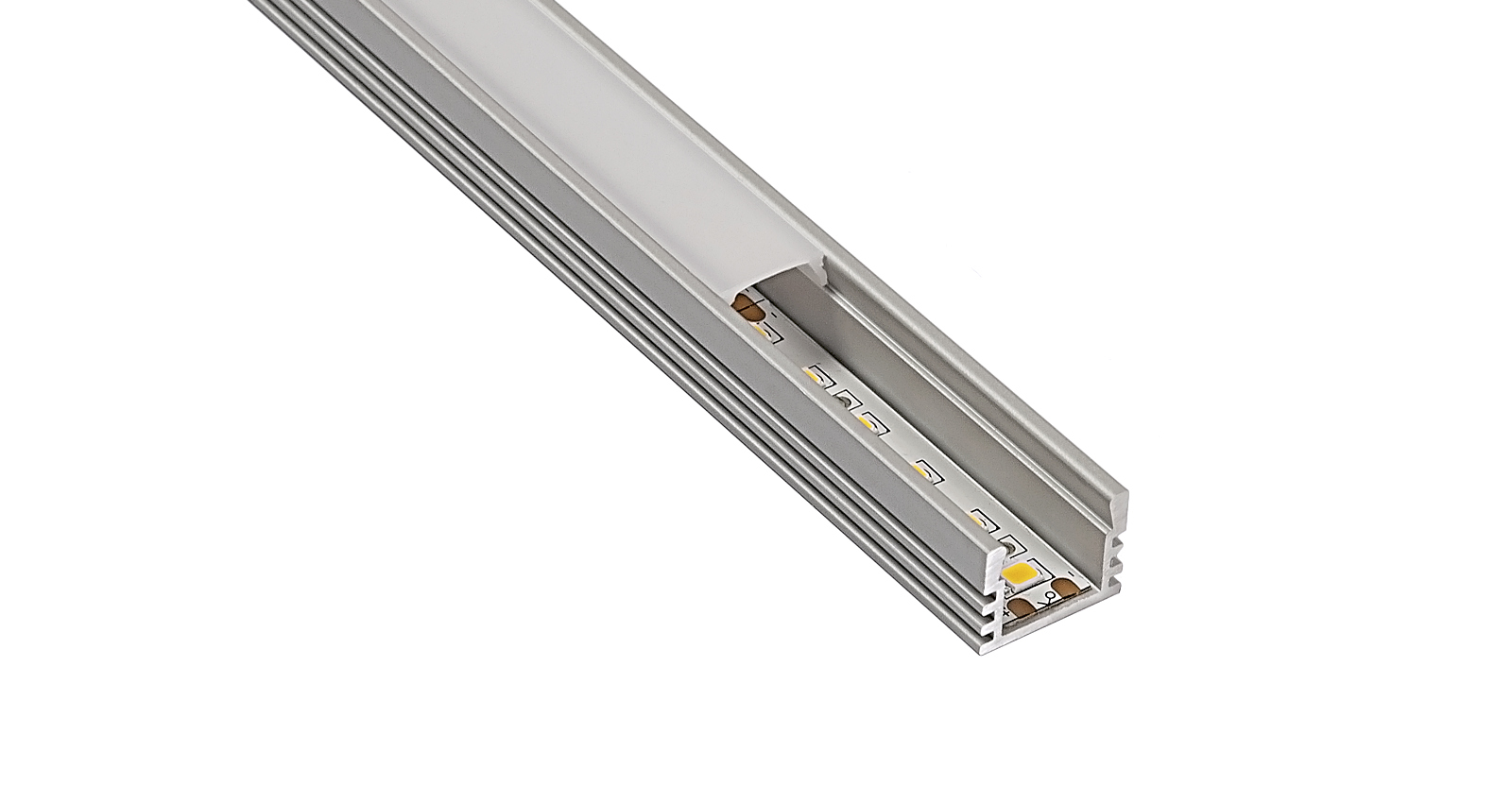

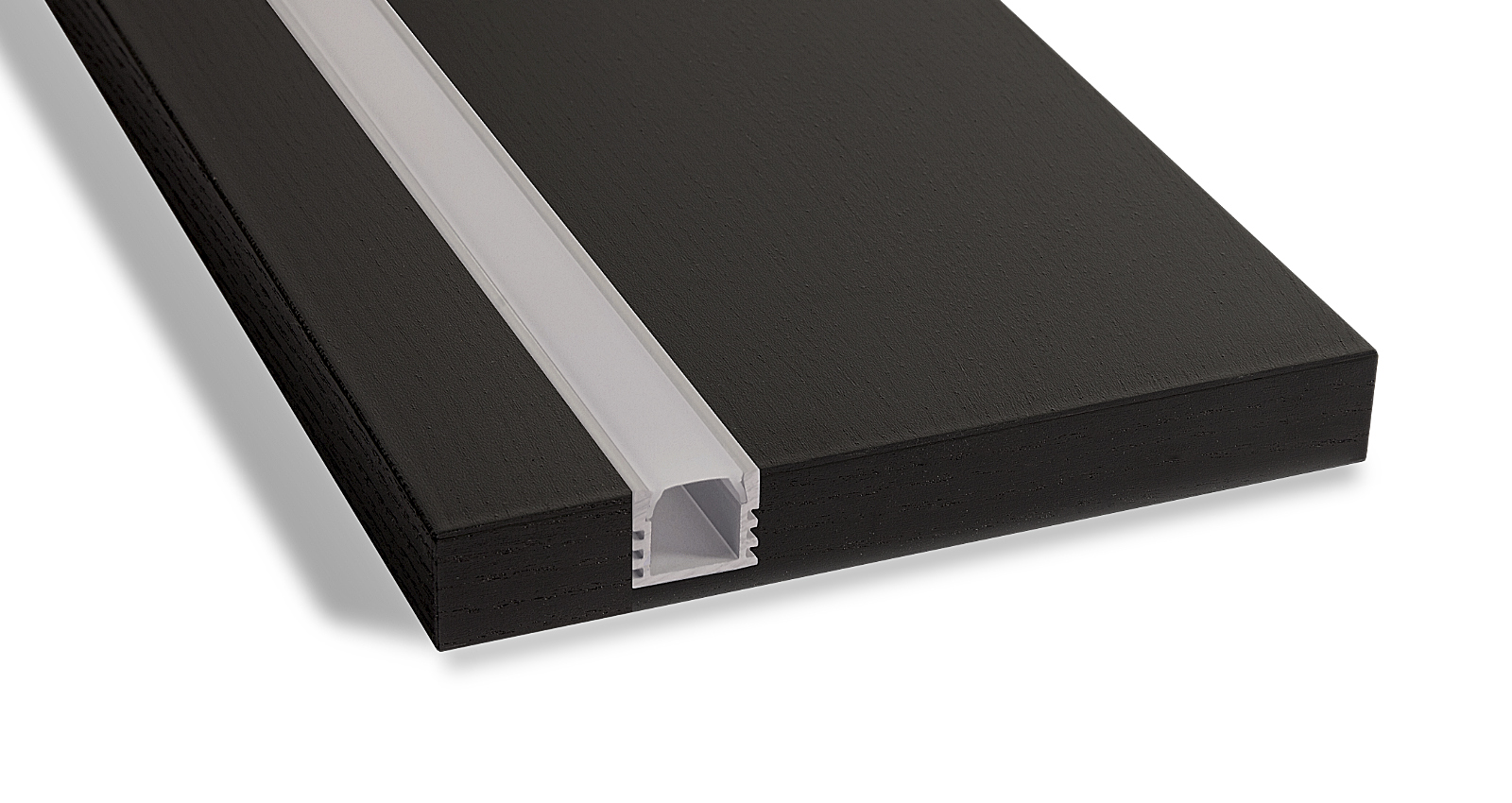

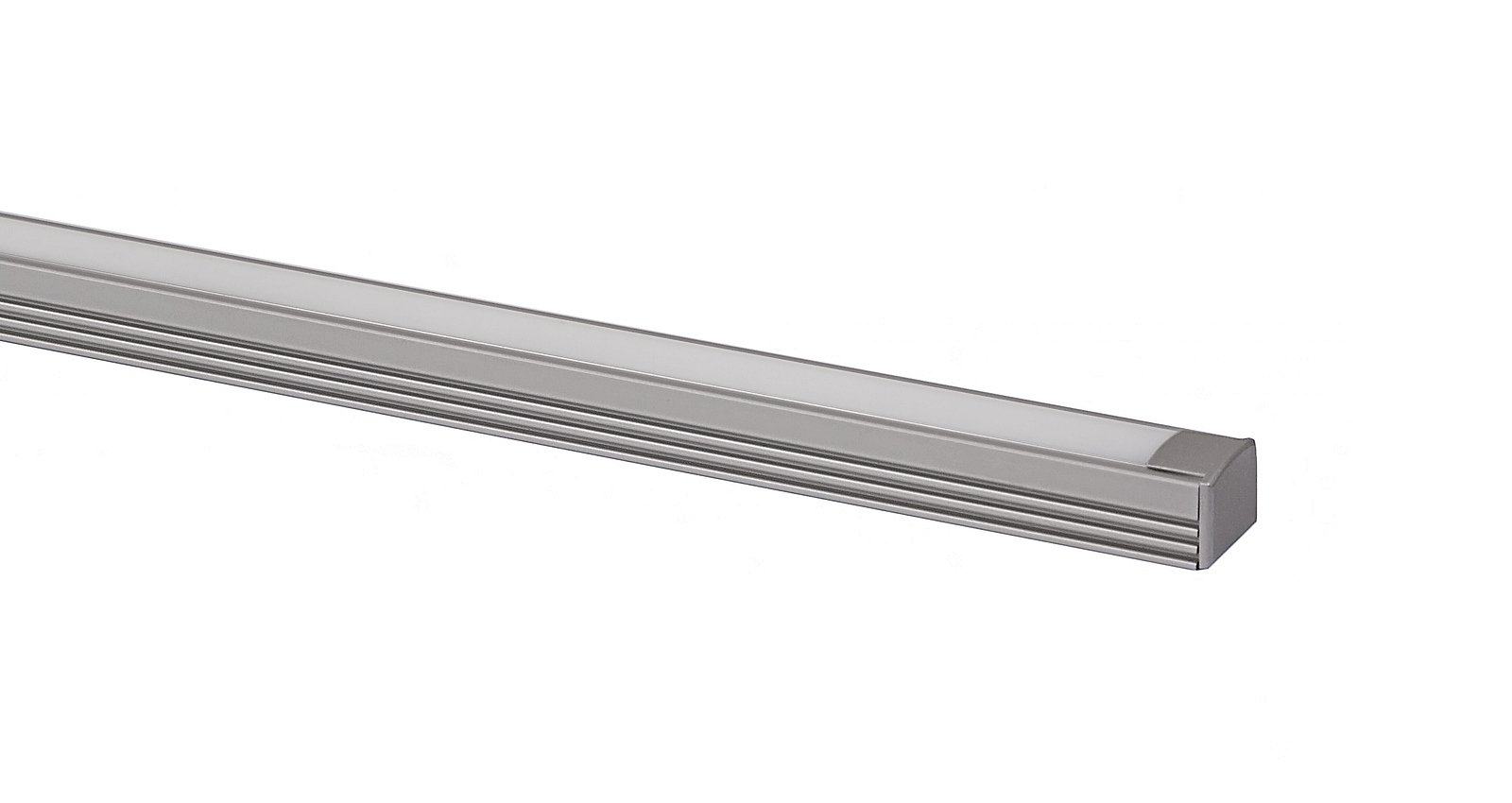

Made to measure surface or recessed mounted LED linear system offered in 3 light output levels. The aluminium extrusion acts as a heat sink maximising performance and life of the LED strip. Opal diffuser ensures constant light without spotting or shadow lines. Supplied with remote control gear. Bespoke product please contact our product specialist
- up to 1125 lumen/m output
- continuous uniform light
- Samsung single bin chip
- 4 oz PCB for optimum heat dissipation
- phase, 1-10V or Dali dimmable
![[icon]](filestore/icontemplates/000039.png?1735215535)
![[icon]](filestore/icontemplates/000004.png?1735215535)
![[icon]](filestore/icontemplates/000048.png?1735215535)
![[icon]](filestore/icontemplates/000009.png?1735215535)
![[icon]](filestore/icontemplates/000006.png?1735215535)
![[icon]](filestore/icontemplates/000018.png?1735215535)
![[icon]](filestore/icontemplates/000015.png?1735215535)
![[icon]](filestore/icontemplates/000021.png?1735215535)
![[icon]](filestore/icontemplates/000052.png?1735215535)
![[image]](./views/frontend/resources/images/pdf-1.png)
![[product thumbnail]](filestore/product_captionimg/000064.jpg?1735215535)
![[product thumbnail]](filestore/product_captionimg/000028.jpg?1735215535)
![[product thumbnail]](filestore/product_captionimg/000029.jpg?1735215535)
![[product thumbnail]](filestore/product_captionimg/000051.jpg?1735215535)
E10

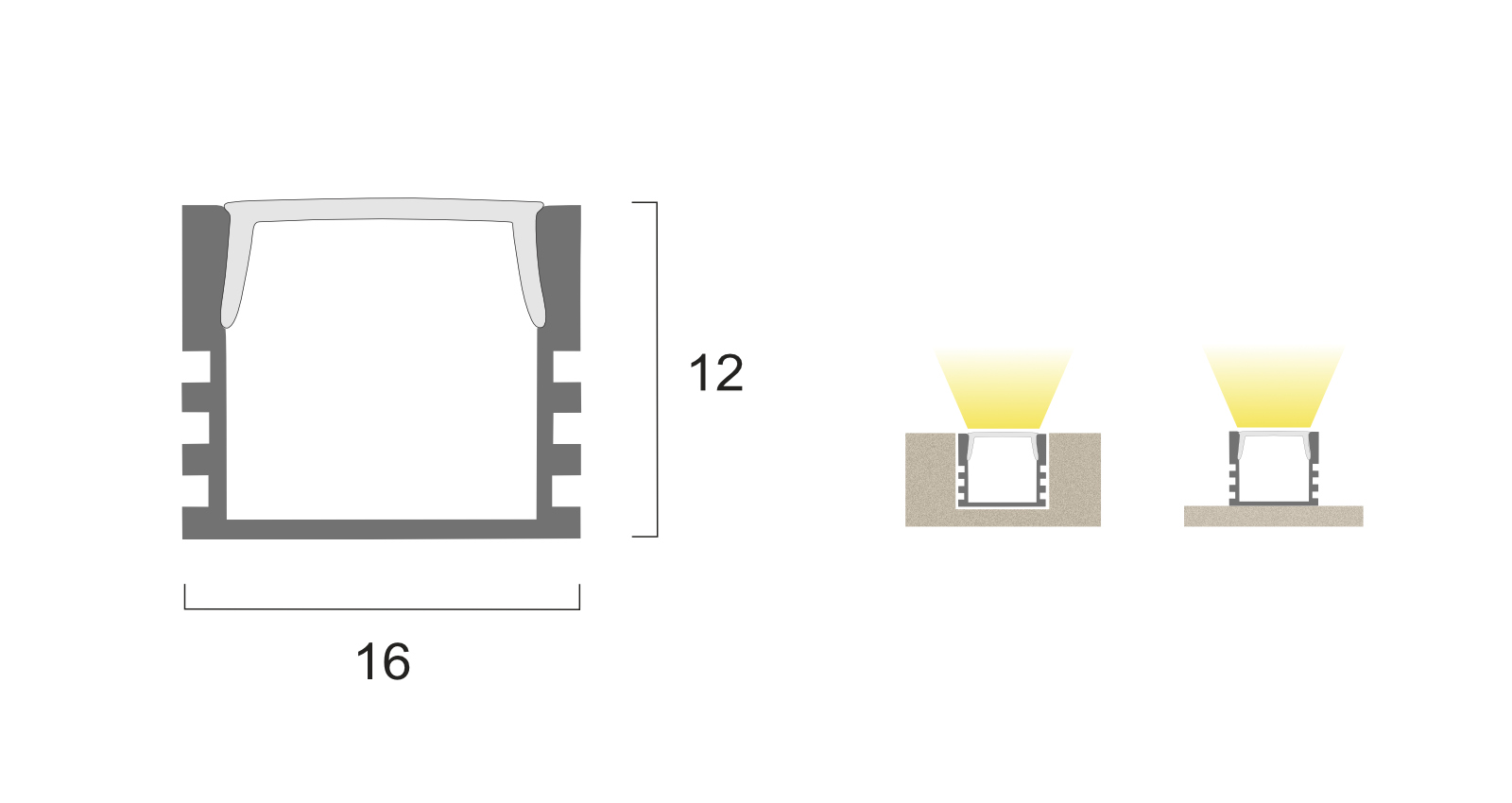

![[dimension drawing option]](filestore/product_dimensionsimg/000027/E10-DIM-01.jpg?1735215535)
E10
Specification
| LED type | Samsung LM281B tape |
| Luminaire efficacy | Up to 63 lm/w |
| Luminaire luminous flux | Up to 1125 lm/m |
| CRI | 80+ |
| Bin code | Single bin |
| LED lifetime | 50,000hrs L70 |
| Control gear | Remote (included) |
| IP rating | IP20 |
E10

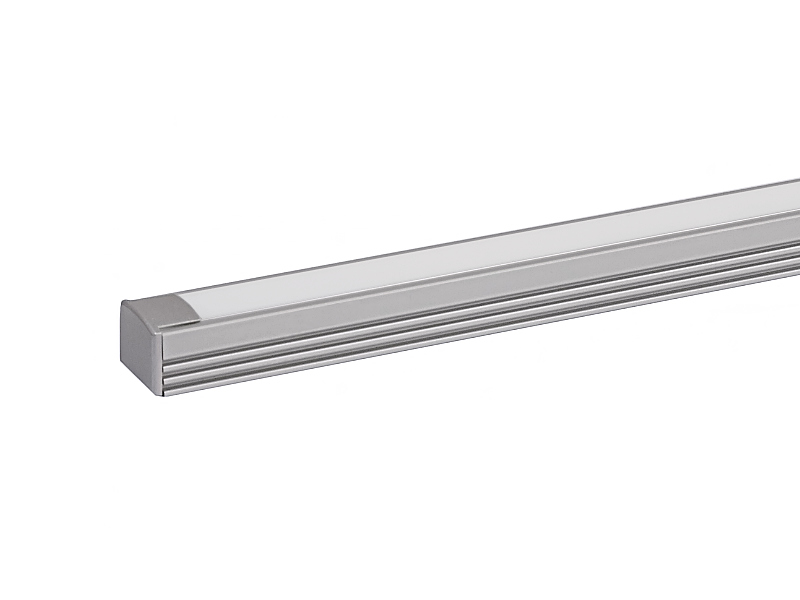

![[colour option]](filestore/colour_options/000027/E10-A.jpg?1735215535)

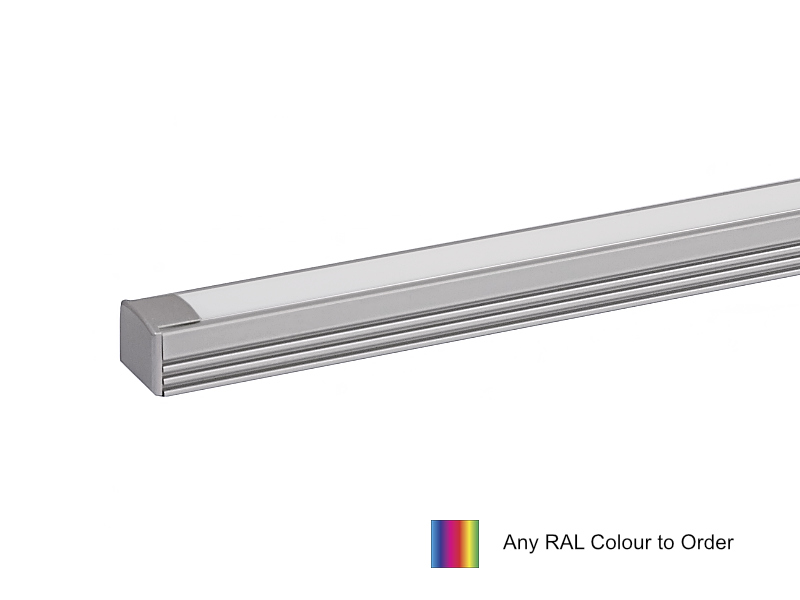

![[colour option]](filestore/colour_options/000027/E10-RAL.jpg?1735215535)
E10
Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us
