Arno Asymmetric

Arno Asymmetric

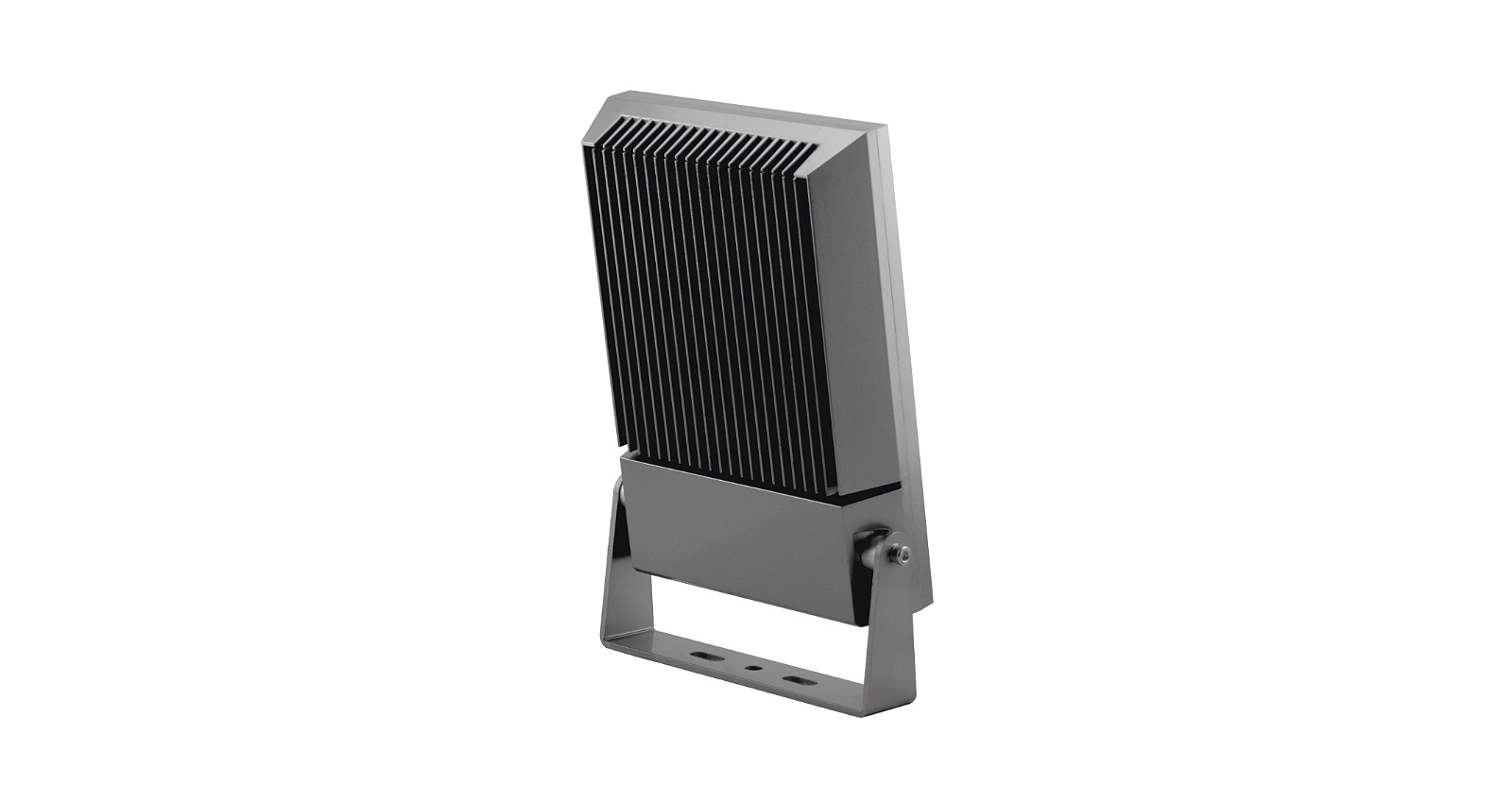

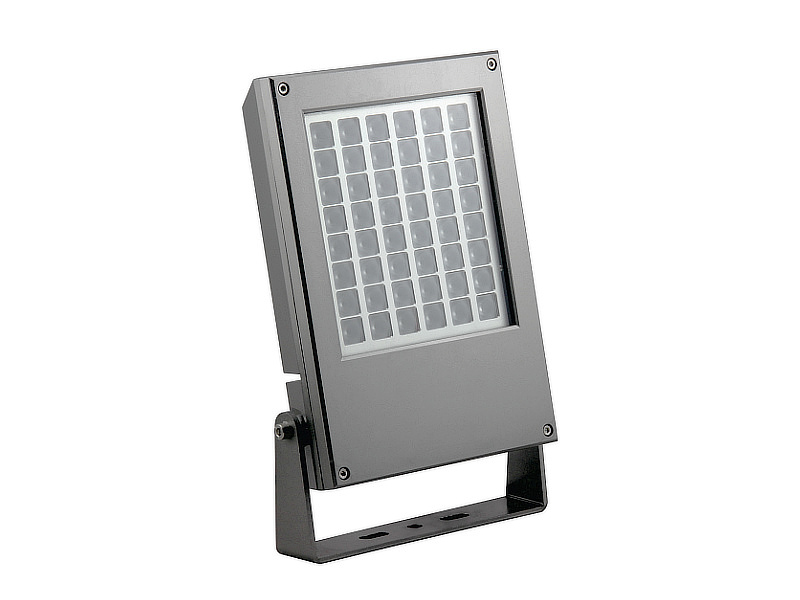

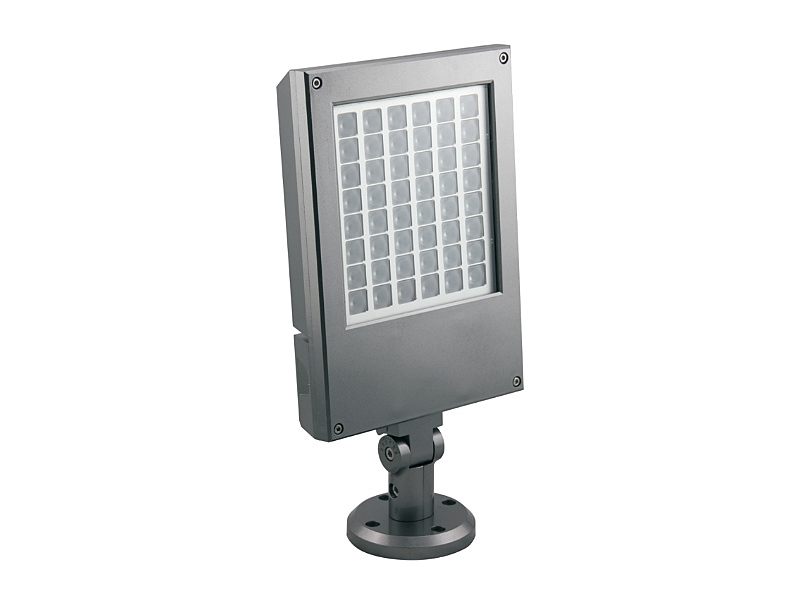

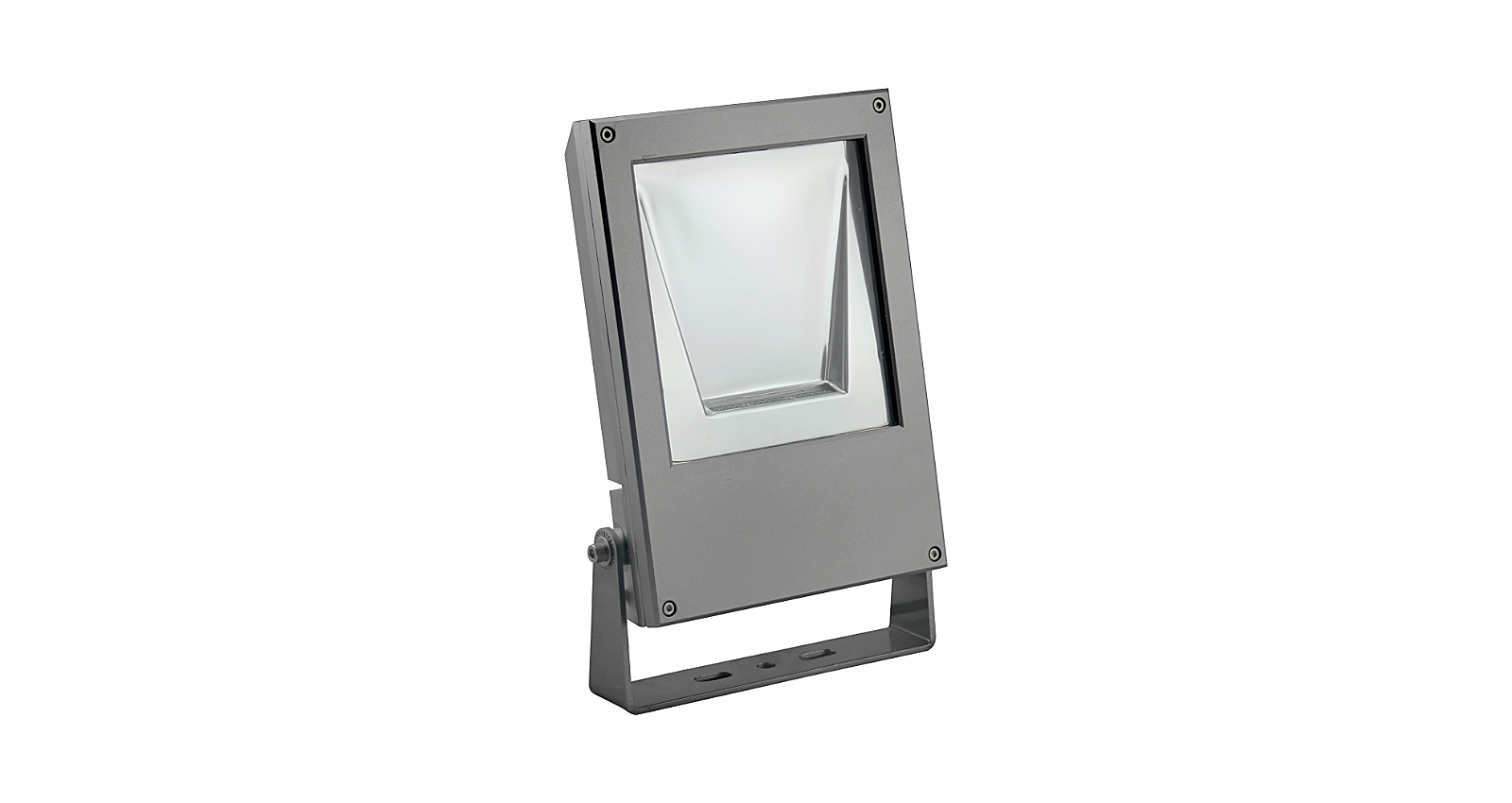

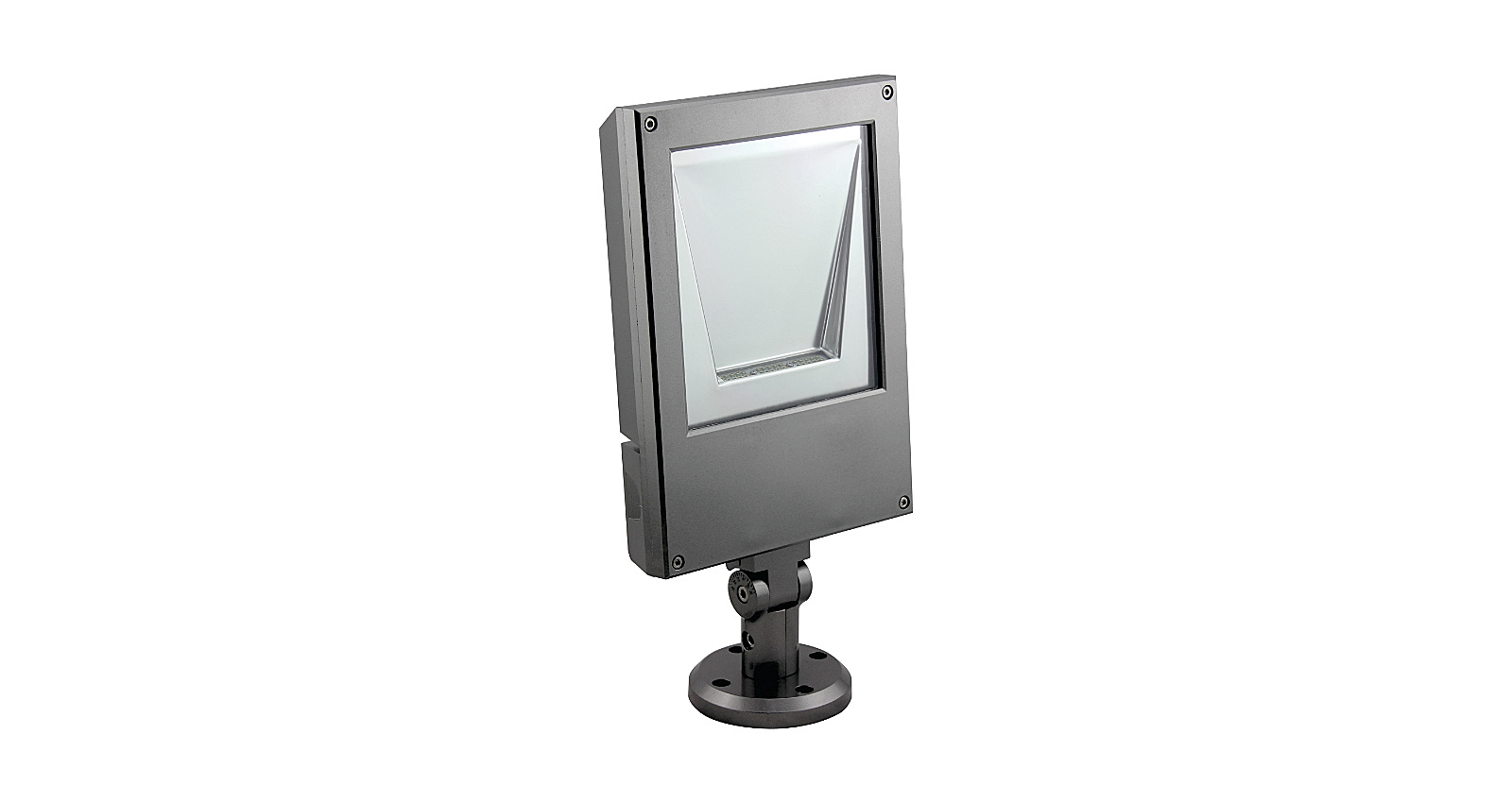

Arno Asymmetric IP66 exterior adjustable floodlight with powdered coated high pressure die-cast aluminium body fitted with 8mm tempered glass. The slim stylish 2 part body features separate heat dissipation for both the Cree LEDs and control gear ensuring optimum performance and longevity. Available with either stirrup bracket or circular base mount with graduated scale for accurate tilt adjustment.

  • up to 4067 lumen output
  • IP66 protection
  • asymmetrical light output
  • die-cast body
  • base or stirrup bracket mount
  • Dali control option
[icon]
[icon] [icon] [icon] [icon] [icon] [icon]

Arno Asymmetric

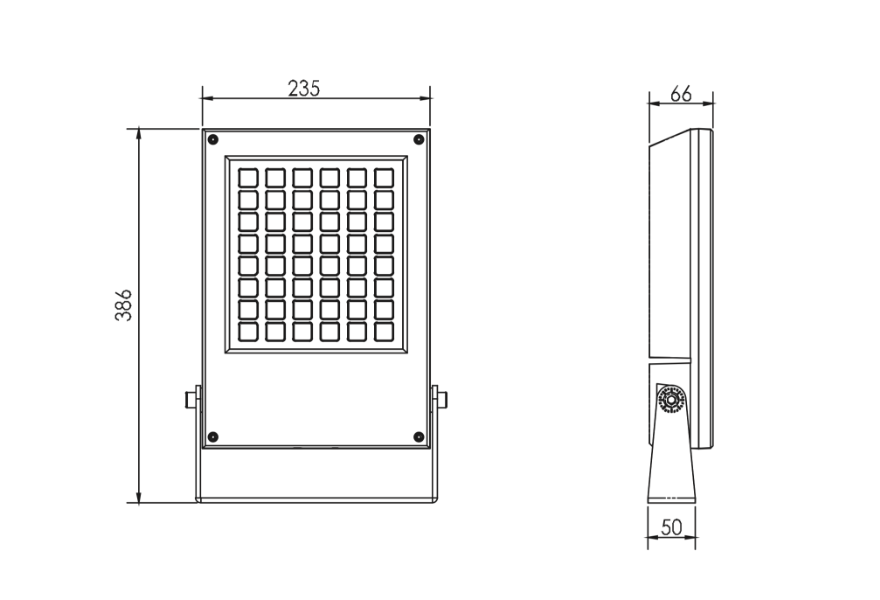

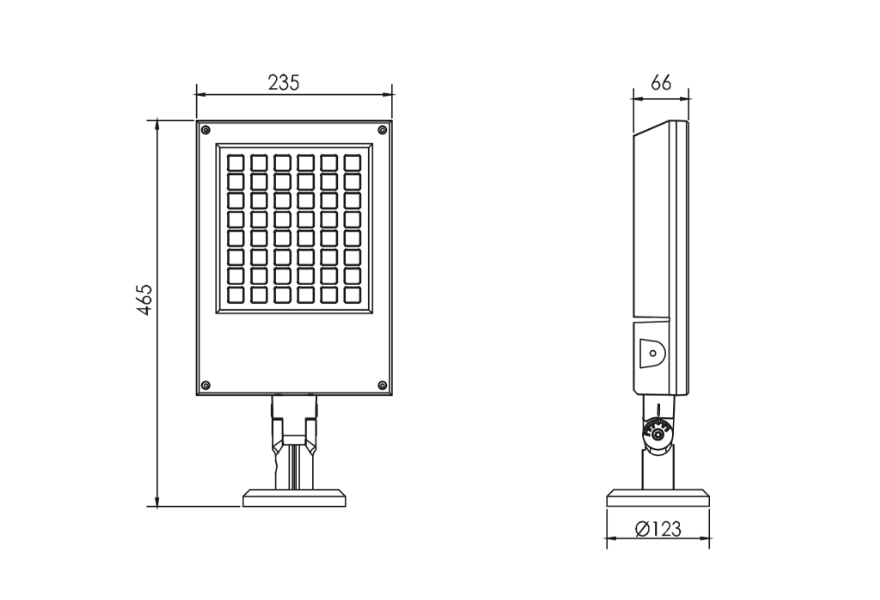

[dimension drawing option] [dimension drawing option]
1/2

Arno Asymmetric

Arno Asymmetric

Please select a finish combination option

Finish

Mounting

[colour option] [colour option]

Arno Asymmetric

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power
60W
CCT (°K)
Beam Angle
Finish
Mounting
Driver

Product Code:

AOA-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
