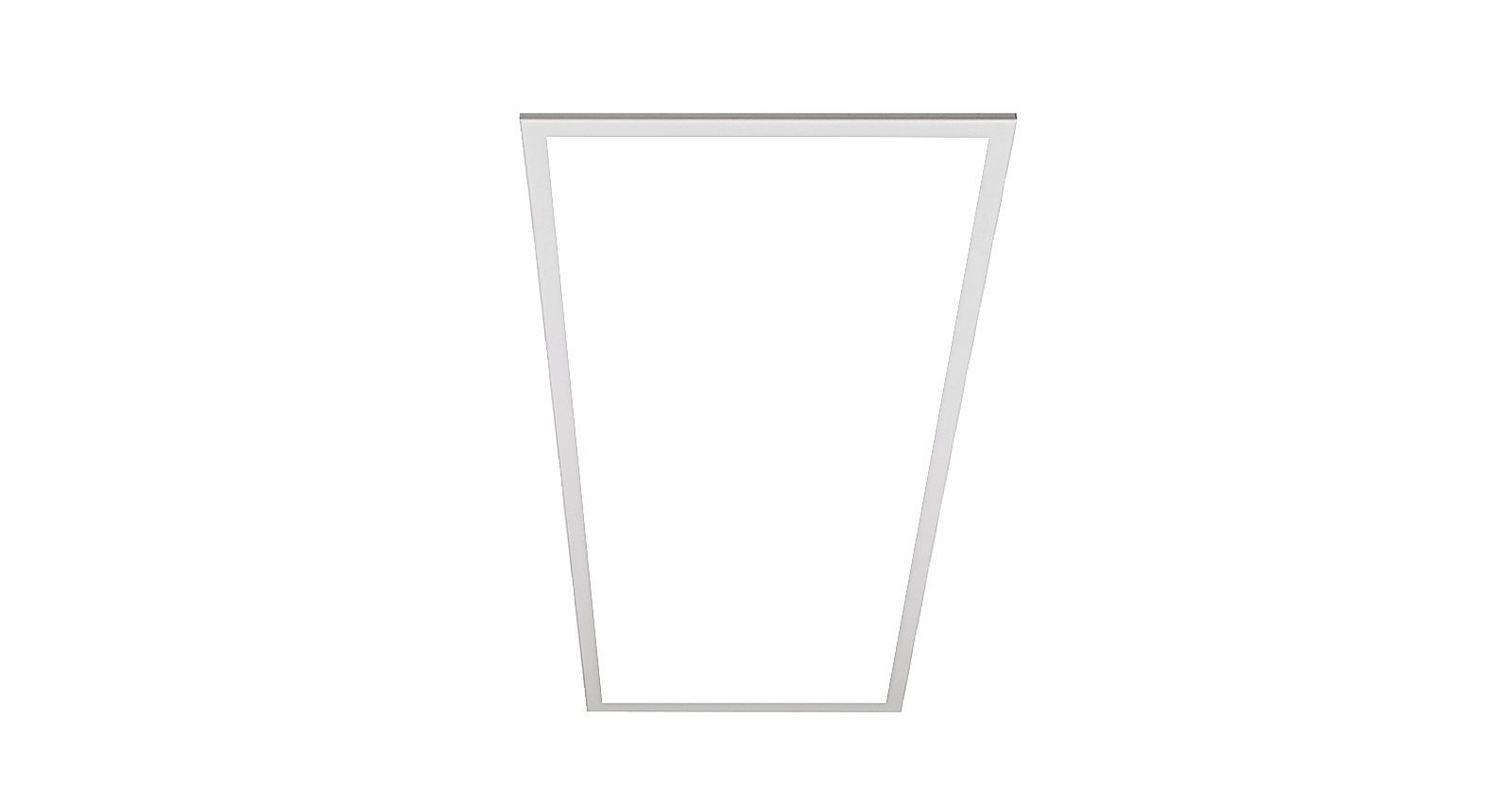

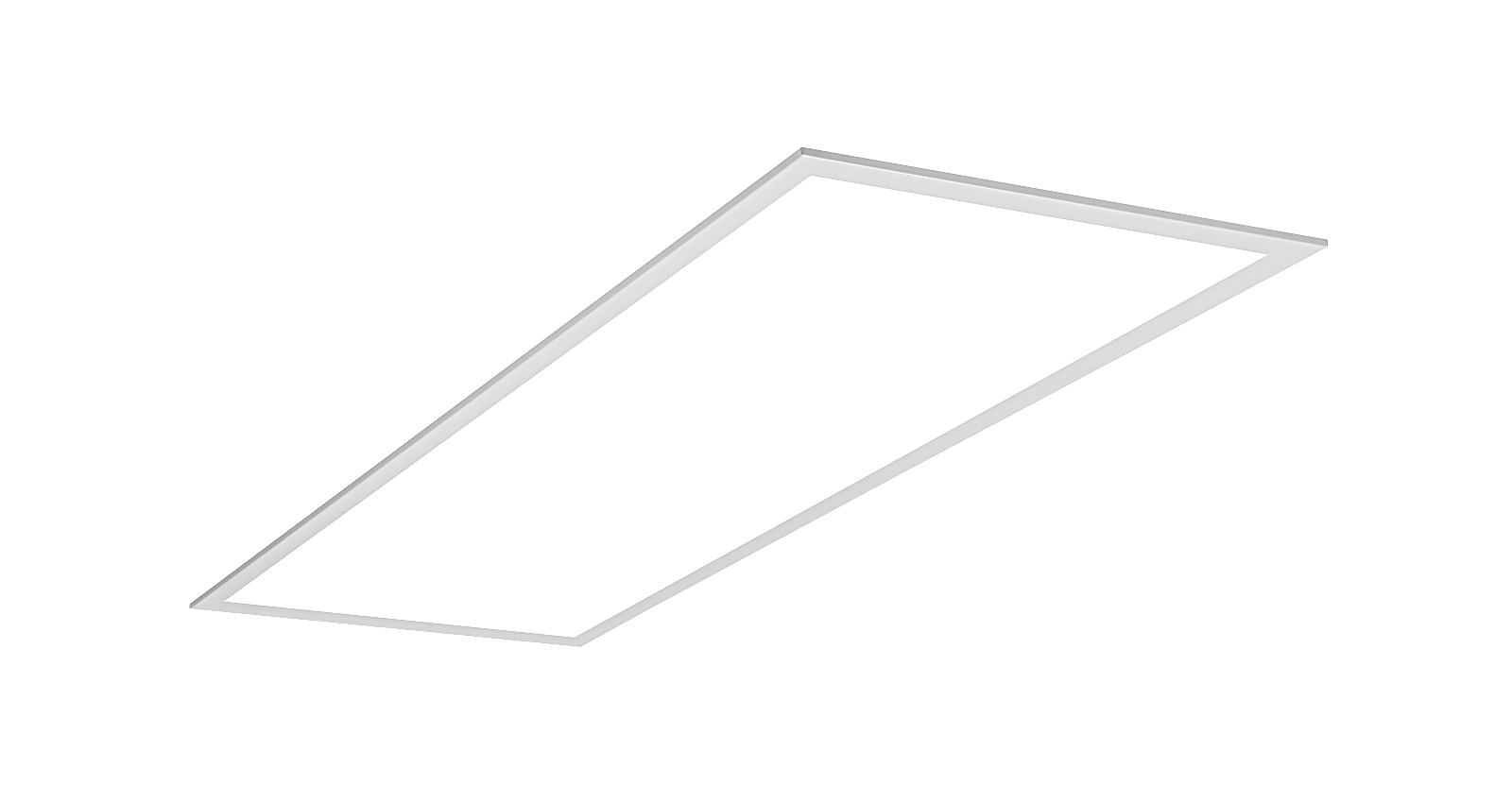

Duco Microprism

Duco Microprism

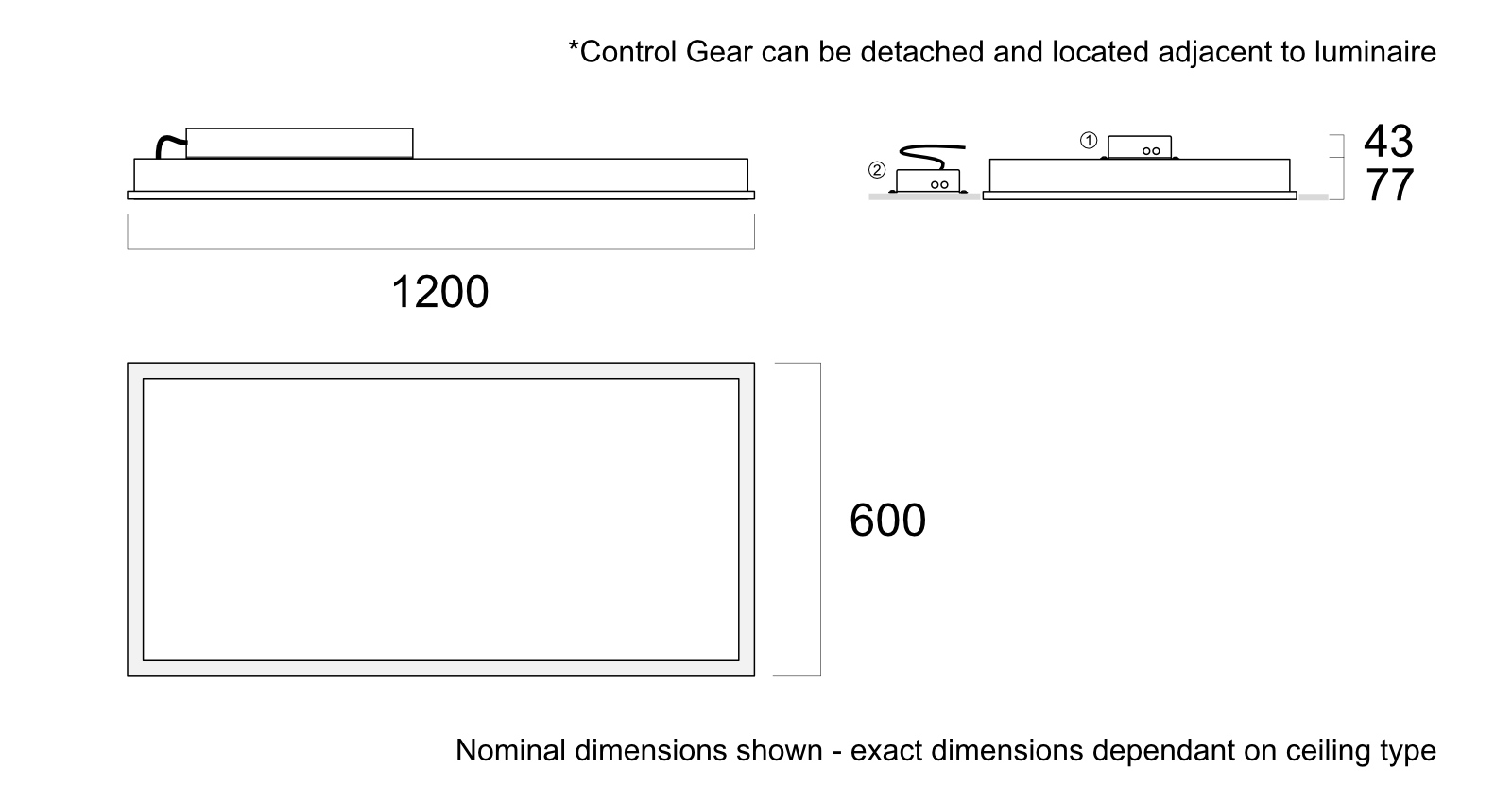

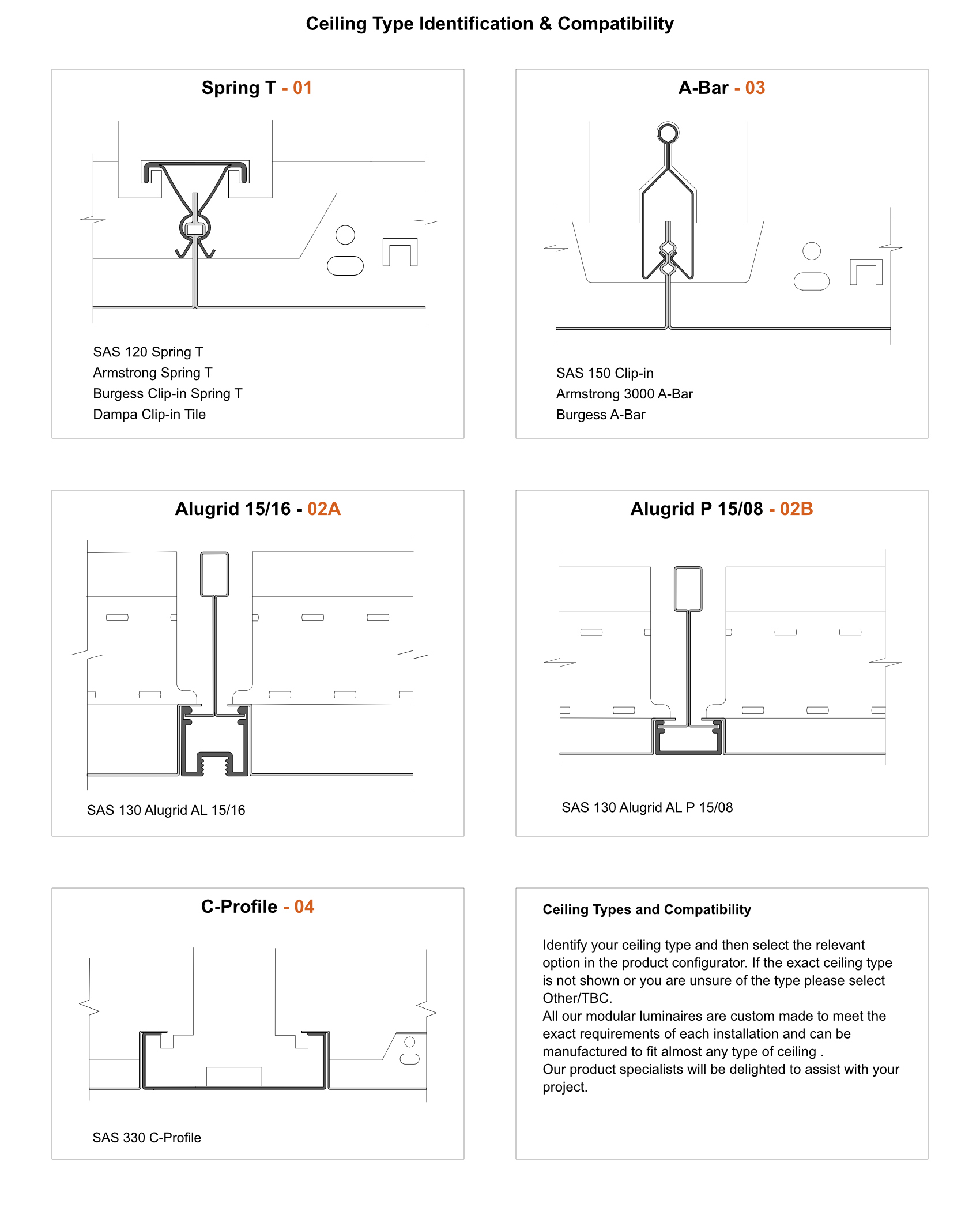

Duco Microprism recessed modular luminaire offering both IP65 protection and UGR<19 low glare illuminaton. The advanced multilayer microprism diffuser is sealed within a removable frame with no visible fixings. The luminaire can be manufactured to fit almost all metal pan and exposed grid ceiling types. Supplied with a prewired detachable gearbox which can be placed adjacent to the fitting in restricted height ceiling voids. Available with a 3 hour emergency back up option.

  • up to 10528 lumen output
  • IP65 sealed backlit microprism diffuser
  • UGR<19 compliant
  • Tridonic Dali dimmable control gear
  • 3 hour emergency option
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]

Duco Microprism

Specification

Version DCM6-47- DCM6-66- DCM6-86-
Nominal power (W) 47 66 86
LED type Tridonic QLE ADV5
Colour temperature 3000K, 4000K
Colour rendering index Ra>80
Colour consistency 3-step Macadam
Rated service life >72,000h L80/F10 at 60° Max.
Glare rating UGR<19
Optic Multi-layer Microprism
Control gear Integral
IP Rating IP65
Weight (Kg) 13.0

Duco Microprism

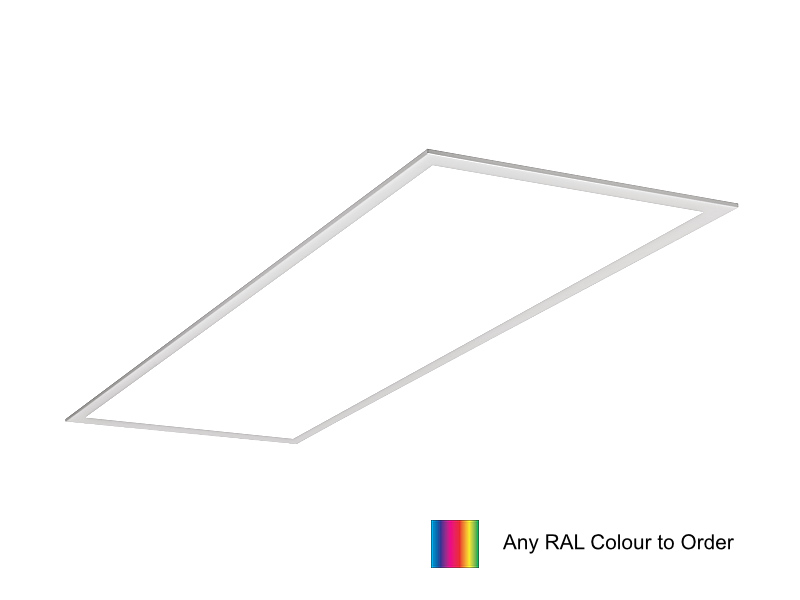

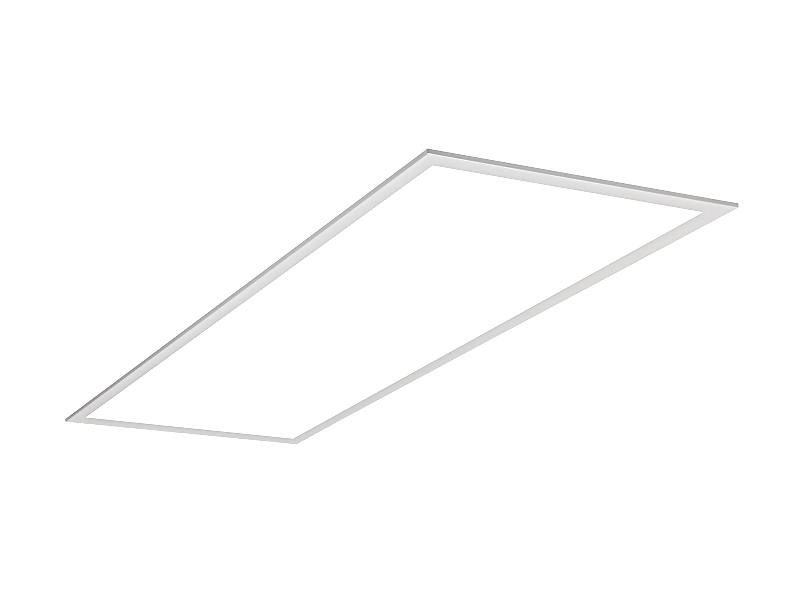

Please select a finish combination option

Finish

[colour option] [colour option]

Duco Microprism

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Product Code:

DCM6-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
