Note Microprism

Note Microprism

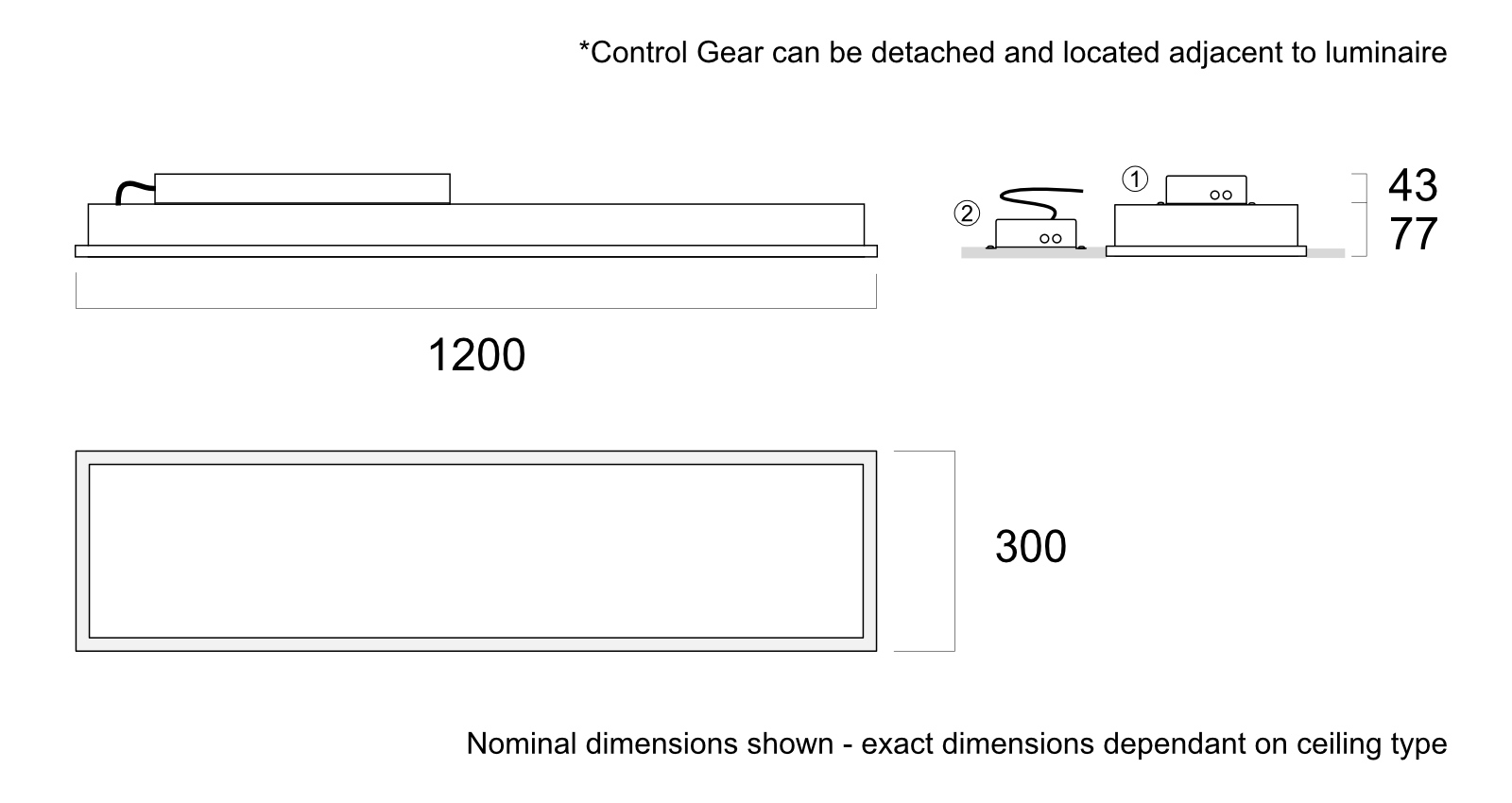

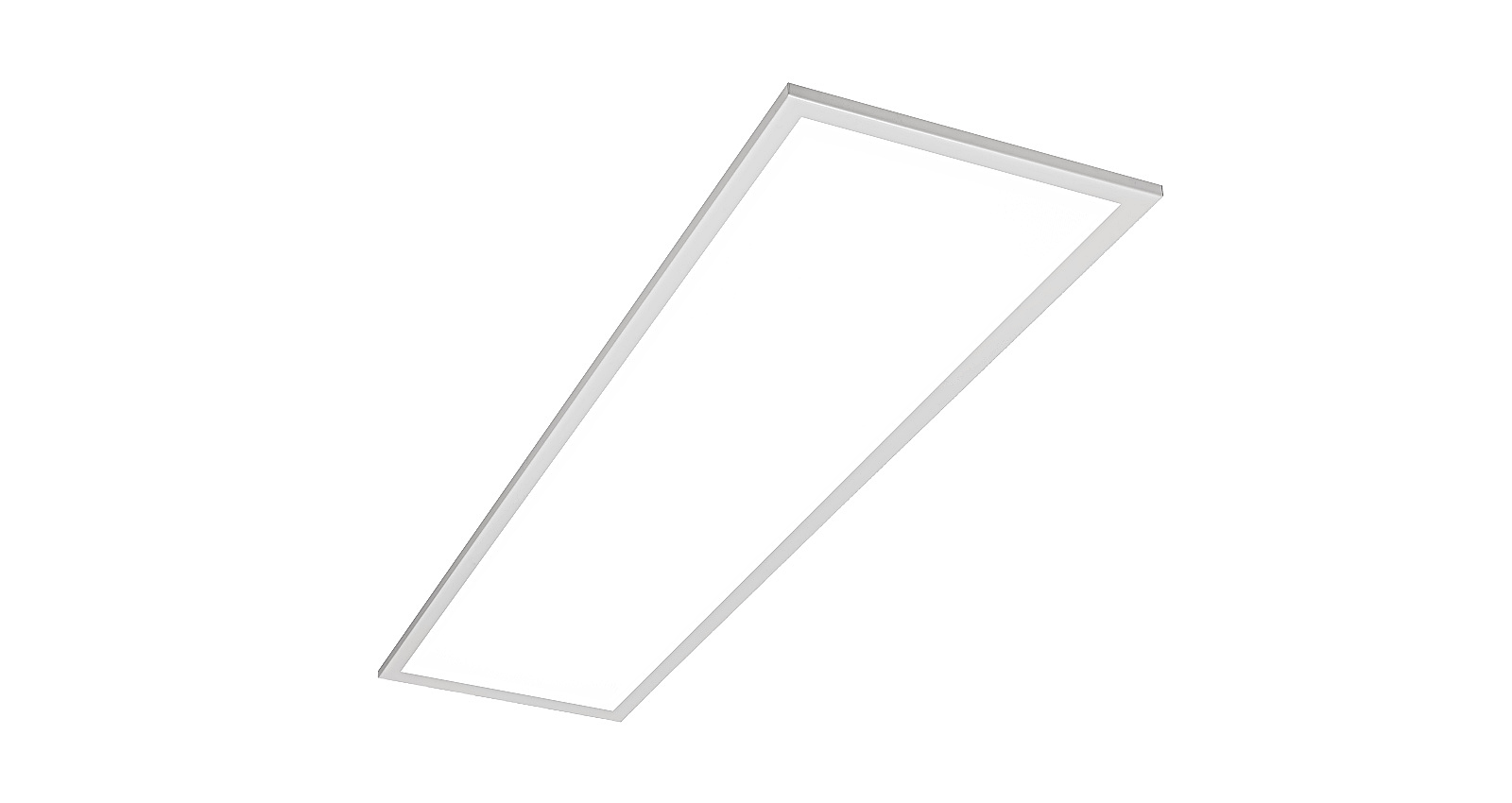

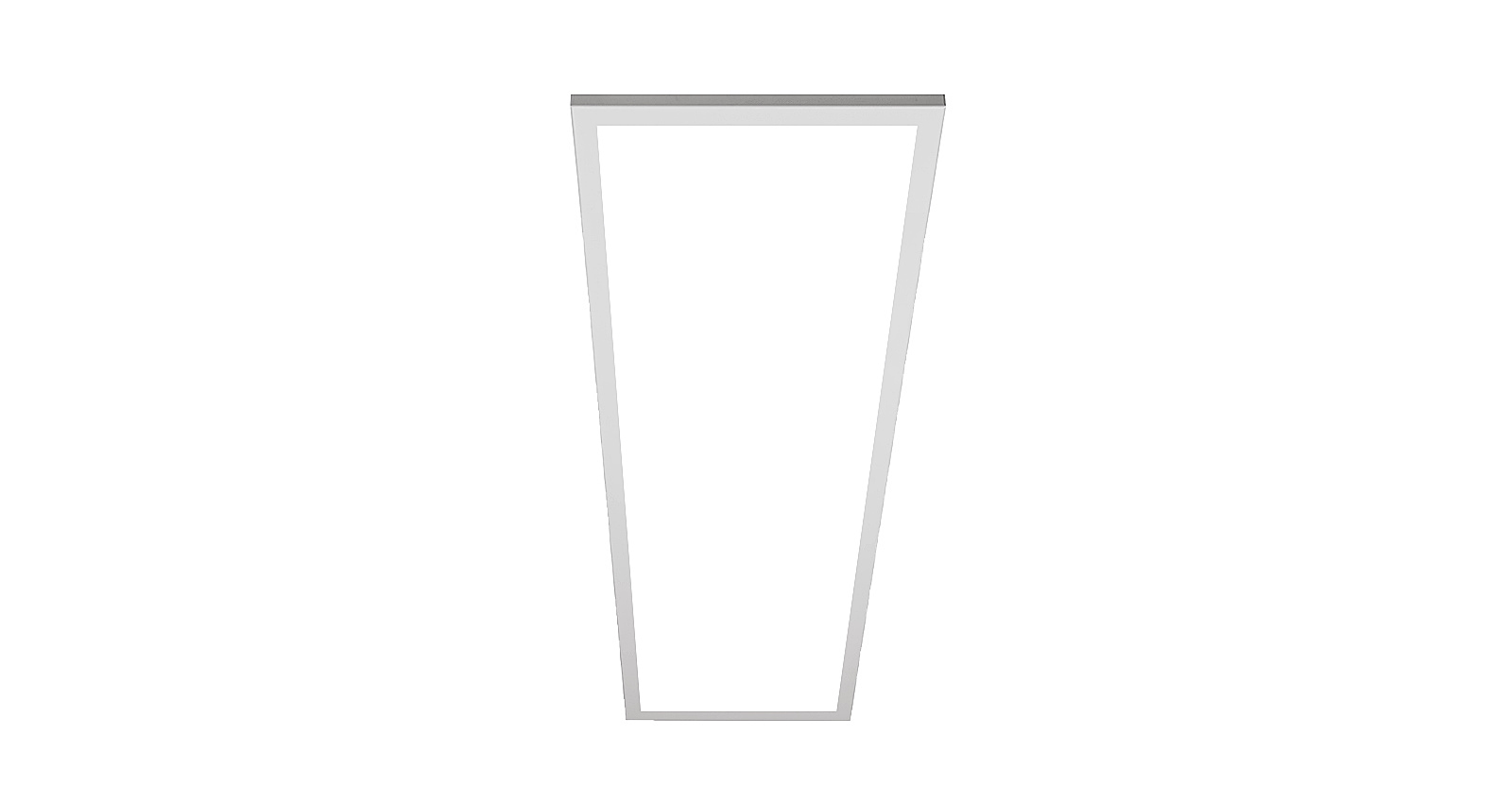

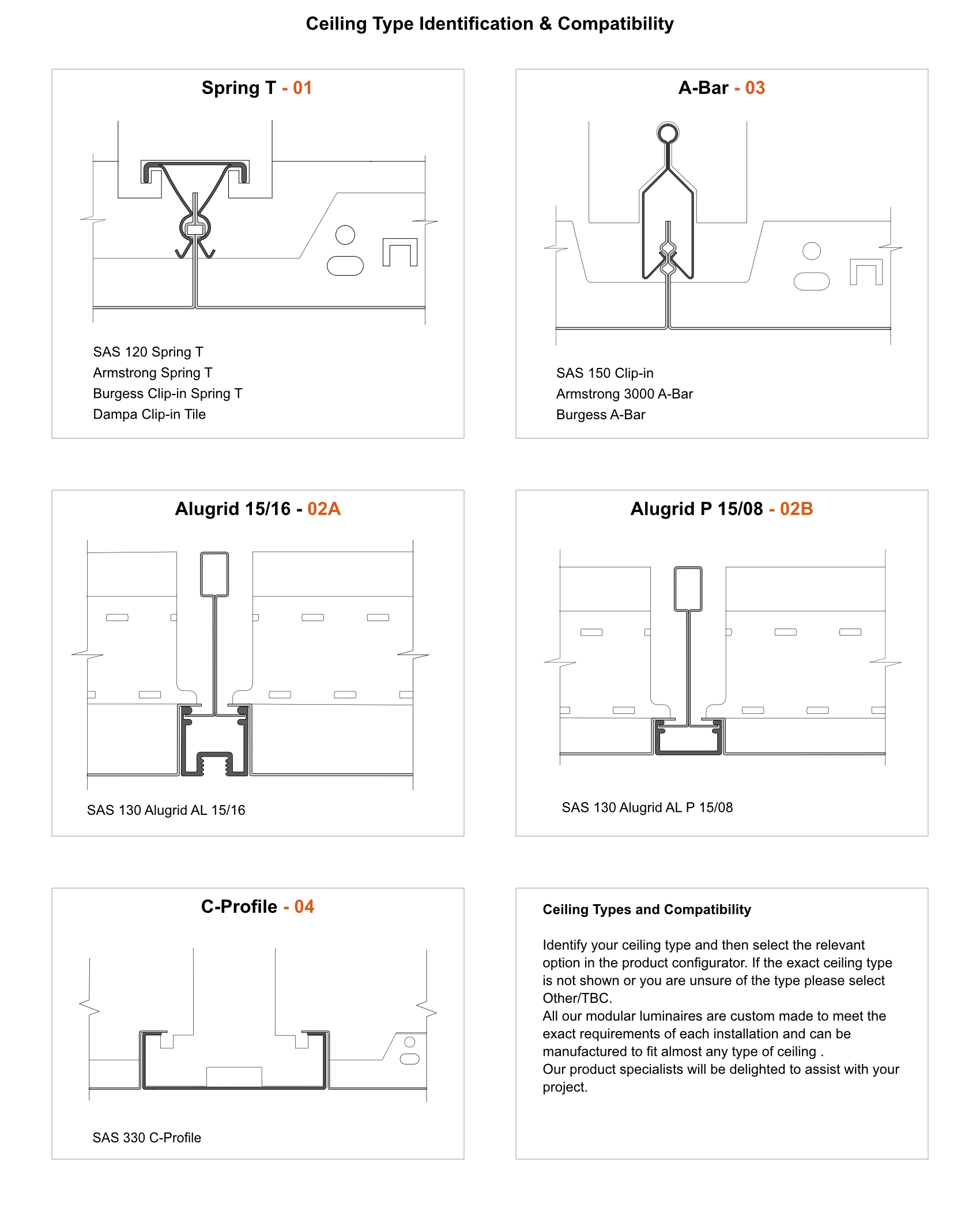

Note Microprism recessed modular luminaire with advanced multilayer microprism diffuser offering high lumen output combined with UGR<19 glare control. The latest Tridonic LED technology ensures optimum energy efficiency. The luminaire can be manufactured to fit almost all metal pan and exposed grid ceiling types. Supplied with a prewired detachable gearbox which can be placed adjacent to the fitting in restricted height ceiling voids. Available with a 3 hour emergency back up option. Air handling facility is also available upon request.

  • up to 5472 lumen output
  • UGR<19 compliant
  • optional integral air handling
  • Tridonic Dali dimmable control gear
  • 3hr emergency option
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]

Note Microprism

Specification

Version NTM4-26- NTM4-32- NTM4-38- NTM4-44-
Nominal power (W) 26 32 38 44
LED type Tridonic QLE ADV5
Colour temperature 3000K, 4000K
Colour rendering index Ra>80
Colour consistency 3-step Macadam
Rated service life >72,000h L80/F10 at 60° Max.
Glare rating UGR<19
Optic Multi-layer Microprism
Control gear Integral
IP Rating IP40
Weight (Kg) 6.5

Note Microprism

Please select a finish combination option

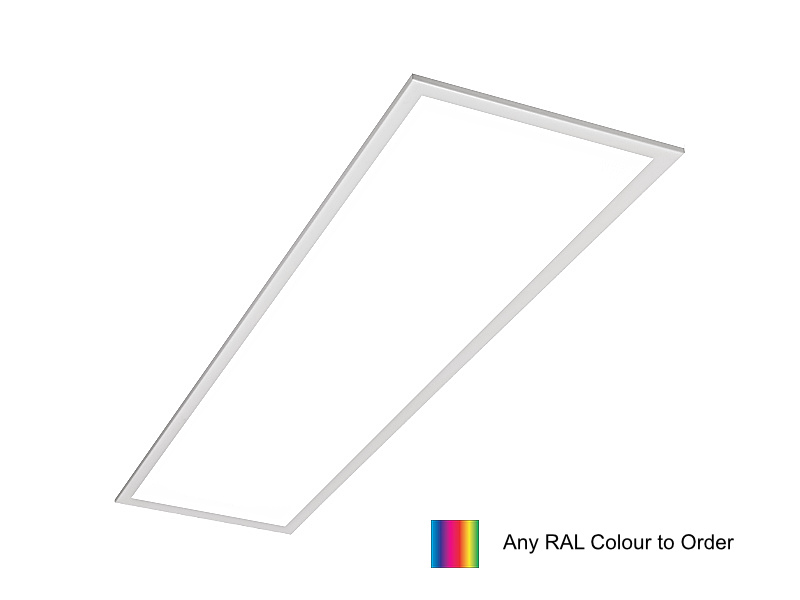

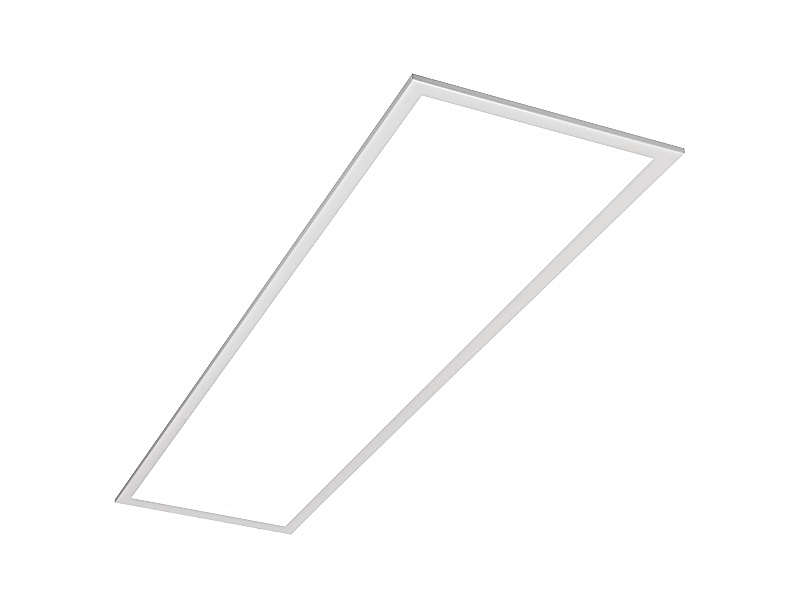

Finish

[colour option] [colour option]

Note Microprism

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Product Code:

NTM4-_-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
