Note Opal

Note Opal

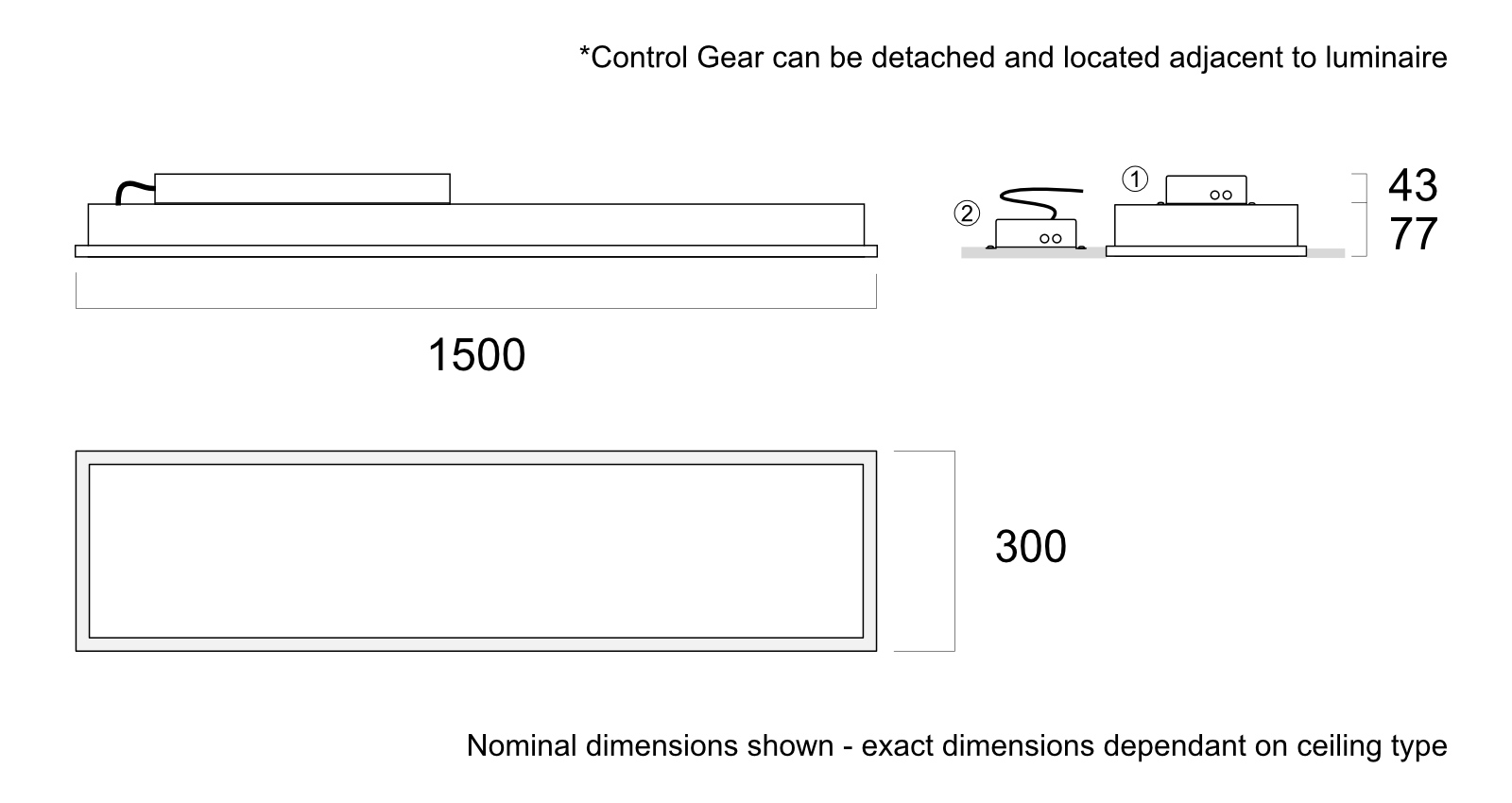

Note Opal recessed modular luminaire with an opal frost diffuser offering high lumen output. The latest Tridonic LED technology ensures optimum energy efficiency. The luminaire can be manufactured to fit almost all metal pan and exposed grid ceiling types. Supplied with a prewired detachable gearbox which can be placed adjacent to the fitting in restricted height ceiling voids. Available with a 3 hour emergency back up option. Air handling facility is also available upon request.

  • up to 6099 lumen output
  • optional integral air handling
  • Tridonic Dali dimmable control gear
  • 3 hour Emergency option

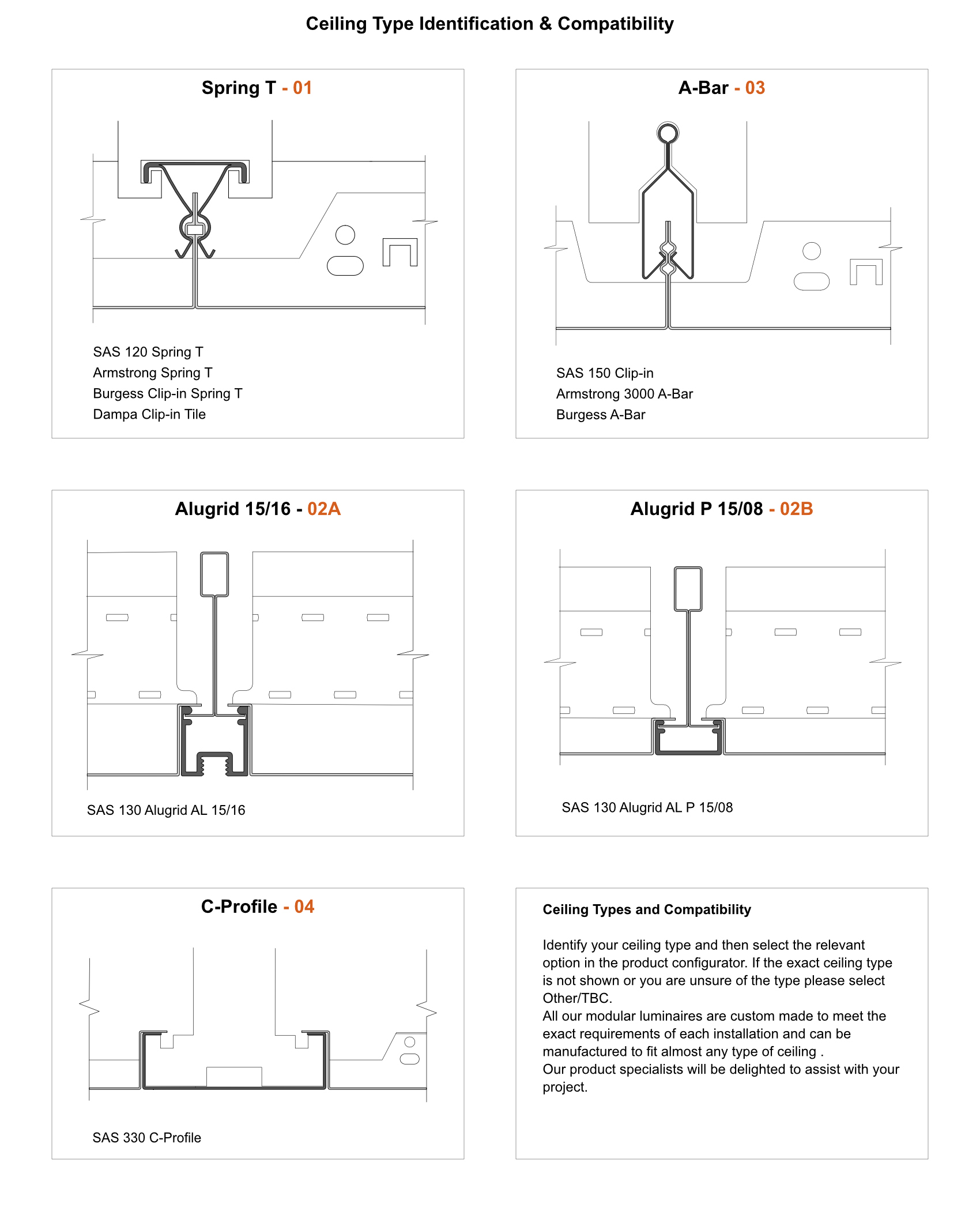

  • bespoke to fit most ceiling types
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]

Note Opal

Specification

Version NTO5-30- NTO5-38- NTO5-46-
Nominal power (W) 30 38 46
LED type Tridonic QLE ADV5
Colour temperature 3000K, 4000K
Colour rendering index Ra>80
Colour consistency 3-step Macadam
Rated service life >72,000h L80/F10 at 60° Max.
Optic Opal
Control gear Integral
IP Rating IP40
Weight (Kg) 7.6

Note Opal

Please select a finish combination option

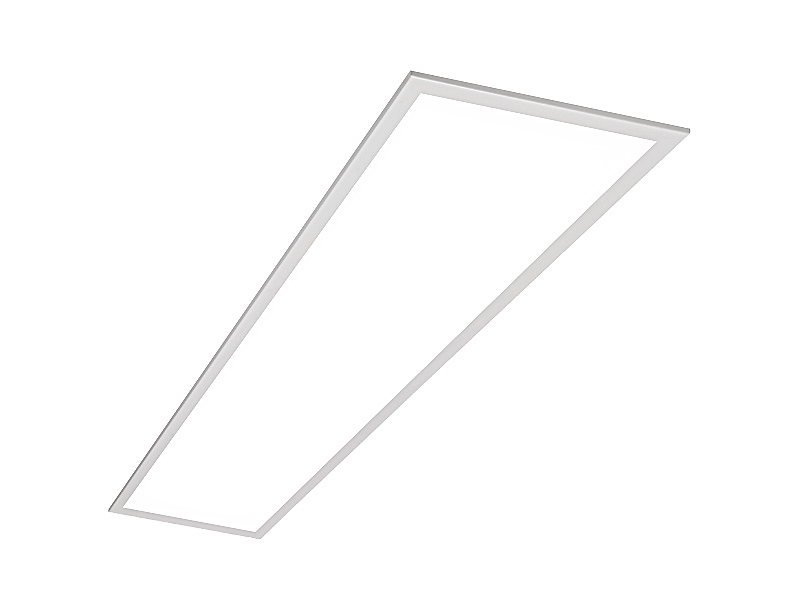

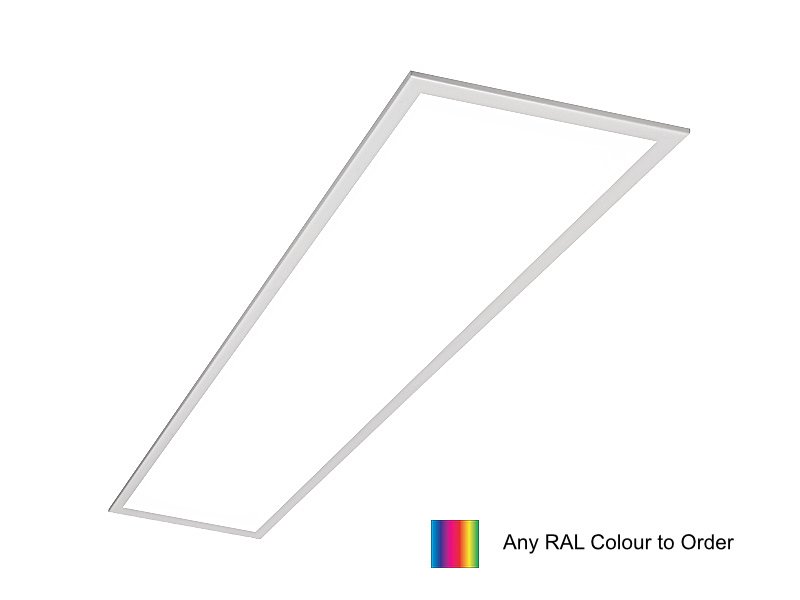

Finish

[colour option] [colour option]

Note Opal

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Product Code:

NTO5-_-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
