Deep 10
Deep 10

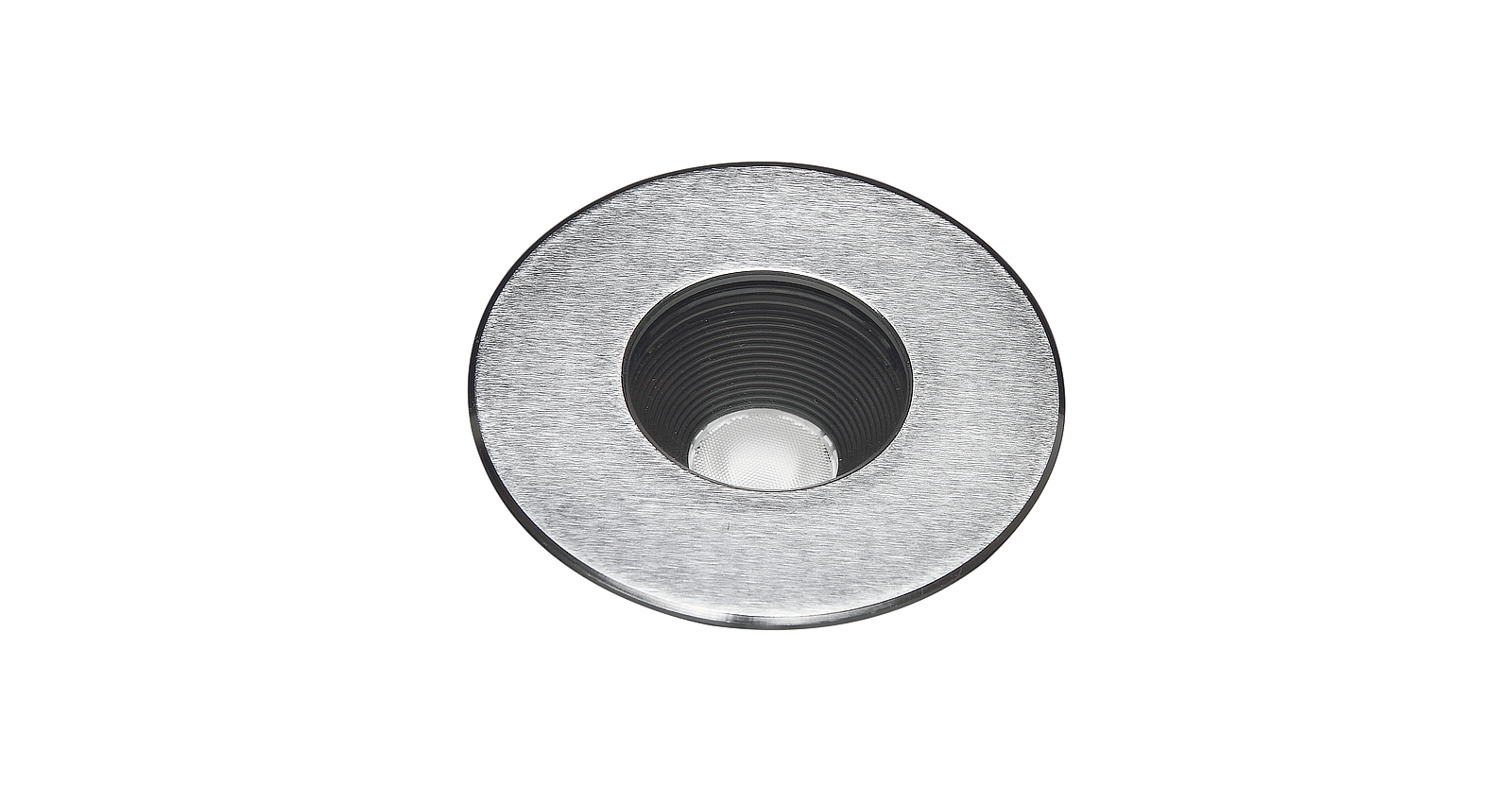

IP67 In-ground luminaire with ribbed baffle and deep set LED array for low glare illumination. Optional honeycomb louvre to further reduce glare. Hard chrome plated stainless steel 316 bezel fitted with 10mm tempered glass and die-cast powder coated housing gives 1195kg load capacity and IK09 rating. Supplied complete with ABS mounting sleeve and control gear.
- up to 230 lumen output
- IP67 rating

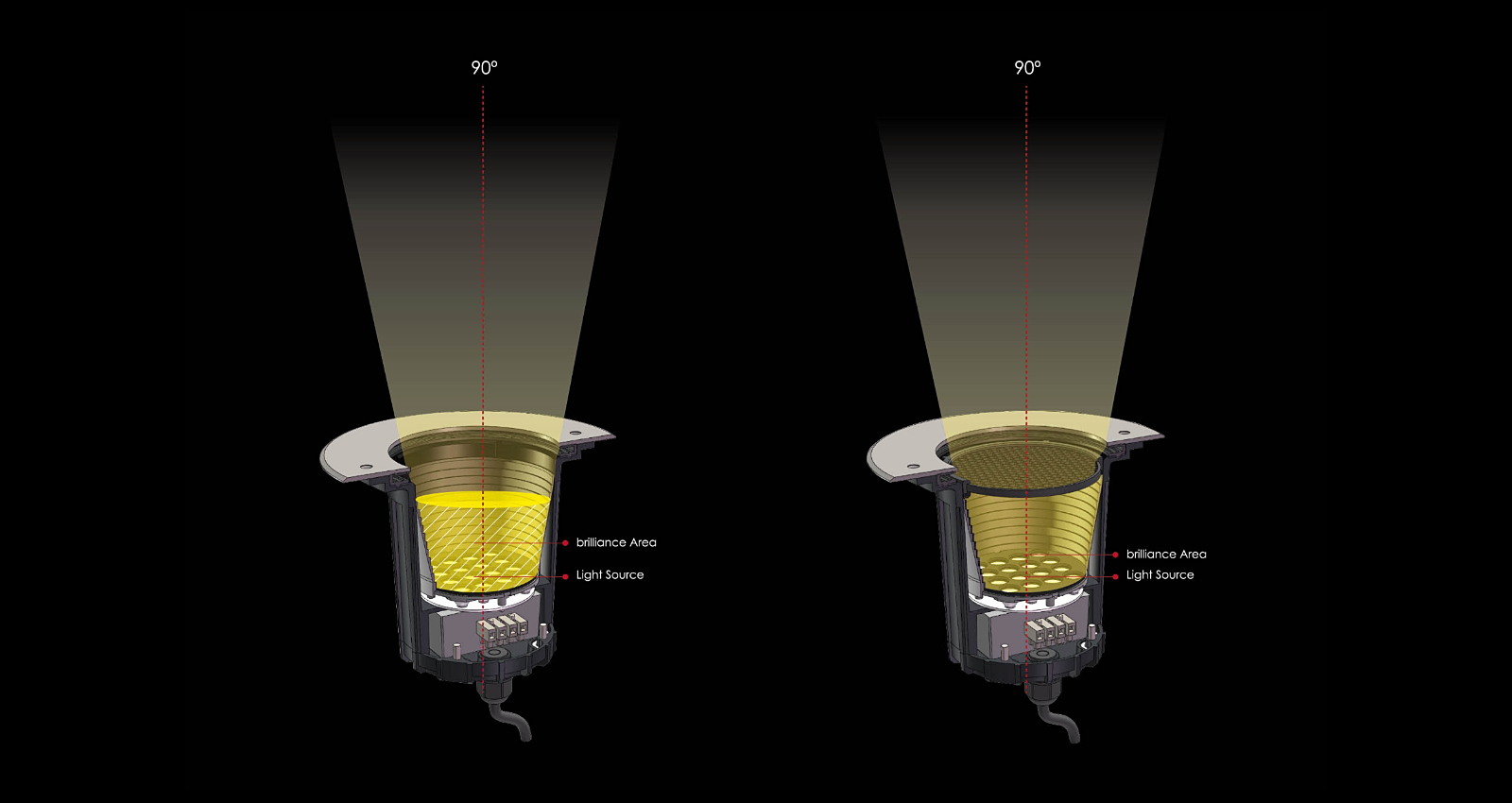

- ribbed baffle for low glare illumination
- Stainless steel 316 bezel

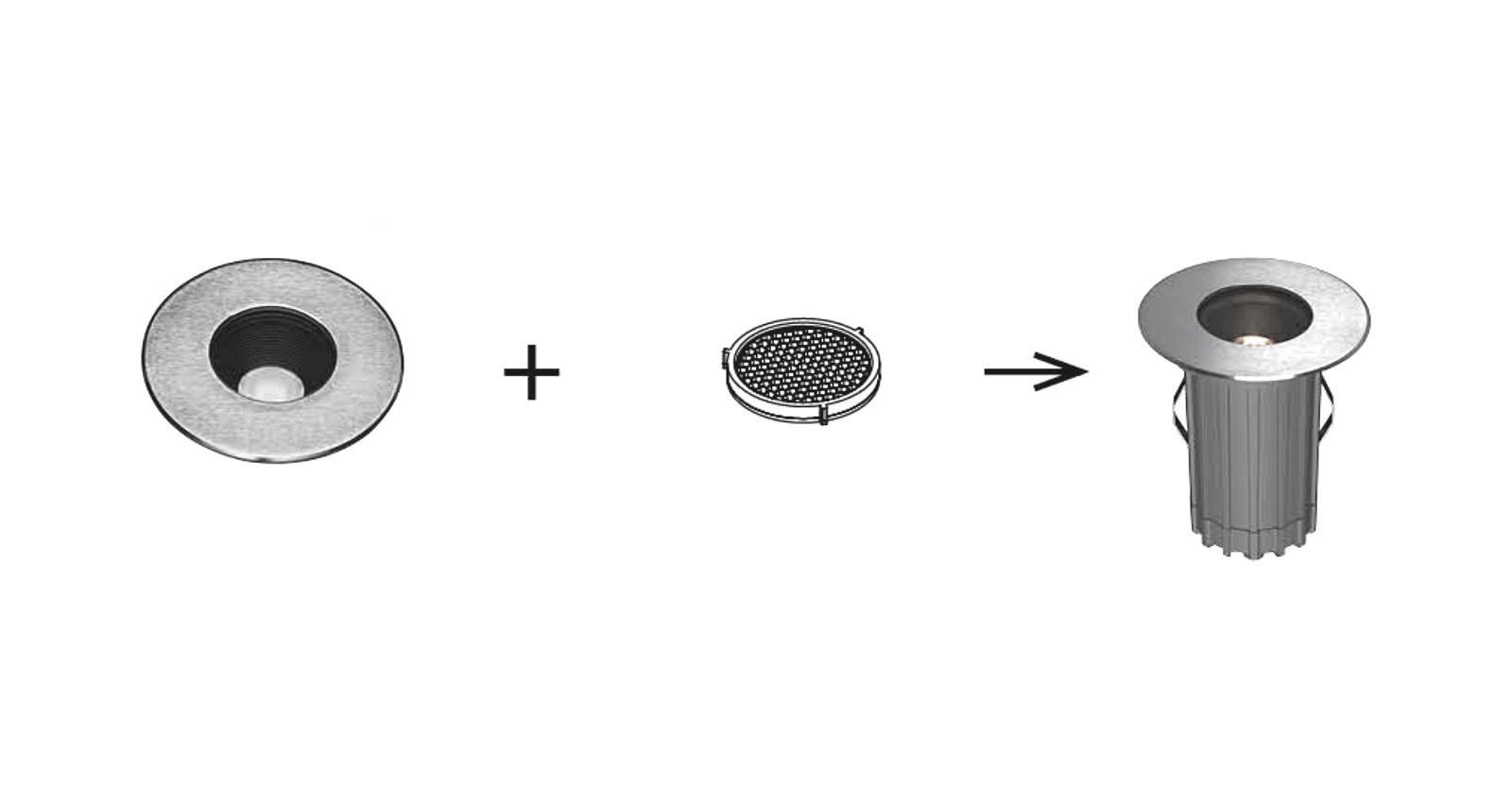

- optional honeycomb louvre
- 1195kg load capacity
![[icon]](filestore/icontemplates/000162.png?1713490872)
![[icon]](filestore/icontemplates/000172.png?1713490872)
![[icon]](filestore/icontemplates/000046.png?1713490872)
![[icon]](filestore/icontemplates/000300.png?1713490872)
![[icon]](filestore/icontemplates/000048.png?1713490872)
![[icon]](filestore/icontemplates/000009.png?1713490872)
![[icon]](filestore/icontemplates/000015.png?1713490872)
![[icon]](filestore/icontemplates/000051.png?1713490872)
![[icon]](filestore/icontemplates/000021.png?1713490872)
![[icon]](filestore/icontemplates/000052.png?1713490872)
![[product thumbnail]](filestore/product_captionimg/000206.jpg?1713490872)
![[product thumbnail]](filestore/product_captionimg/000189.jpg?1713490872)
![[product thumbnail]](filestore/product_captionimg/000194.jpg?1713490872)
![[product thumbnail]](filestore/product_captionimg/000195.jpg?1713490872)
Deep 10

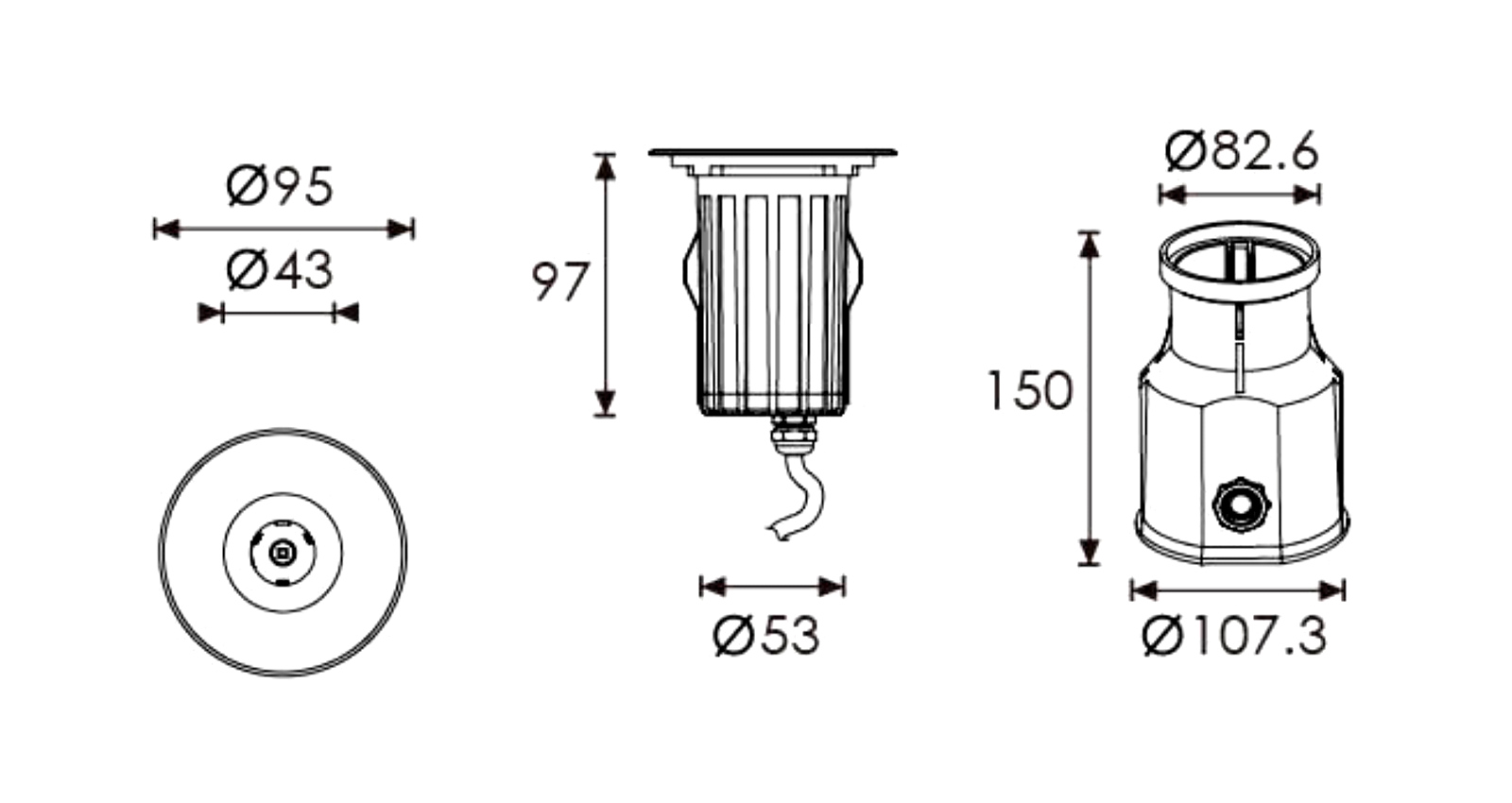

![[dimension drawing option]](filestore/product_dimensionsimg/000205/DP10-DIM-01.jpg?1713490872)
Deep 10
Deep 10

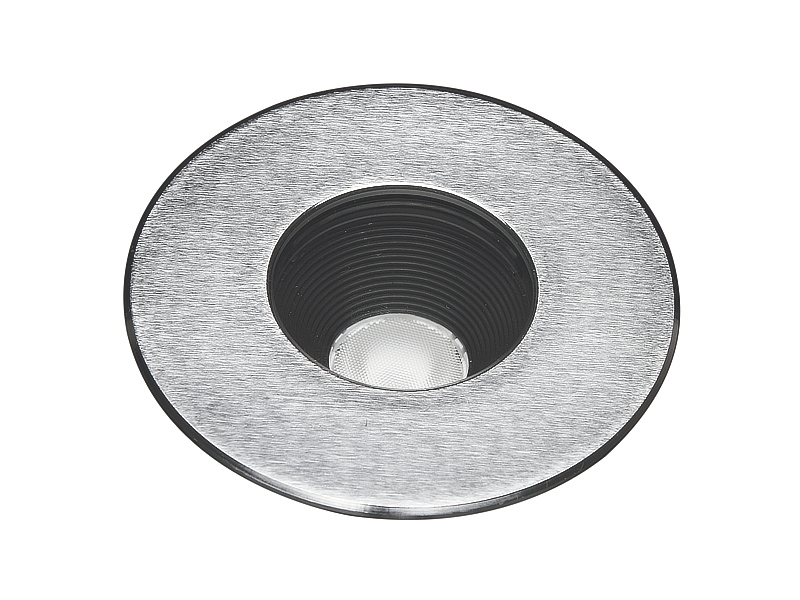

![[colour option]](filestore/colour_options/000205/DP10-SS.jpg?1713490872)
