Inflor 17 Asymmetric

Inflor 17 Asymmetric

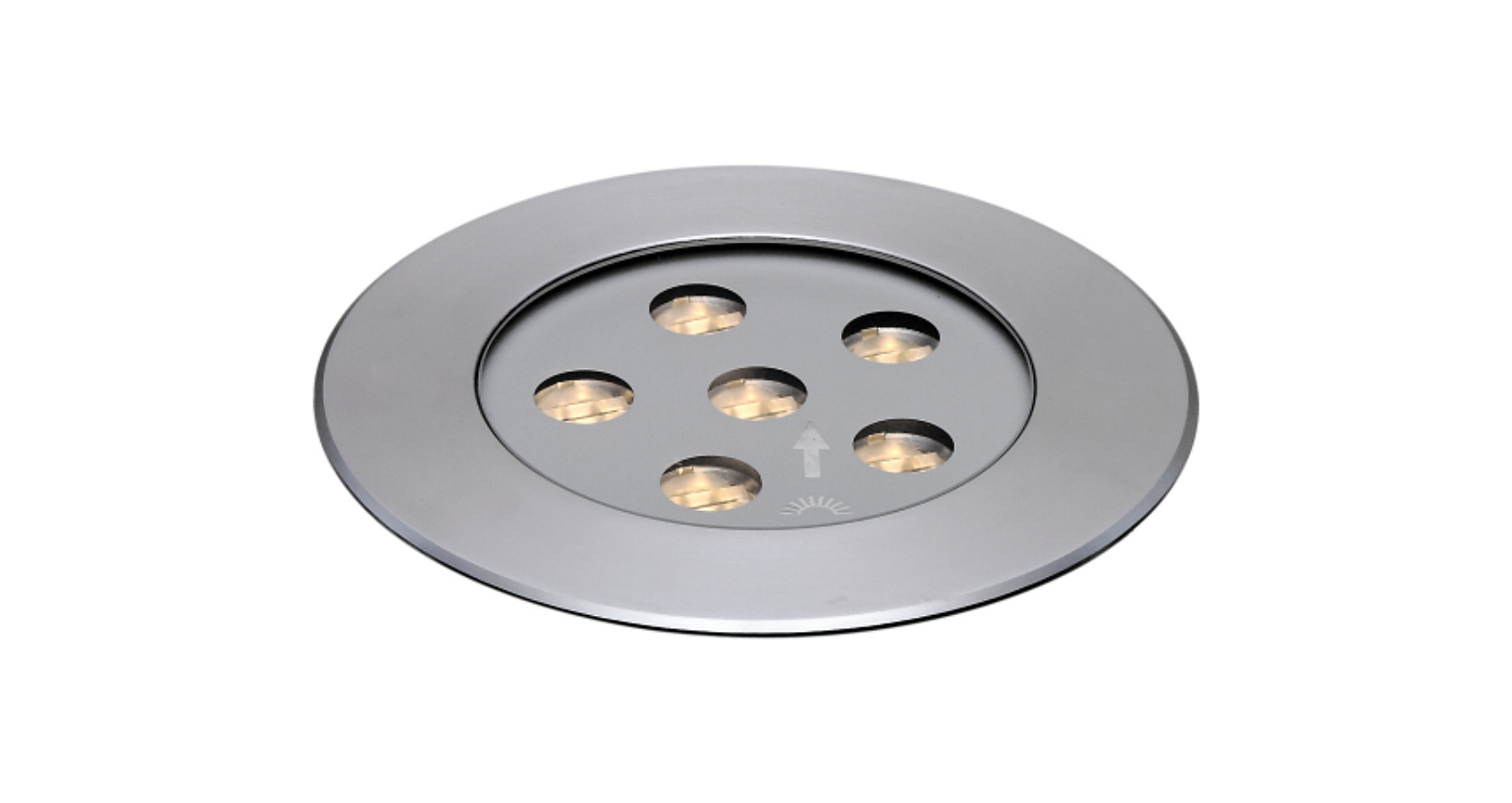

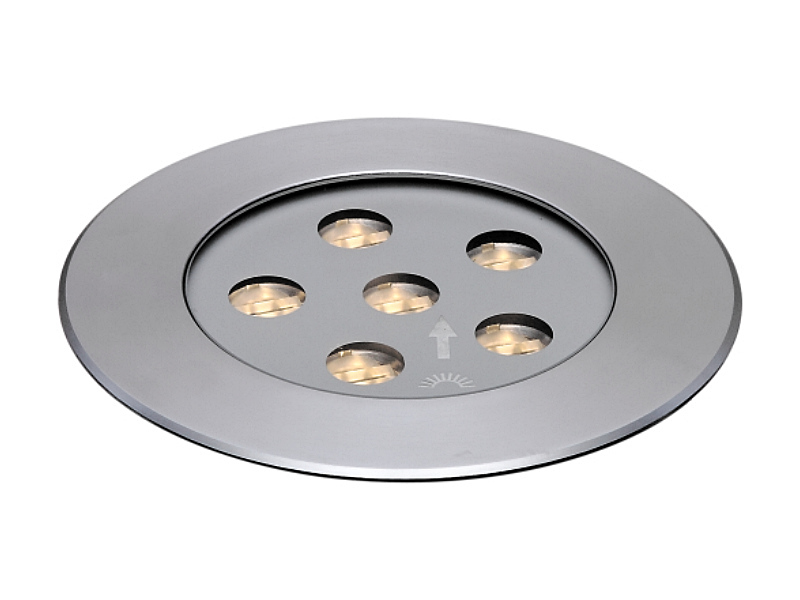

In-floor IP67 shallow luminaire with asymmetric light distribution, ideal for use in wooden floors and decking. 38mm recess depth allows installation into restricted height voids. Hard chrome plated stainless steel 316 bezel fitted with 8mm tempered glass and powder coated die-cast aluminium body gives 3370kg load capacity and IK08 rating. Complete with pre-wired remote control gear.

  • up to 898 lumen output
  • IP67 rating
  • asymmetric light distribution

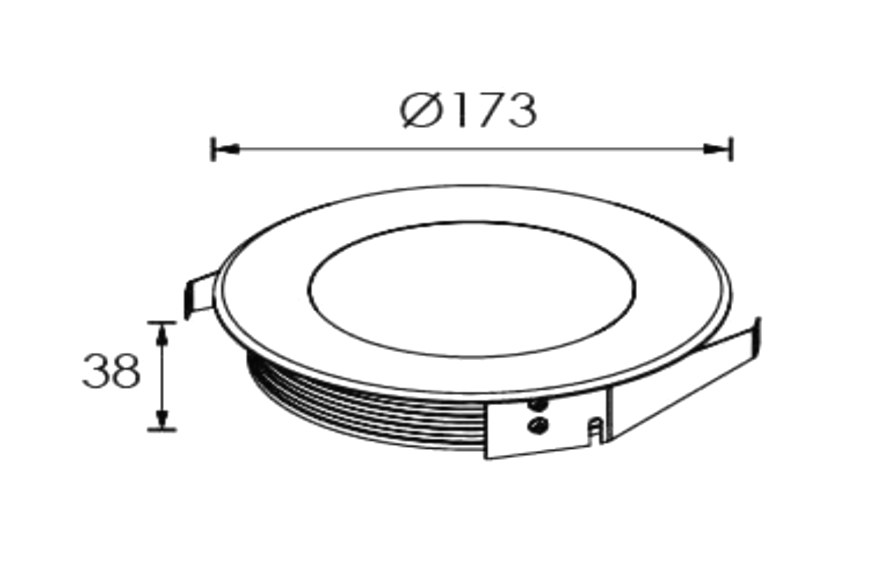

  • 38mm recess depth
  • Stainless steel 316 bezel
  • retaining springs for floor, deck or ceiling mount
[icon]
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]

Inflor 17 Asymmetric

Inflor 17 Asymmetric

Please select a finish combination option

Finish

[colour option]

Inflor 17 Asymmetric

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power
12W
CCT (°K)
Beam Angle
Finish
Options
Driver

Product Code:

IF17A-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
